LONCIN G200F User Manual

KOPPLINGSSCHEMAN
-36-

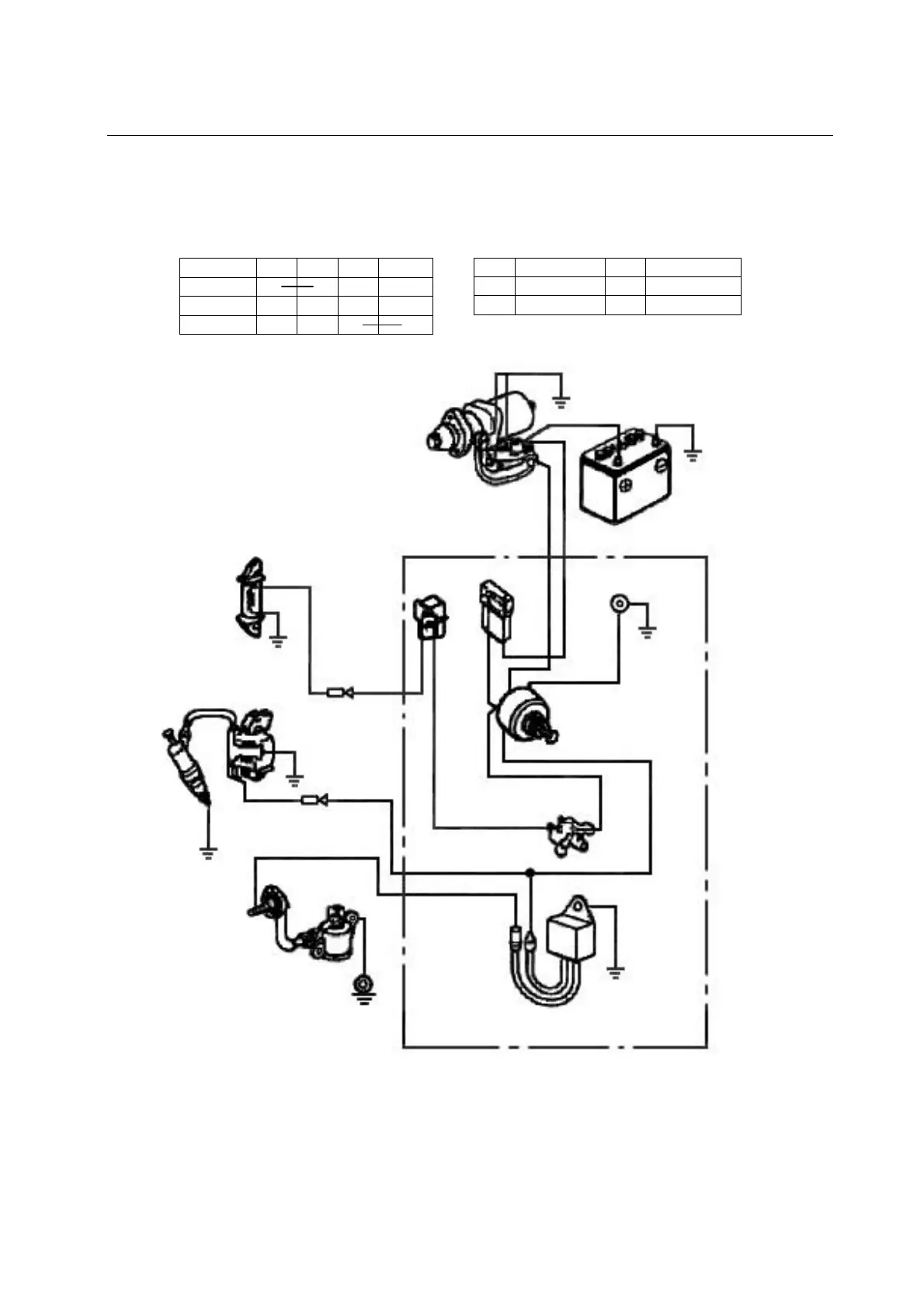

11. KOPPLINGSSCHEMAN
Bl SVART Br BRUN
Y GULA R RÖDA
W VITA G GRÖNA
MOTORN SLÄCKA
IG E ST BAT
AV O O
PÅ
START O O
KONTROLL
RECTIFIER
SÅDANA
ANTÄNDNING
SYRAKULT
UR
GNISTA
PLUG
OLJA
NIVÅ
OLJA
KRETSSK
YDD
MOTORN
OMKOPPLARE
MOTOR
N
BATTERI
AVGIFTSB
ELÄGGNIN
TÄND
W Bl/W
Bl
Bl
Bl
Y
W
W
Br
B
r
W
W
Y
Bl

LONCIN G200F Specifications

General

Displacement	196 cc
Compression Ratio	8.5:1
Fuel System	Carburetor
Starting System	Recoil start
Weight	16 kg
Fuel Type	Unleaded gasoline
Lubrication System	Splash
Engine Type	Forced air-cooled, 4-stroke, OHV, single cylinder
Bore x Stroke	68 mm x 54 mm
Max Power	6.5 HP (4.8 kW) / 3600 rpm
Ignition System	Transistorized magneto ignition
Fuel Tank Capacity	3.6 L
Oil Capacity	0.6 L
