LONCIN G200F User Manual

CONTROLS
-3-

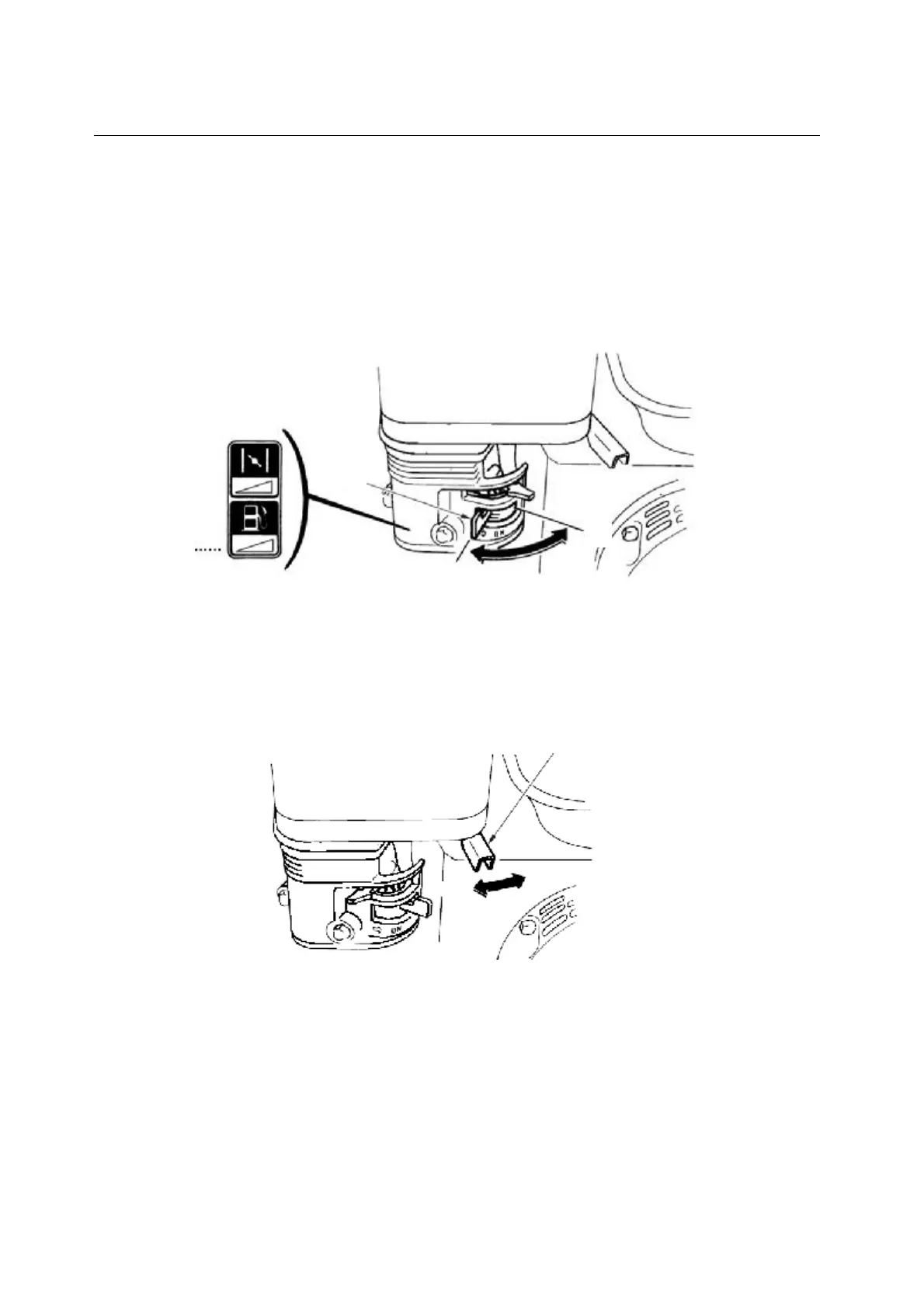

3. CONTROLS
Fuel Valve Lever
The fuel valve opens and closes the passage between the fuel tank and the carburetor.
The fuel valve lever must be in the ON position for the engine to run.
When the engine is not in use, leave the fuel valve lever in the OFF position to prevent
carburetor flooding and to reduce the possibility of fuel leakage.
Throttle Lever
The throttle lever controls engine THROTTLE LEVER speed.
Moving the throttle lever in the directions shown makes the engine run faster or slower.
Engine Switch
The engine switch enables and disables the ignition system.
The engine switch must be in the ON position for the engine to run.
Turning the engine switch to the OFF position stops the engine.
OFF
FUEL
VALVE
LEVER
OFF
ON
THROTTLE
LEVER
FAST
SLOW

LONCIN G200F Specifications

General

Displacement	196 cc
Compression Ratio	8.5:1
Fuel System	Carburetor
Starting System	Recoil start
Weight	16 kg
Fuel Type	Unleaded gasoline
Lubrication System	Splash
Engine Type	Forced air-cooled, 4-stroke, OHV, single cylinder
Bore x Stroke	68 mm x 54 mm
Max Power	6.5 HP (4.8 kW) / 3600 rpm
Ignition System	Transistorized magneto ignition
Fuel Tank Capacity	3.6 L
Oil Capacity	0.6 L
