LONCIN G200F User Manual

TECHNICAL & CONSUMER INFORMATION
-27-
Remote Control Linkage

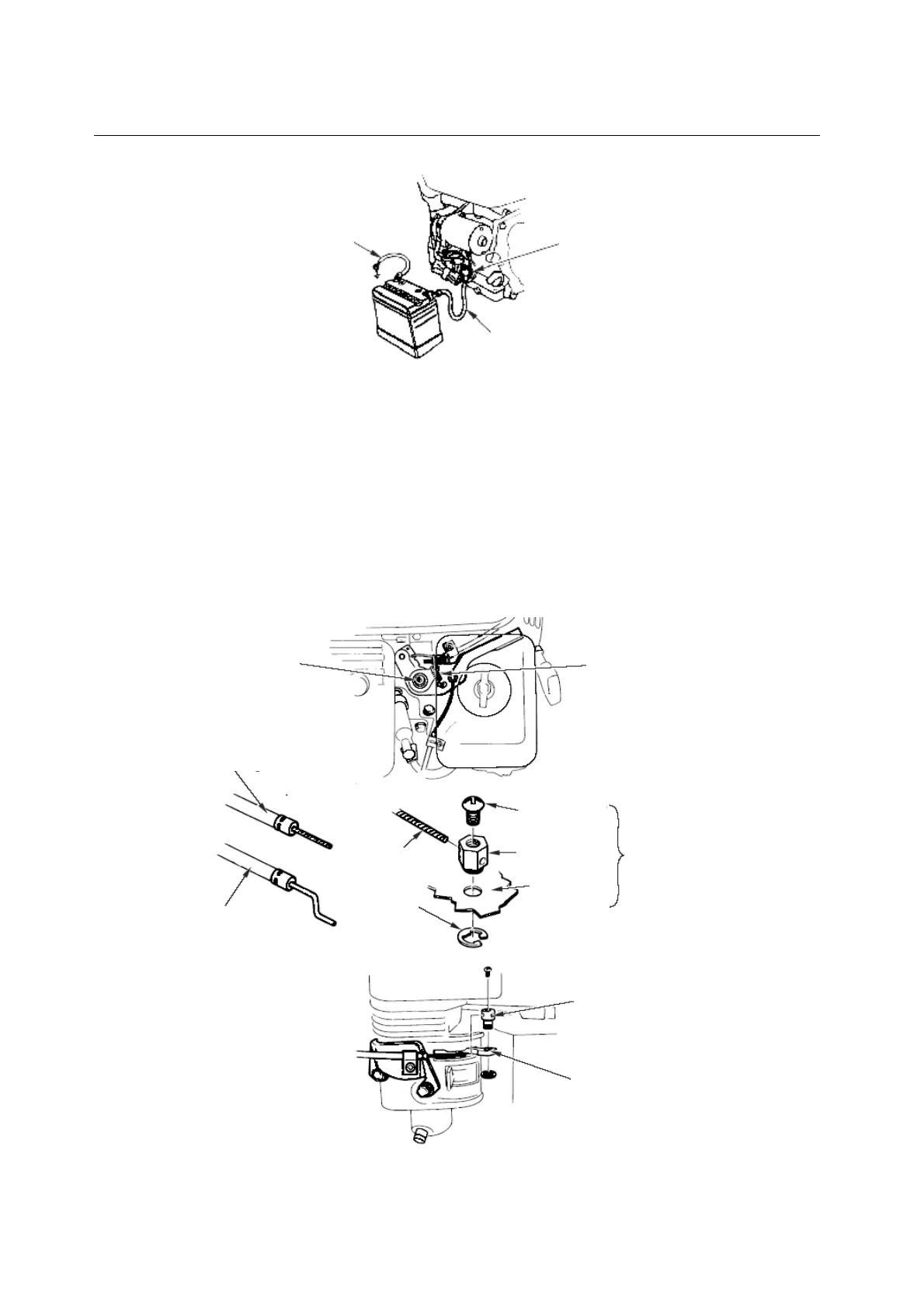

The throttle and choke control levers are provided with holes for optional cable attachment.
The following illustrations show installation examples for a solid wire cable and for a
flexible, braided wire cable. If using a flexible, braided wire cable, add a return spring as
shown.
It is necessary to loosen the throttle lever friction nut when operating the throttle with a
remotely-mounted control.
G120F, G160/G200F(D), G160/G200F(D)-B, G160/G200F(D)-C:
STARTER
SOLENOID
POSITIVE(+) BATTERY CABLE
NEGATIVE(-)
BATTERY CABLE
RETURN SPRING
REMOTE THROTTLE LINKAGE
REMOTE CHOKE LINKAGE
THROTTLE LEVER
PIVOT NUT
Flexible wire core
mounti
ng
5 mm
CIRCLIP
WIRE
Solid wire core
mounti
ng
4mm SCREW
WIRE HOLDER
THROTTLE
LEVER
OPTIONAL
WIRE HOLDER
CHOKE LEVER

LONCIN G200F Specifications

General

Displacement	196 cc
Compression Ratio	8.5:1
Fuel System	Carburetor
Starting System	Recoil start
Weight	16 kg
Fuel Type	Unleaded gasoline
Lubrication System	Splash
Engine Type	Forced air-cooled, 4-stroke, OHV, single cylinder
Bore x Stroke	68 mm x 54 mm
Max Power	6.5 HP (4.8 kW) / 3600 rpm
Ignition System	Transistorized magneto ignition
Fuel Tank Capacity	3.6 L
Oil Capacity	0.6 L
