160/200/160P/200P AC/DC Series Machine
www.longevity-inc.com 15
Connectors:
GROUND CLAMP DIN (+): The ground clamp is normally connected to this terminal. You can use reverse
polarity in stick mode by switching the ground clamp and stick holder.
TORCH CONNECTOR DIN (-): (TIG, Stick or Plasma Cutter) is normally connected to this terminal, but the
+ and - connectors can be reversed for DCEP (Direct Current Electrode Positive +) stick welding.
TORCH CONTROL/PEDAL CONNECTOR: The Torch connector and the Foot pedal connector both attach
to receptacle.
PLASMA TORCH PILOT ARC CONNECTOR: The plasma torch's pilot arc wire connects here.
GAS OUTLET: The TIG and plasma torch's gas/air line connect to this receptacle.

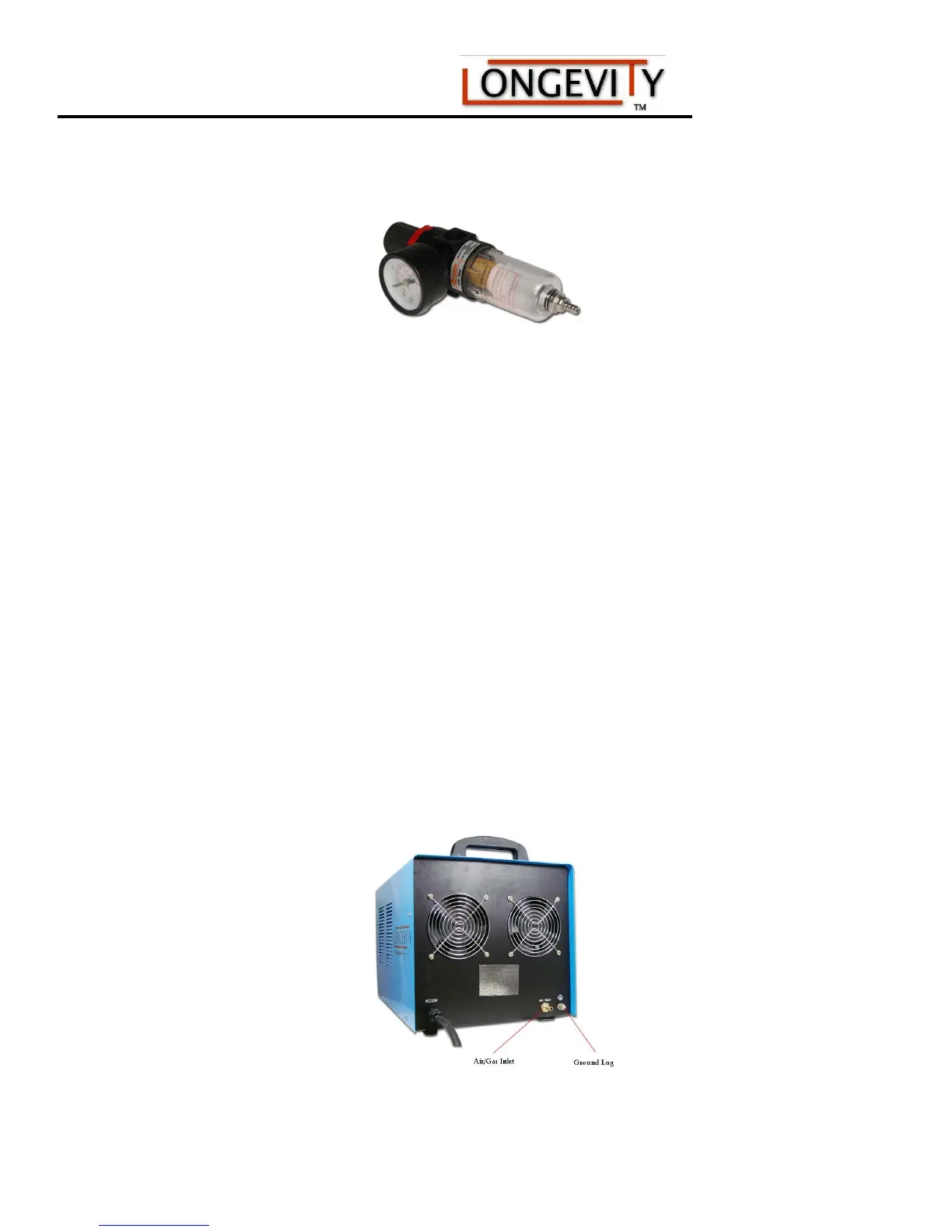

GAS INLET: (back of unit) Compressed air for the plasma torch and Argon gas for TIG welding are fed into
the machine using this barbed hose receptacle.
