Plasma Cutter: Plasma Cutter Torch Assembly
The plasma cutter torch handle is made of fire and heat resistant materials. Avoid dropping the torch or striking

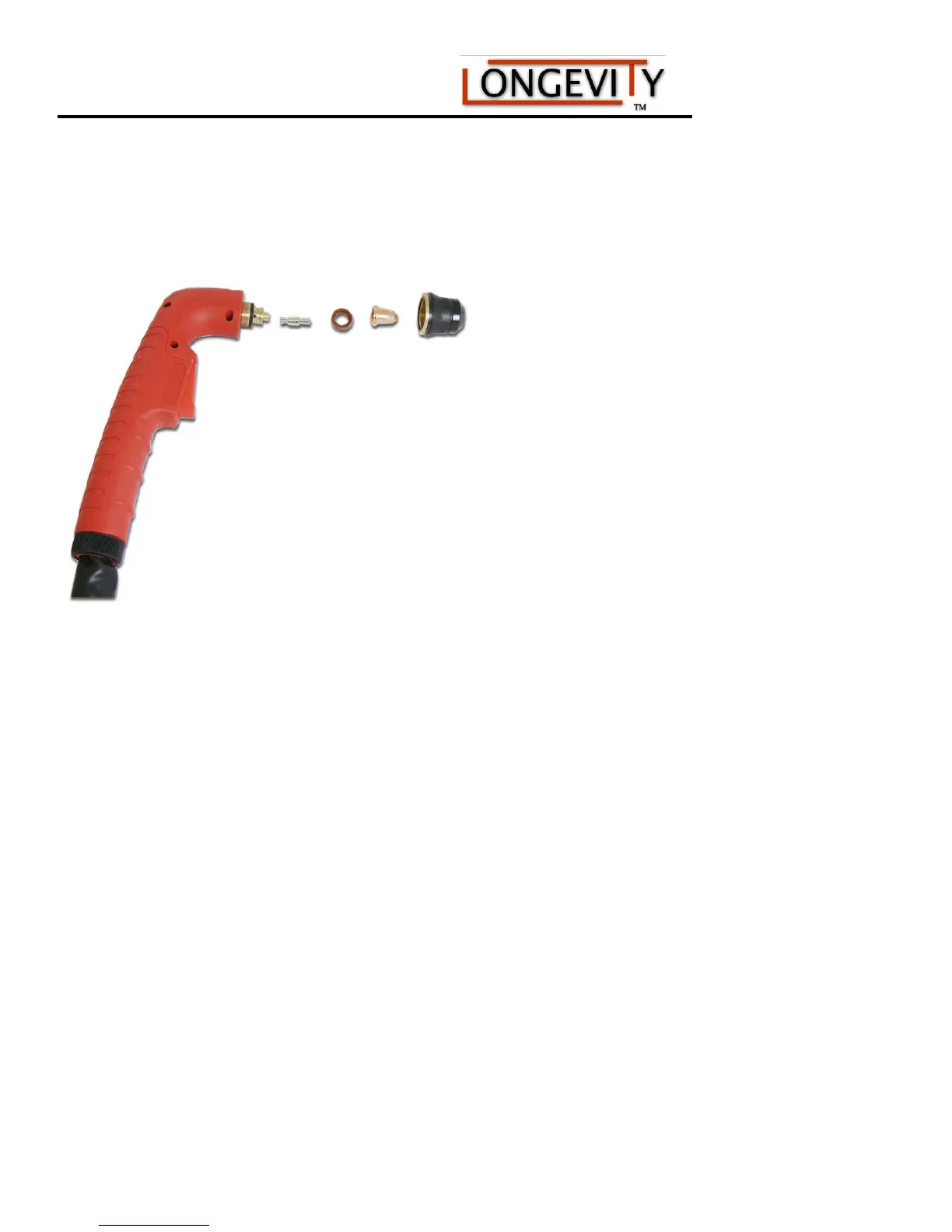

anything with it. Assemble the consumables as pictured above, and described below.
1. Insert the electrode. Tighten it with pliers.
2. Seat the swirl ring on the electrode.
3. Place the copper tip on the ring, ensuring that is seated flat.
4. Place the shield cup over the tip and secure. Secure all parts into place by turning the ceramic cup
clockwise until it is snug. Do not over tighten.
