160/200/160P/200P AC/DC Series Machine
www.longevity-inc.com 29

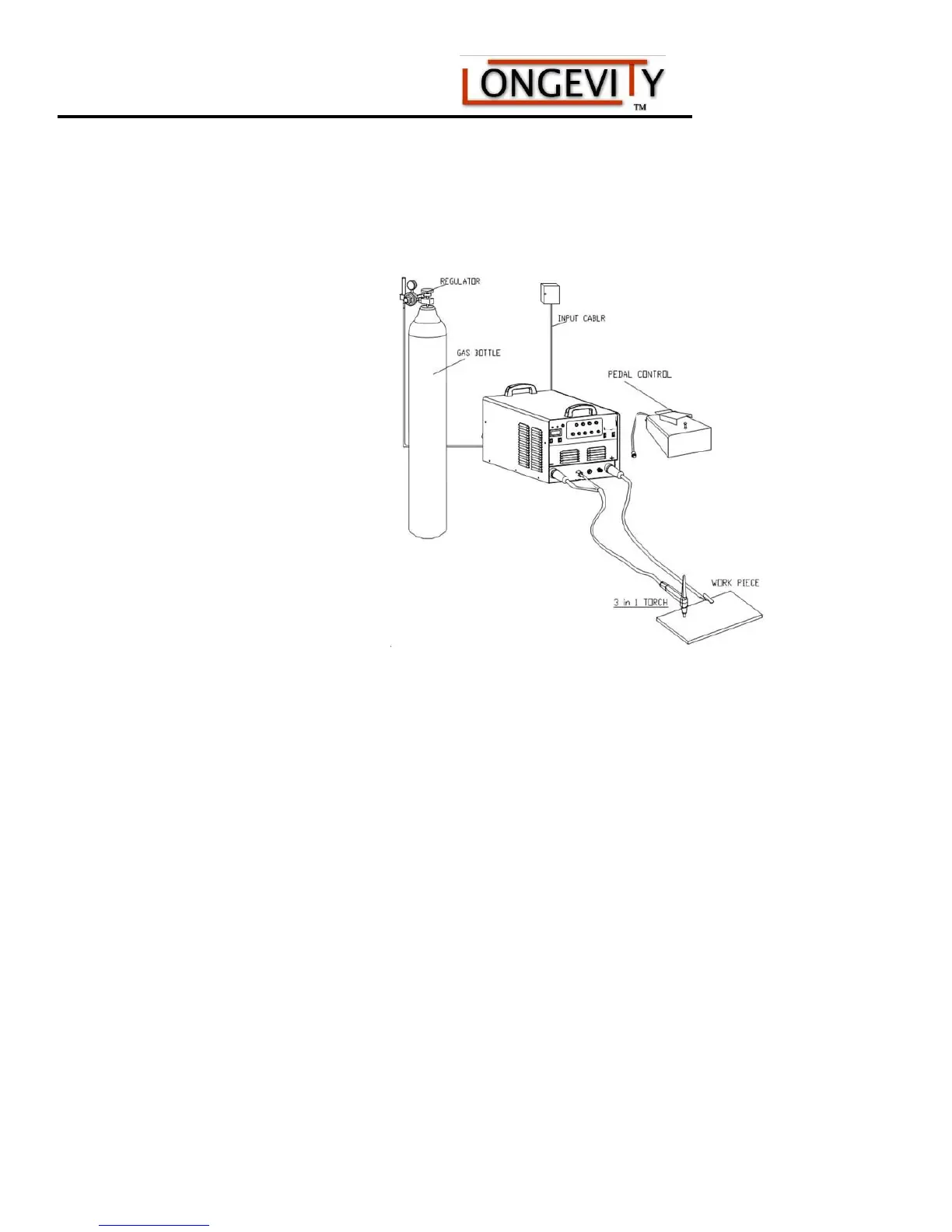

Basic Installation for TIG Function:
1. Plug the argon regulator to the bottle.
2. Plug the torch into the unit on the left side as pictured. Either plug the pedal or the remote 7 pin
connector to the machine. You cannot plug both.
3. The ground clamps is plugged on the right side (+) and attaches on the workpiece.
4. Plug the Power Cord to the wall.
