MV5-AR USER MANUAL
1. Sensor Overview

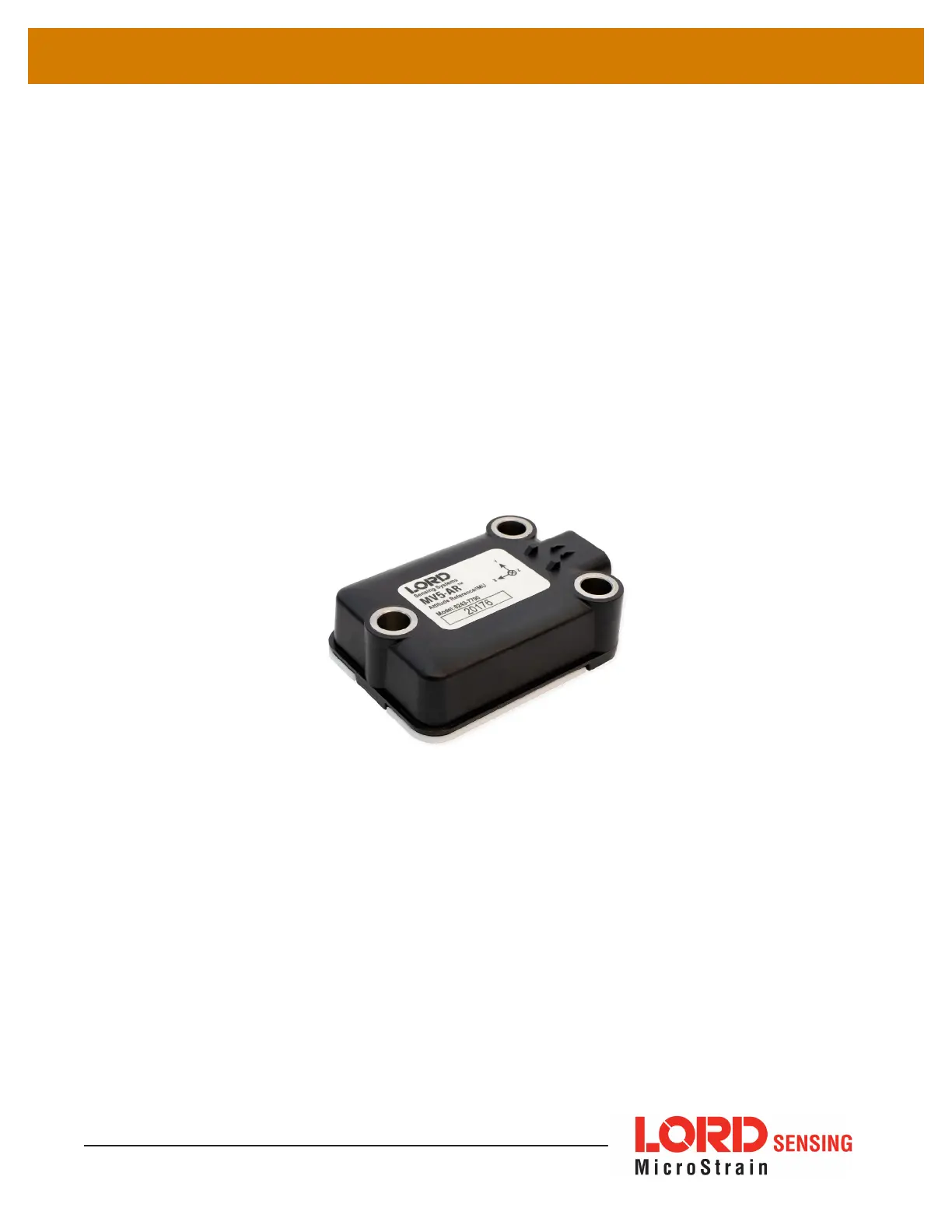

The LORD Sensing MV5-AR brings a new level of precision to measurements of dynamic
inclination, acceleration, and angular rate in challenging environments such as those
encountered in heavy-duty construction, off-highway, agriculture, and trucking industries.
The MV5-AR utilizes the power of a sophisticated Auto-Adaptive Extended Kalman Filter
(EKF) to remove errors associated with vibration, sudden linear motions, and quake, resulting
in a true reading of inclination under all conditions. The wide bandwidth, high-range, low noise
20g accelerometer and 1000dps gyroscope allow accurate IMU measurements of the most
extreme events, making it ideal for monitoring shock and vibration fatigue.
LORD Sensing's state-of-the-art temperature compensation and calibration assures error-free
performance over the full operational temperature range.
The compact size, wide 4.5 to 36 V power range, IP68 / IP69K rating, and CAN J1939 or
CANopen communications interface options make the MV5-AR a single part solution for a full
range of vehicle sizes and applications.
