Lorell Value Series - Step 2: Install Drawer Slides and Locks

LLR60132/60134_080604 Page 10 of 33

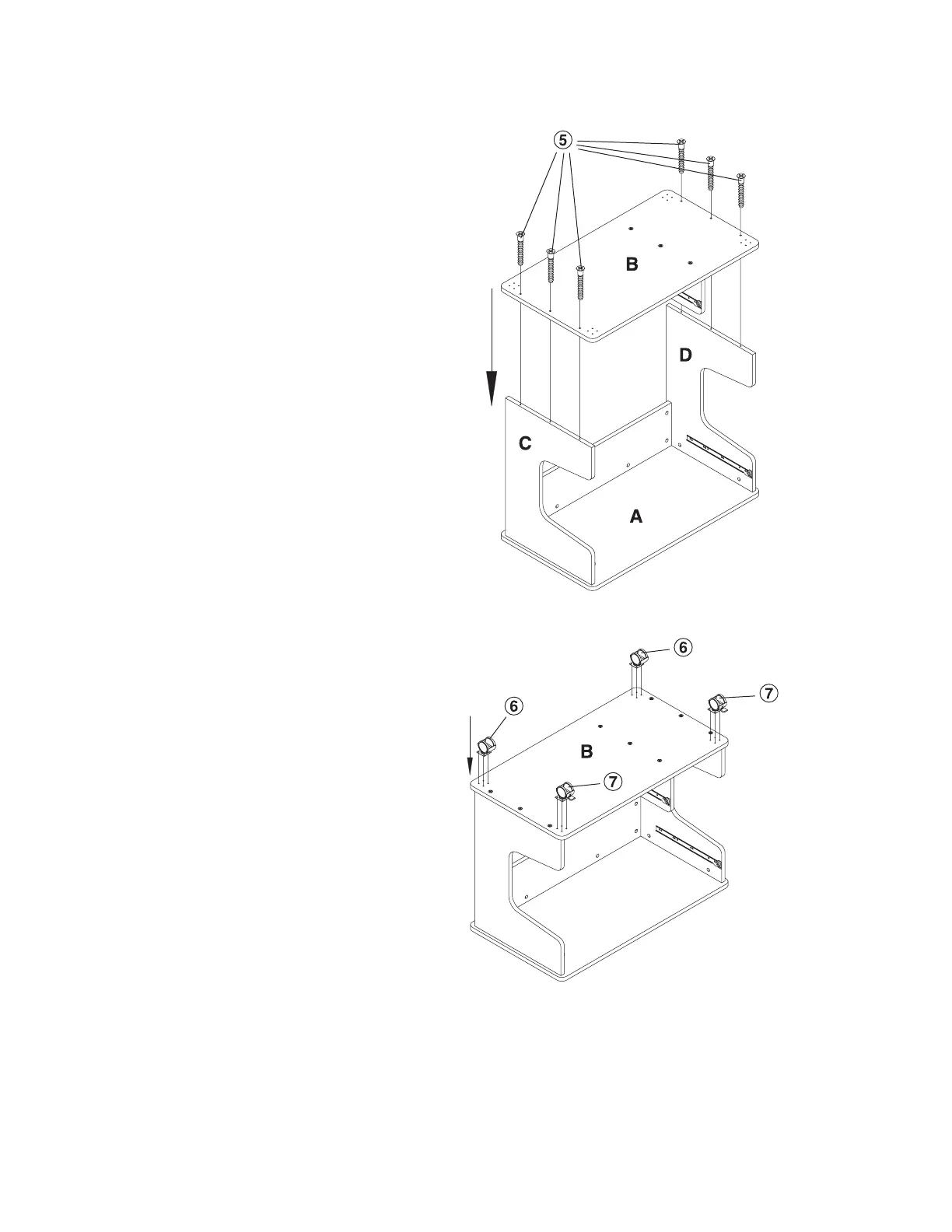

Step 10
With the Table Panel (A) laying on
a non-abrasive surface and using a
Phillips Screw Driver and 6 each
Long Screw (5) attach the Bottom
Panel (B) to the Left Side Panel (C)
and Right Side Panel (D).
Step 11
Using a Phillips Screw Driver and 8
each 4X14 Screw (8) attach to the
front of the unit 2 each Locking
Caster (7).
Using a Phillips Screw Driver and 8
each 4X14 Screw (8) attach to the
rear of the unit 2 each Caster (6).
Bottom panel
Right side panel
Table panel
Left side panel
Bottom panel
