Lorell Value Series User Manual

LLR44308/44309_081104
Page 10 of 63

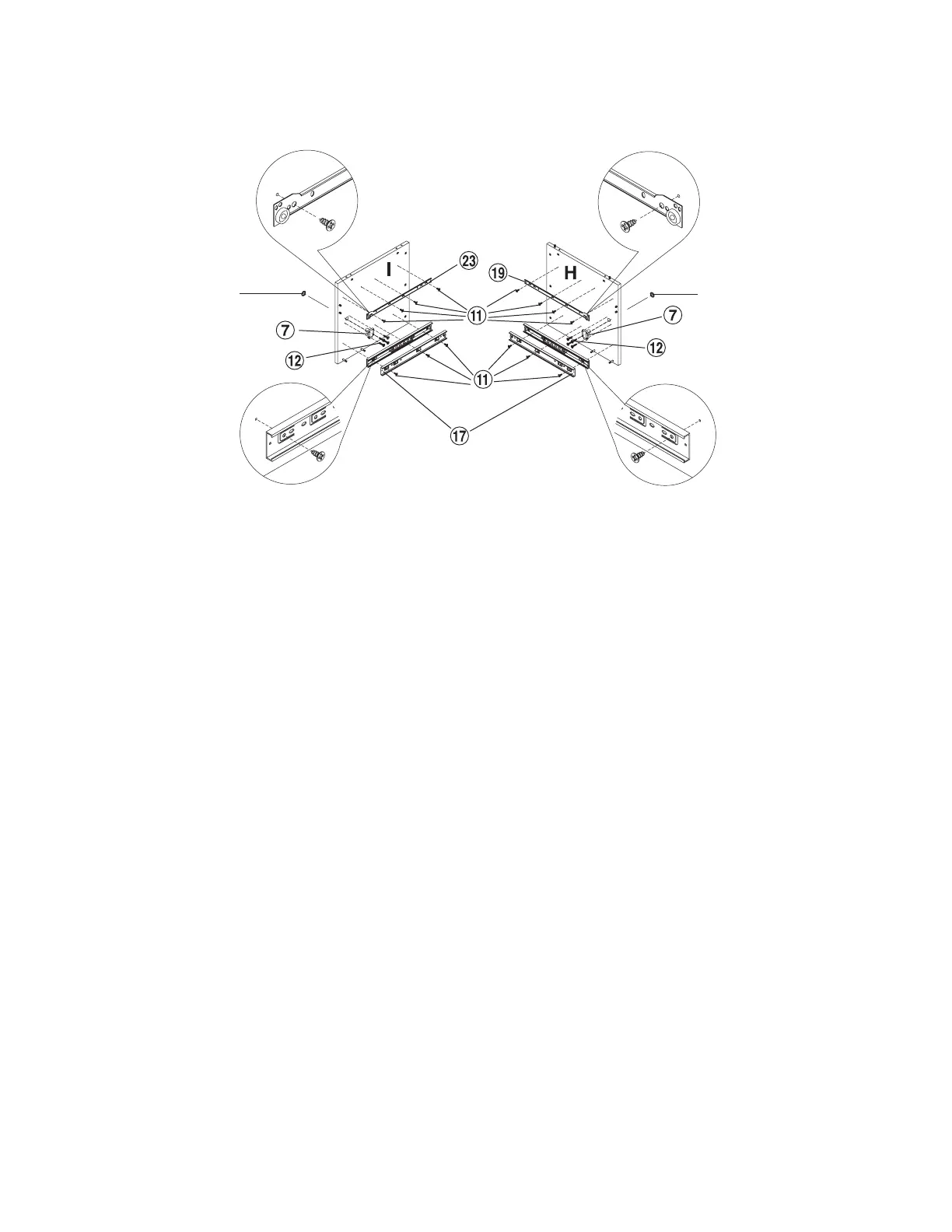

Step 2
On the Left Mid Panel (H) install the File Drawer Side Suspension (17) with 3 each 4X9.5
Screw (11) in the position shown on the drawing. NOTE INSET IMAGE SHOWING
PROPER HOLE IN SLIDE TO USE.
On the Left Mid Panel (H) install the Box Drawer Slide Right (19) with 4 each 4X9.5 Screw
(11).
With 4 each 3.5X18 Screw (12) install 1 each Lock (7) as shown on the drawing. Insert the "O"
ring as shown on the opposite side of the panel.
On the Return Mid Panel (I) install the File Drawer Side Suspension (17) with 3 each 4X9.5
Screw (11) in the position shown on the drawing. NOTE INSET IMAGE SHOWING
PROPER HOLE IN SLIDE TO USE.
On the Return Mid Panel (I) install the Box Drawer Left (23) with 4 each 4X9.5 Screw (11).
With 4 each 3.5X18 Screw (12) install 1 each Lock (7) as shown on the drawig. Insert the "O"
ring as shown on the opposite side of the panel.
Return mid
panel
Left mid
panel
“O” Ring
“O” Ring
