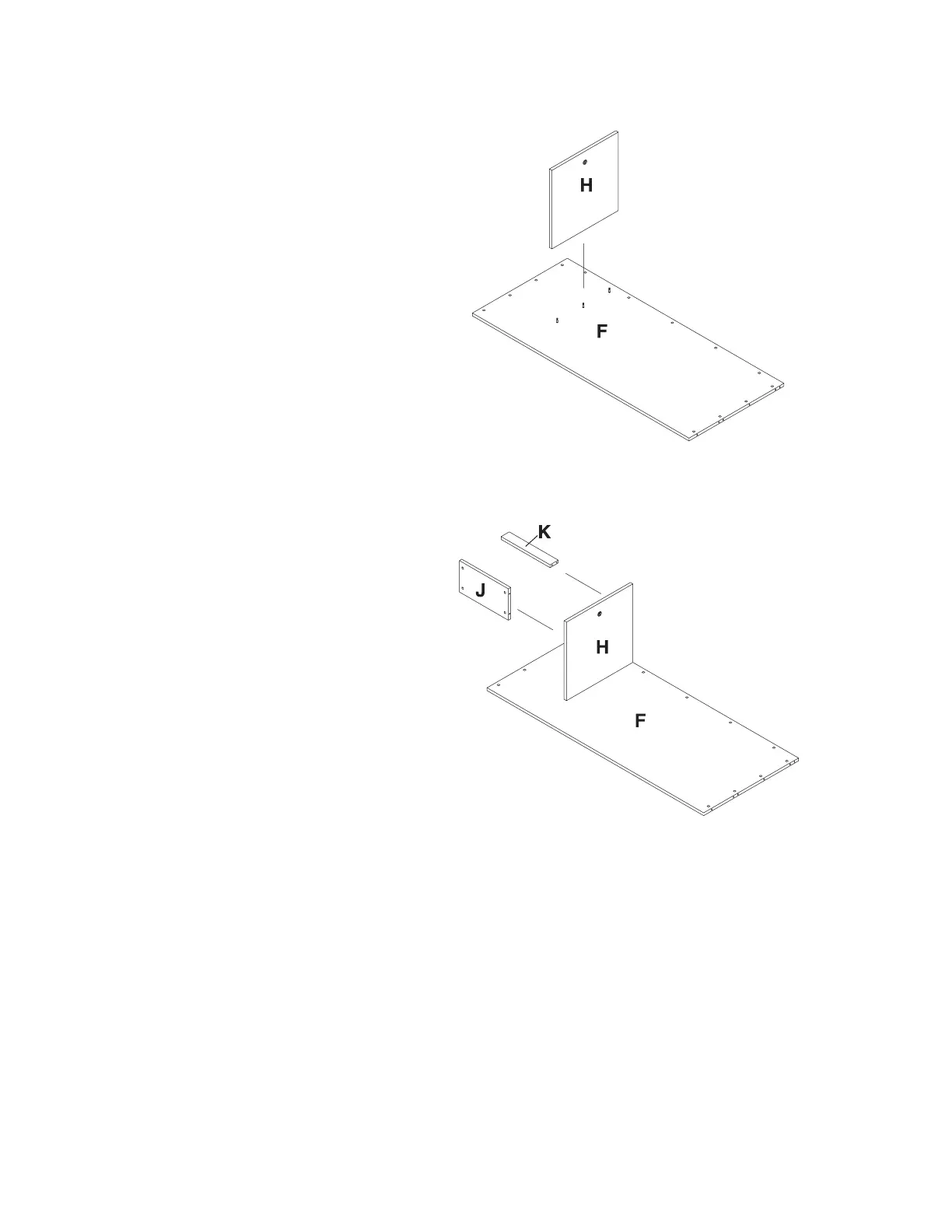

Step 4
With the Large Back Panel (F)
laying on a non-abrasive surface
attach the Left Mid Panel (H). Make
sure that the Cam Screw (1)
properly engage with the Cam
Locks (2). With a Phillips Screw
Driver, rotate the cam locks 1/2 turn
clockwise until snug. DO NOT
OVERTIGHTEN
Step 5
Install 1 each Fixed Shelf (J) to the
Left Mid Panel (H) ensuring that the
Cam Screw (1) properly engage
with the Cam Lock (2). With a
Phillips Screw Driver rotate the cam
lock 1/2 turn clockwise until snug.
DO NOT OVERTIGHTEN
Install 1 each Support Panel (K)
onto the Left Mid Panel (H)
ensuring that the Wood Dowel (6)
properly seat.
Left mid panel
Back panel
Support panel
Fixed shelf
Left mid panel
Large back panel
To Next Page
