Lorell Value Series User Manual

LLR44308/44309_081104
Page 13 of 63

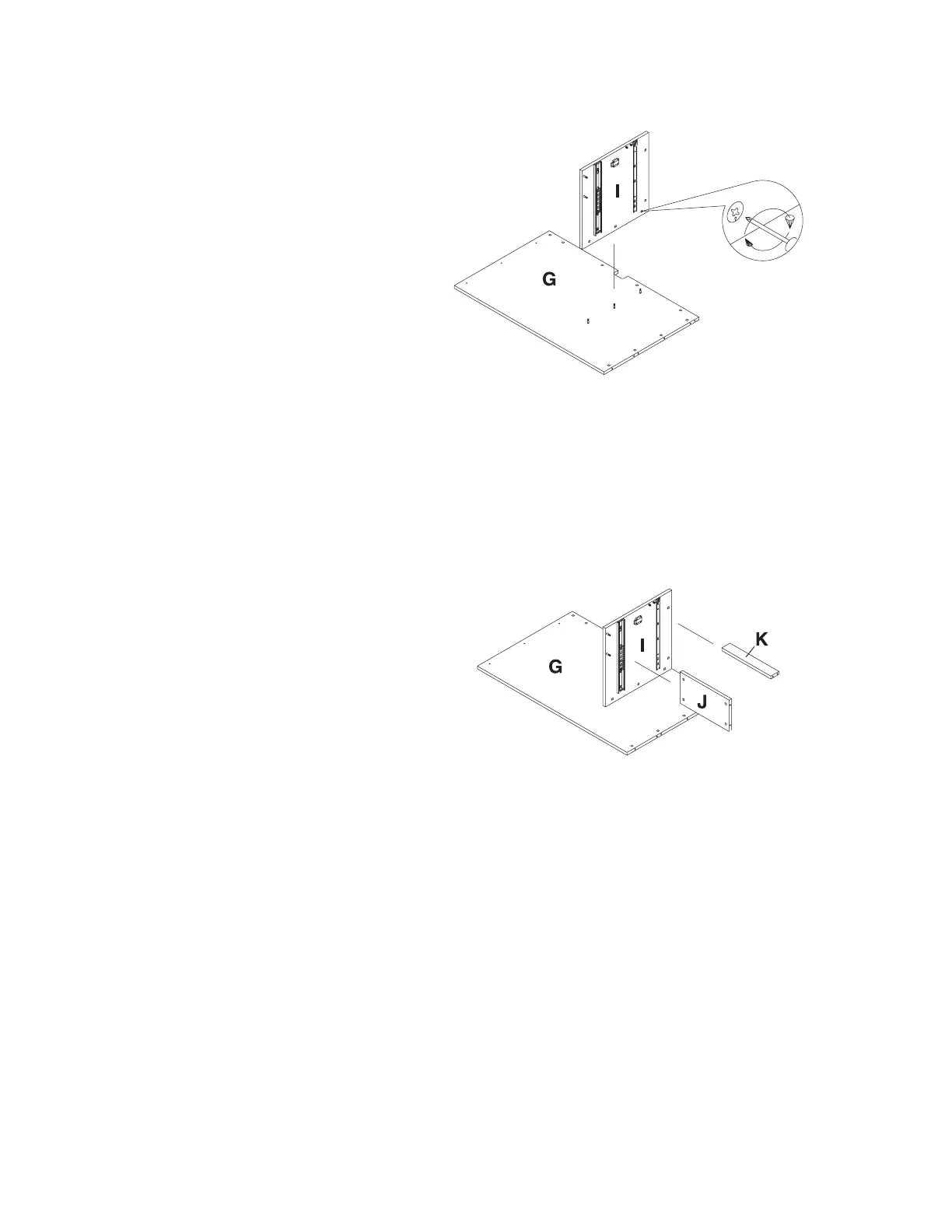

Step 6
With the Return Back Panel (G) on
a non-abrasive surface install the
Return Mid Panel (I) ensuring that
the Cam Screws (1) properly engage
the Cam Locks (2). With a Phillips
Screw Driver rotate the cam lock
1/2 turn clockwise until snug. DO
NOT OVERTIGHTEN
Step 7
Install 1 each Fixed Shelf (J) to the
Return Mid Panel (I) ensuring that
the Cam Screw (1) properly engage
with the Cam Lock (2). With a
Phillips Screw Driver rotate the cam
lock 1/2 turn clockwise until snug.
DO NOT OVERTIGHTEN
Install 1 each Support Panel (K)
onto the Return Mid Panel (I)
ensuring that the Wood Dowel (6)
properly seat.
Return mid panel
Return back panel
Support panel
Fixed shelf
Return back panel

Lorell Value Series Specifications

General

Brand	Lorell
Model	Value Series
Category	Indoor Furnishing
Language	English
