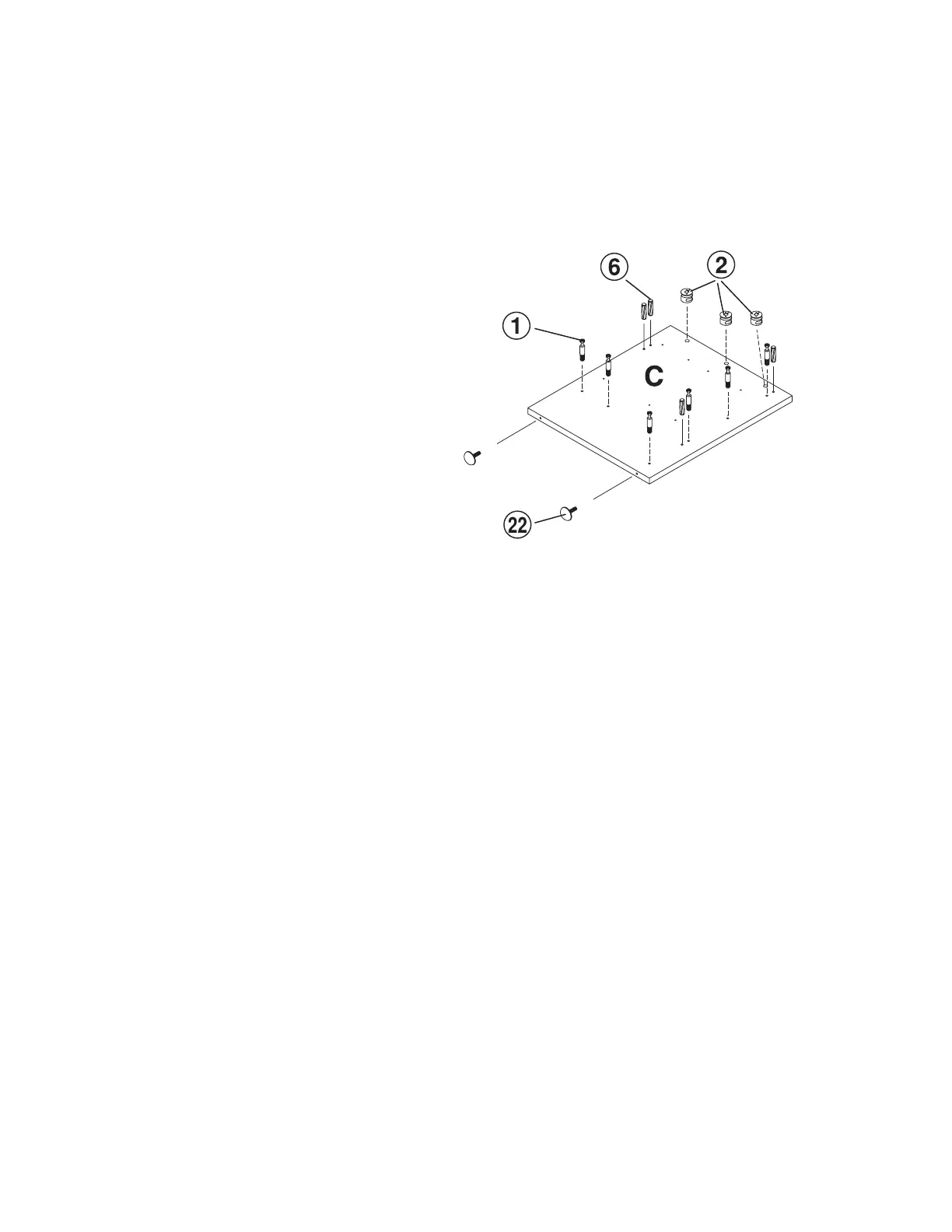

Step 10
With the Left Side Panel (C) laying
on a non-abrasive surface insert 2
each Wood Dowel (6) with a
Rubber Mallet in the position shown
on the drawing.
On the Left Side Panel (C) insert 4
each Cam Screw (1) in the position
shown on the drawing.
On the Left Side Panel (C) insert 3
each Cam Lock (2) in the position
shown on the drawing. When
inserting the cam lock ensure that
the arrow is facing toward the cam
screw entry.
Screw 2 each Adjustable Foot (22)
into the bottom of the panel as
shown on the drawing.
Left side panel
