Lorell Value Series - Step 11: Install Drawer Slides on Side Panels

LLR44308/44309_081104
Page 16 of 63
Step 11
On the Left Side Panel (C) install 1 each File Drawer Suspension with 3 each 4X9.5 Screw

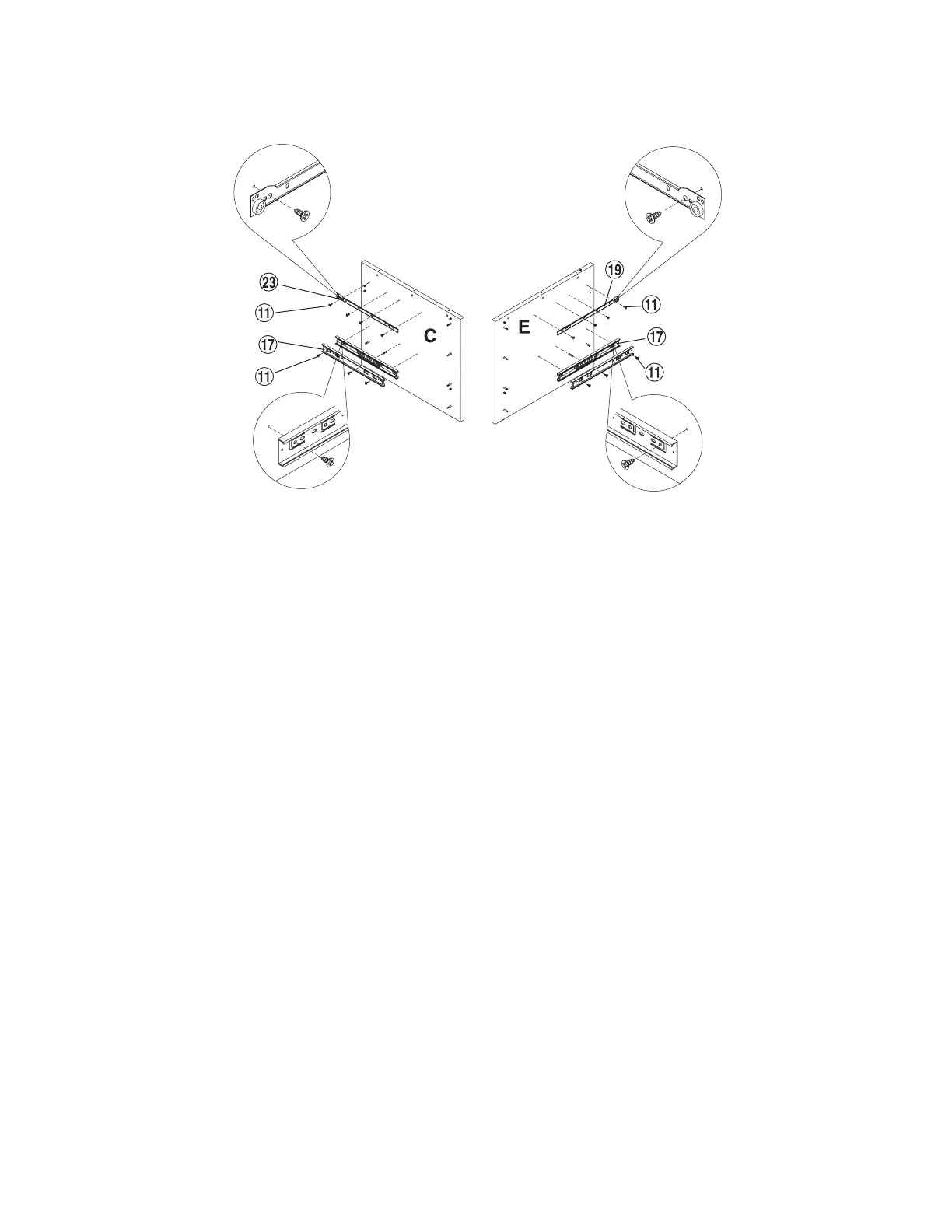

(11). Note on inset drawing proper placement of slide.
On the Left Side Panel (C) install the Box Drawer Slide Left (23) with 4 each 4X9.5 Screw.
Note on inset drawing proper placement of slide.
On the Return Side Panel (E) install 1 each File Drawer Suspension with 3 each 4X9.5 Screw
(11). Note on inset drawing proper placement of slide.
On the Return Side Panel (E) install the Box Drawer Slide Right (19) with 3 each 4X9.5 Screw
(11). Note on inset drawing proper placement of slide.
Left side panel
Return side panel
