Lorell Value Series User Manual

LLR44308/44309_081104
Page 17 of 63
Step 12

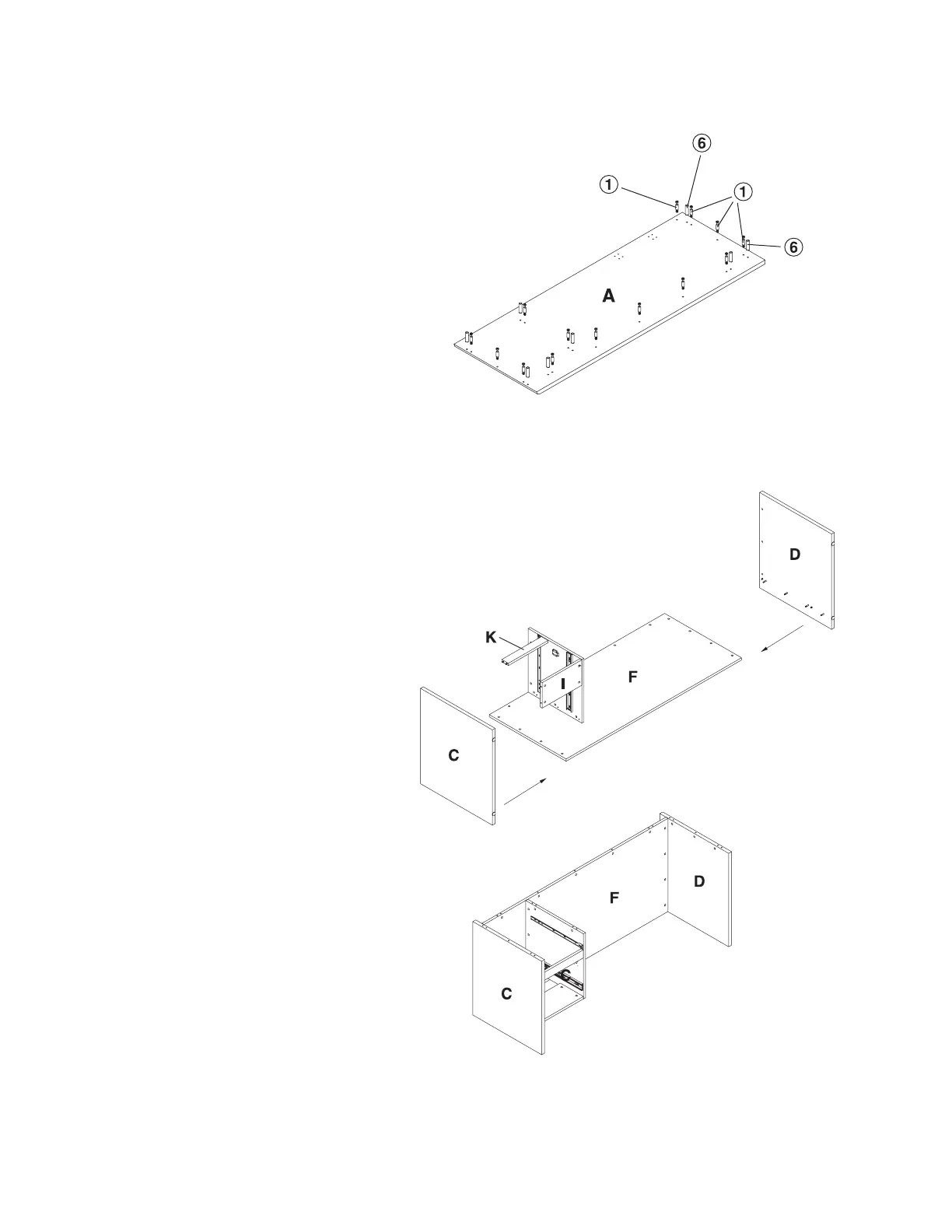

With the Large Top Panel (A) laying
on a non-abrasive surface install 8
each Wood Dowel (6) with a
Rubber Mallet in the position shown
on the drawing.
With a Phillips Screw Driver insert
14 each Cam Screw (1) in the
position shown on the drawing.
Step 13
Install the Left Side Panel (C) onto
the Large Back Panel (F), Fixed
Shelf (J) and Support Panel (K)
ensuring that the Cam Screws (1)
properly engage with the Cam
Locks (2). With a Phillips Screw
Driver rotate the cam lock 1/2 turn
clockwise until snug. DO NOT
OVERTIGHTEN
Install the Right Side Panel (D) onto
the Large Back Panel (F) ensuring
that the Cam Screws (1) properly
engage with the Cam Locks (2).
With a Phillips Screw Driver rotate
the cam lock 1/2 turn clockwise
until snug. DO NOT
OVERTIGHTEN
With the help of an assistant, stand
the unit to its upright position.
Large top panel
Right side panel
Large back panel
Support panel
Left side panel
Right side panel
Large back panel
Left side panel
