14
Assembling the brake on the warp beam

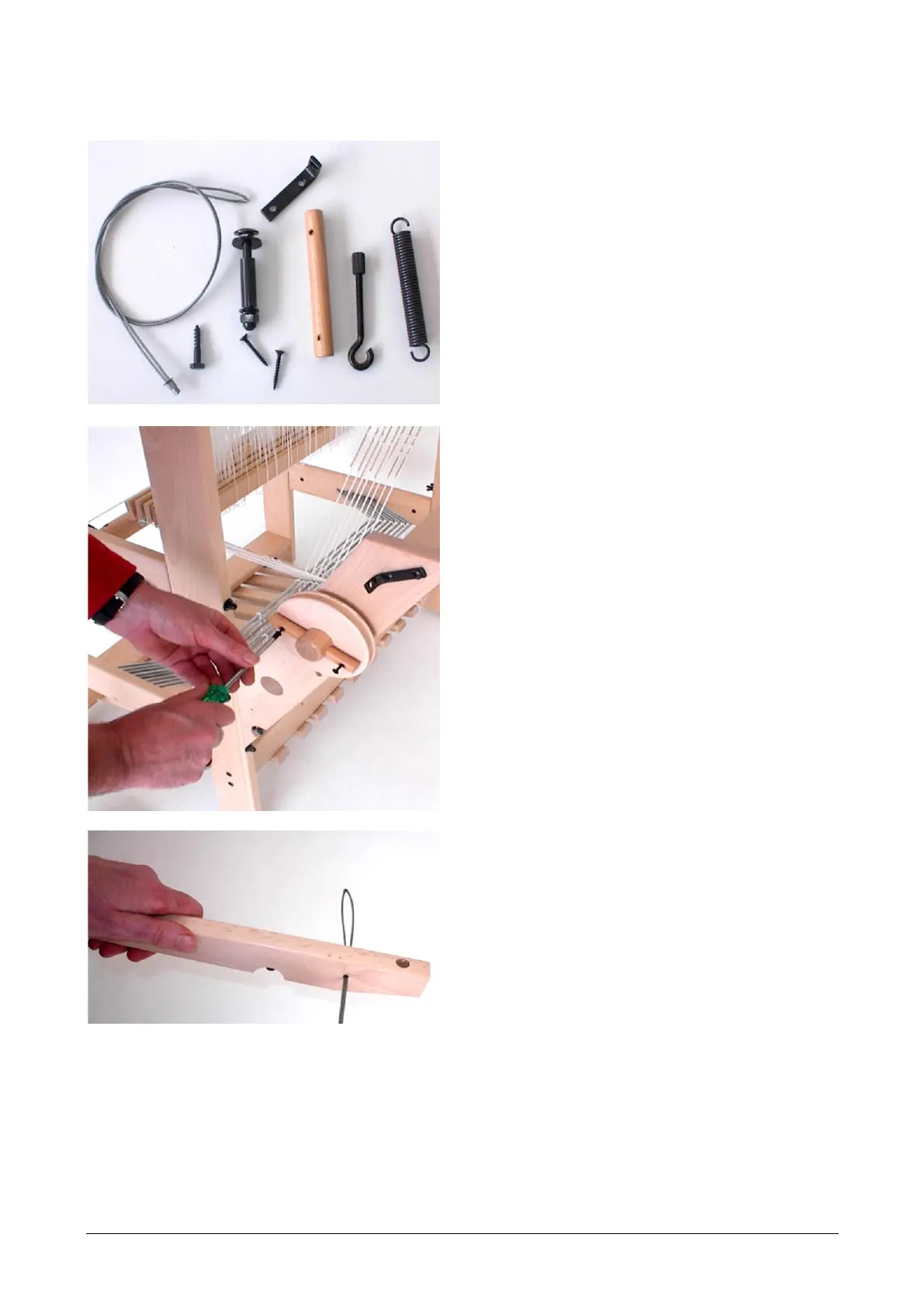

The hardware bag contains:
− 1 brake cable
− 1 carriage bolt m8x70 with large washer,
bushing 8-10x36, small washer and cap
nut
− 1 lag screw 6x30
− 2 screws 4x30
− 1 bracket (mounted in an earlier stage)
− 1 wooden dowel
− 1 screw eye m6 with knurled nut
− 1 spring
Slip the brake disc on the protruding end of the
warp beam.
Insert the wooden dowel into the hole of the
warp beam. Push and turn the dowel in a
position that the screw holes of the dowel and
the disc match each other. The countersunk
side of the holes should face the outside.
Join both parts with the 4x30 screws.
Insert the brake cable through the brake
handle. The picture shows from which side this
should be done.
