3
Instructions for assembly
We have assembled the castle section of the
David loom in the factory.

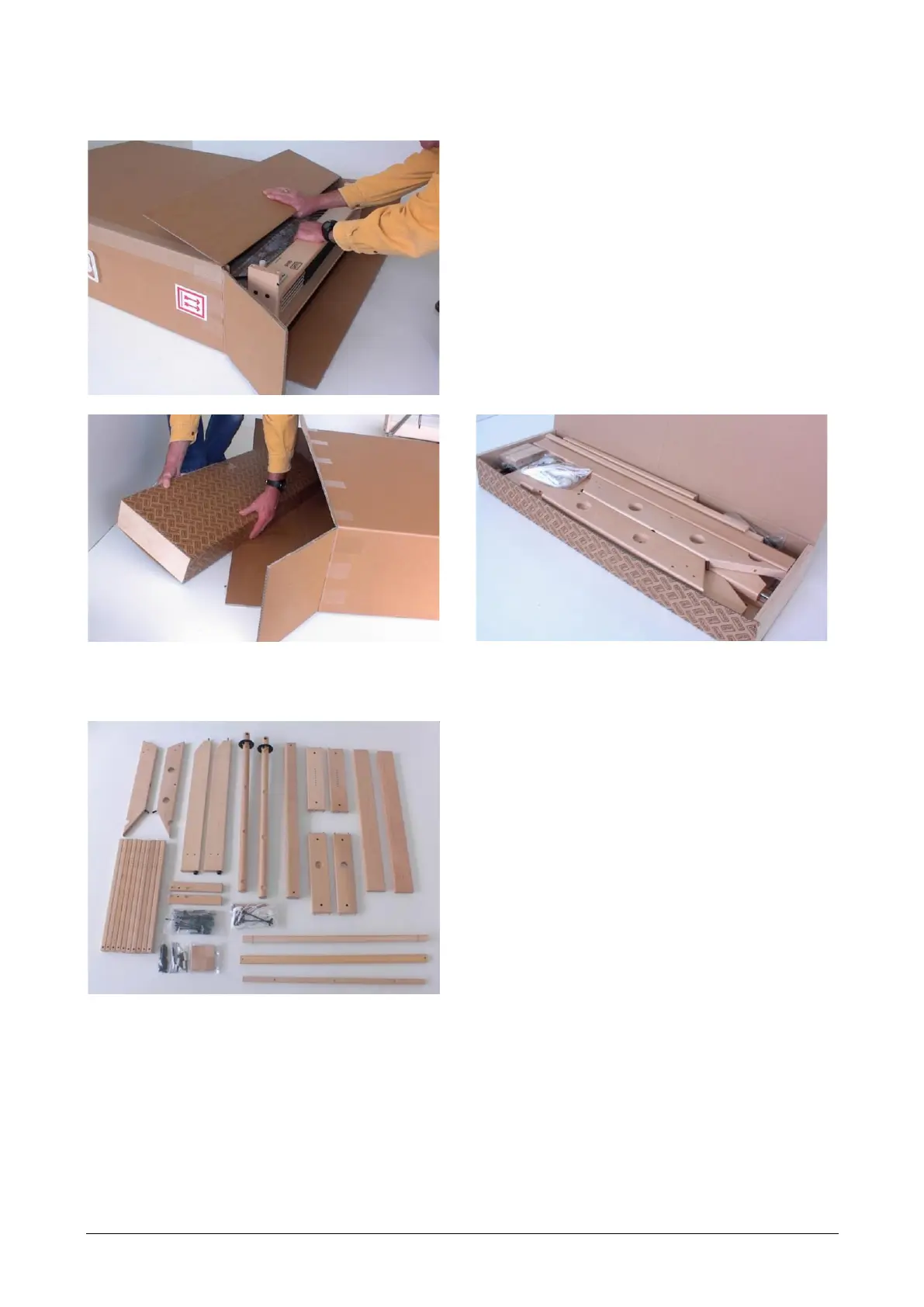

Slide the castle section out of the box. The
beater, packed together with the reed and the
shelf of the loom, will come out with the castle
section.
Now open the other end of the box to remove the box containing all the parts listed below, a cross
head screwdriver Pozidrive 2 and ties for the heddles.
− 10 treadles
− 2 warp beam supports L+R
− 2 front posts L=R
− warp beam and cloth beam
− breast beam
− 2 lower side rails L=R
− 2 upper side rails L+R
− back beam
− foot rail
− beater suspension bars L+R
− hardware bags 1, 2 en 3
− 16 warp sticks
− 2 lease sticks
− 2 apron bars
