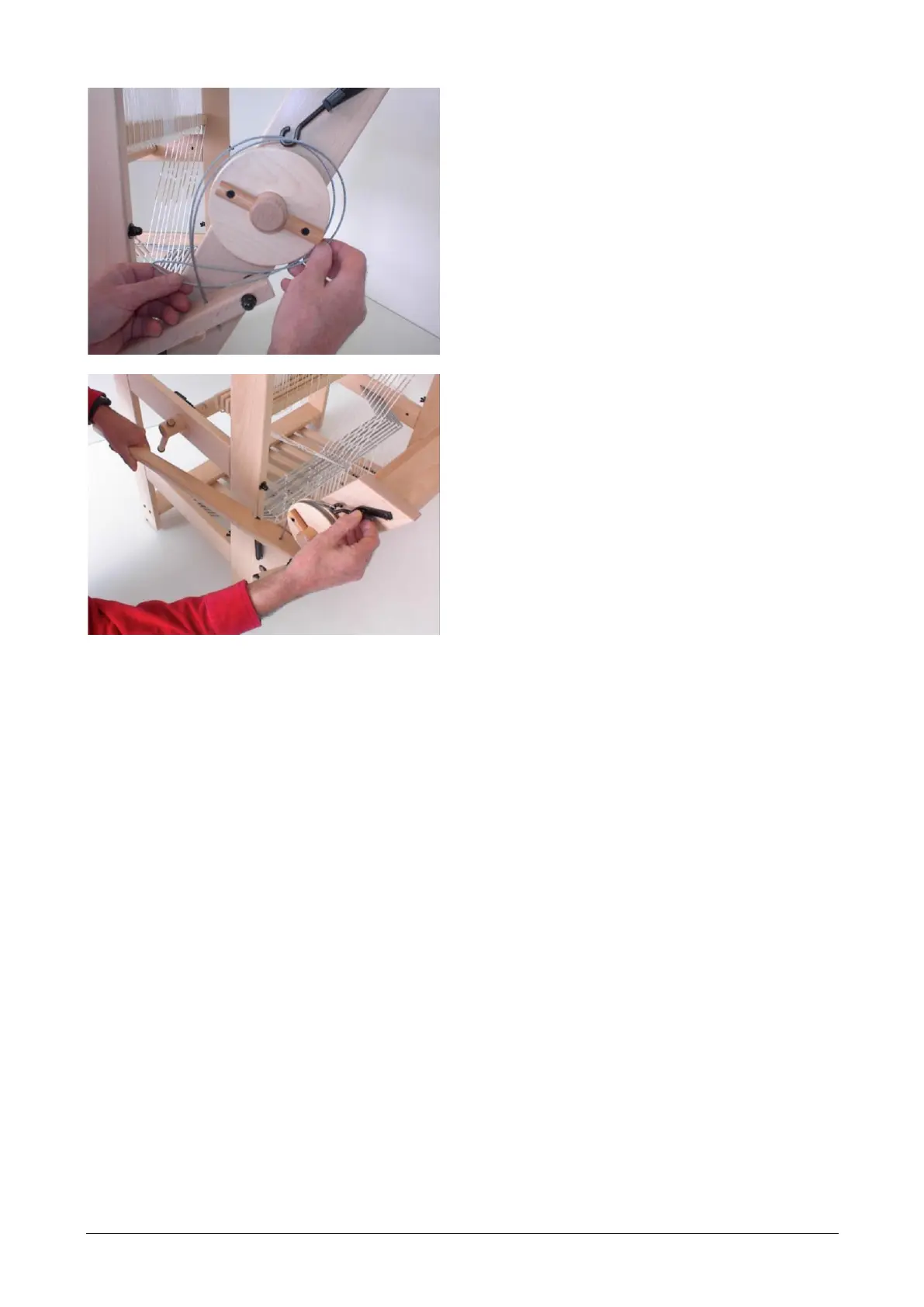

Unscrew the knurled nut from the eye bolt and
insert this bolt through the bracket and screw
on the knurled nut again.
Lead the brake cable around the brake disc
and hook it on the eye bolt.
Hook the spring onto the lag bolt and the screw
head on the brake handle.
Pull the brake handle up and tighten the cable
with the knurled nut. When you release the
handle it should stay in a horizontal position.
When you use the brake on the warp beam, of
course the ratchet should be removed from the
ratchet wheel. This can be achieved by turning
the ratchet over its top or fasten the screw
keeping the ratchet in an upright position.
