Carrying out the functional test
1. Start drive:
1. Enable drive: X3/DI1 = HIGH.
2. Activate preset setpoint 1 (20 Hz) as speed setpoint: X3/DI4 = HIGH.
The drive rotates with 20 Hz.
3. Optional: activate the function for the reversal of rotation direction.
a) X3/DI3 = HIGH.
The drive rotates with 20 Hz in the opposite direction.
b) Deactivate the function for the reversal of rotation direction again: X3/DI3 = LOW.

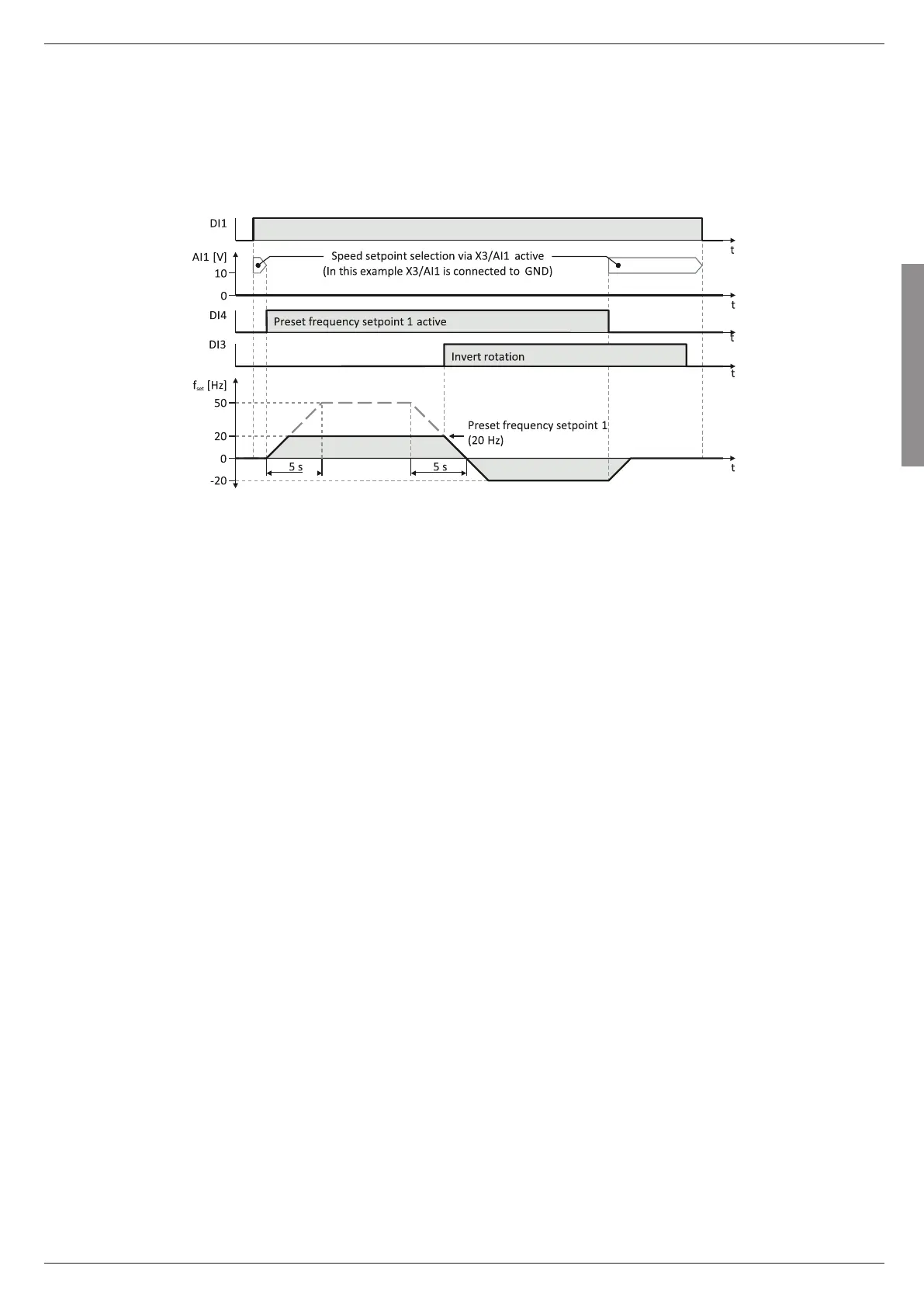

Speed characteristic (example)
2. Stop drive:
1. Deactivate preset setpoint 1 again: X3/DI4 = LOW.
2. Stop drive again: X3/DI1 = LOW.
The functional test is completed.
Drive follows the frequency setpoint
