Dimensional drawings | HDS Gen3 Installation Manual

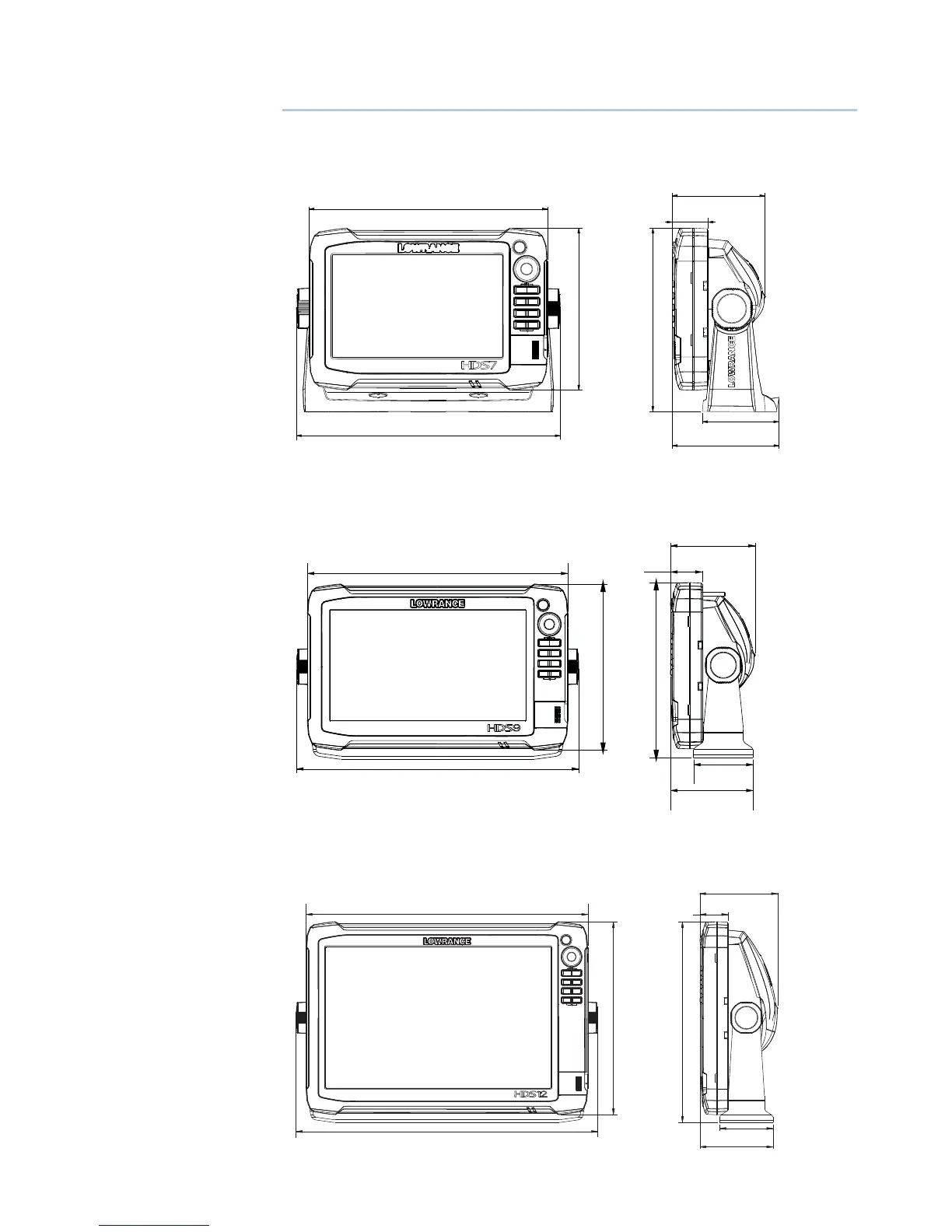

Dimensional drawings
HDS 7 Gen3
215.4mm (8.48”)
238.4mm (9.39”)
146.3mm (5.76”)
83.7mm (3.3”)
32.3mm (1.27”)
96.5mm (3.8”)
69.2mm (2.72”)
165.6mm (6.52”)
HDS 9 Gen3
286.7mm (11.29”)
265.0mm (10.43”)
168.9mm (6.65”)
84.0mm (3.31”)
60.55mm (2.38”)
177.8mm (6.99”)
86.1mm (3.39”)
32.2mm (1.27”)
HDS 12 Gen3
351mm (13.82”)
328.1mm (12.92”)
224.7mm (8.85)
233.8mm (9.2”)
85.1mm (3.35”)
62mm (2.44”)
32.6mm (1.28”)
57.9mm (2.28”)
7

Lowrance HDS-7 HDS Gen3 Specifications

General

Display Size	7 inches
Resolution	800 x 480 pixels
Touchscreen	Yes
GPS Antenna	Internal
Chartplotter	Yes
Waterproof Rating	IPX7
Display Type	LCD
Sonar	Yes
Networking	NMEA 2000
Wireless Connectivity	Wi-Fi
Card Slots	MicroSD
Weight	1.36 kg
