4
Bracket and Transducer assembly
The StructureScan bracket comes with four washers, two bolts and two nuts.
If you plan to mount the StructureScan transducer directly to the step (Step Mount)
or on the trolling motor, you do not need to assemble the bracket.

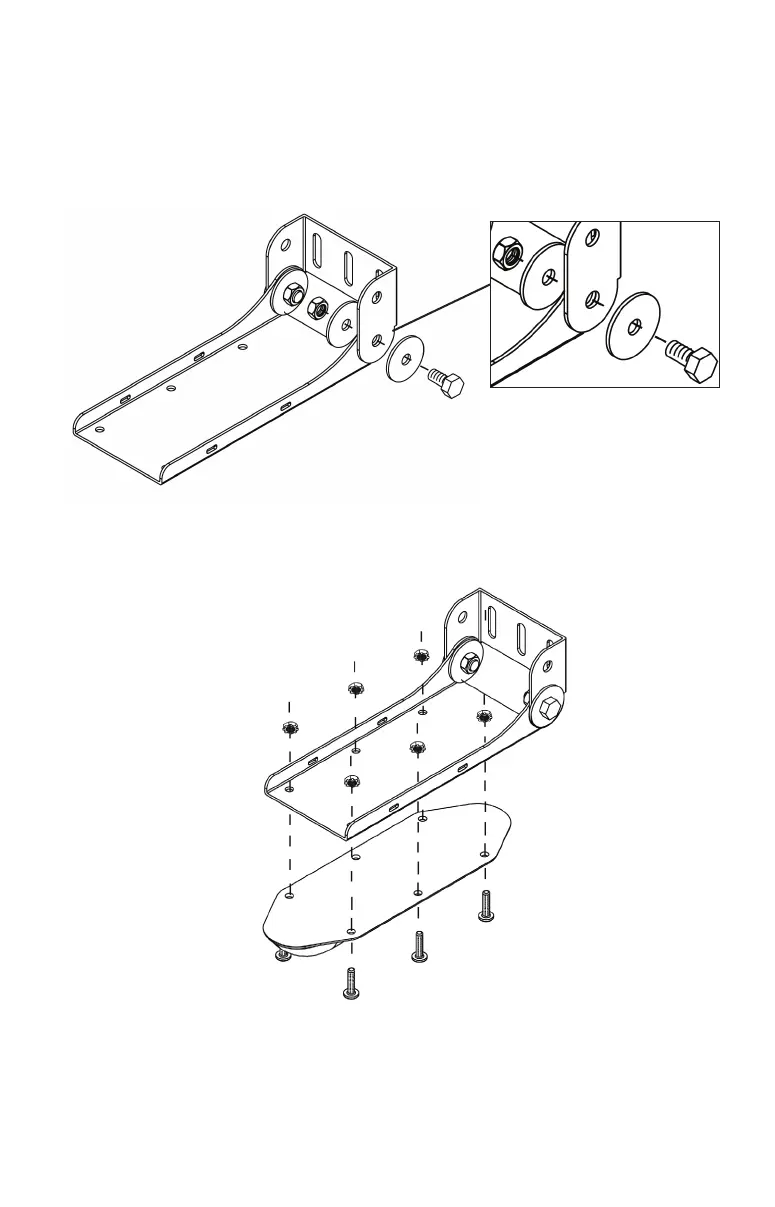

Assembling StructureScan transducer bracket
Attaching StructureScan transducer to bracket
