iS7 Ethernet Option Manual
6

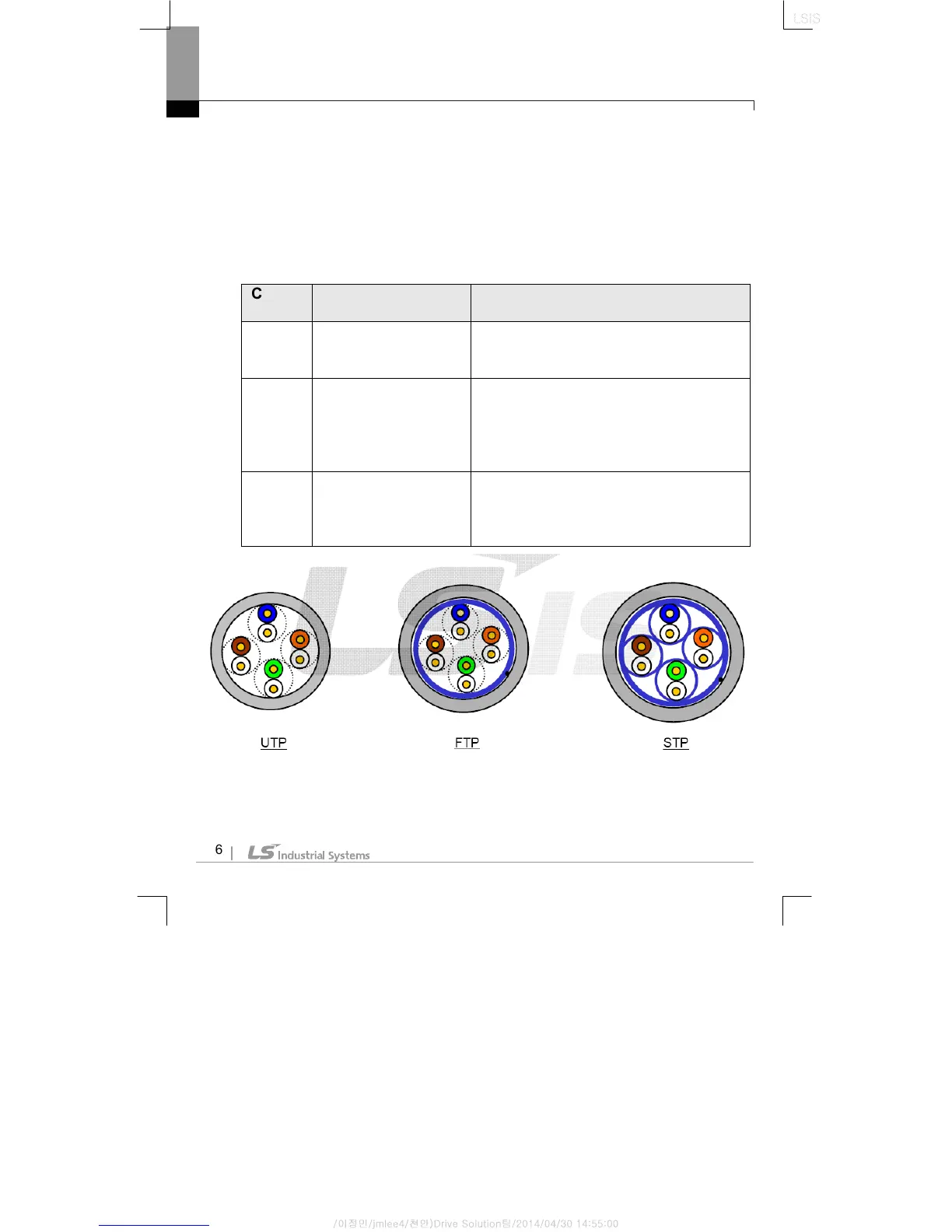

6. Network Cable Standard
(1) Used frequency band
Category 5 is used. The frequency band is up to 100 MHz, Channel
performance is up to 60MHz and Transmission speed is up to 100Mbps.
(2) Cable type of twisted pair cable
Classi-
fication
Details Purpose of cable
UTP
(U.UTP)
Unshielded Twisted
Pair cable for high-
speed signal
Maximum 200MHz
Voice + Information (Data)+Low video
signal
FTP
(S.UTP)
Foil screened
Twisted Pair cable
Maximum 100MHz
Electromagnetic interruption (EMI) or
electric stability considered Voice +
Information (Data)
+ Low Video signal
STP
(S.STP)
Shielded Twisted
Pair cable
Maximum 500MHz
Voice +Information(Data)+ Video
signal
75Ω coaxial cable replacement
