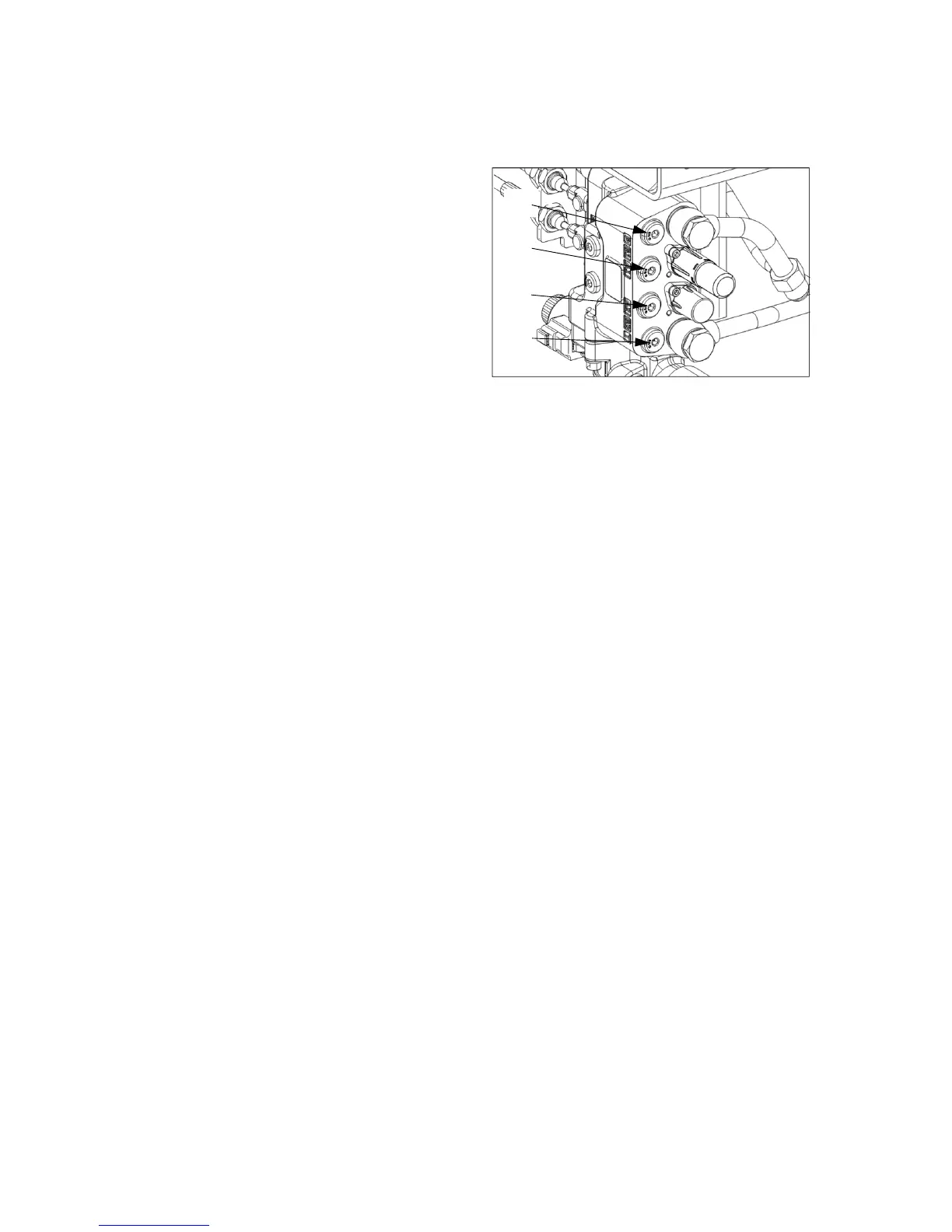

② Connection of hydraulic hoses
z Refer to the following instruction for hydraulic
hoses connection.
z Boom lowering – outlet 1
Boom lifting ------ outlet 2
Bucket lifting ----- outlet 3
Bucket dump ----- outlet 4
z The thread specification of outlet ports is PF 3/8.
Use suitable quick couplers for hose connection.
If possible, contact your authorized local dealer.
z After connecting the hoses, start the engine and
check the leakage of the hydraulic lines.
