4 -25

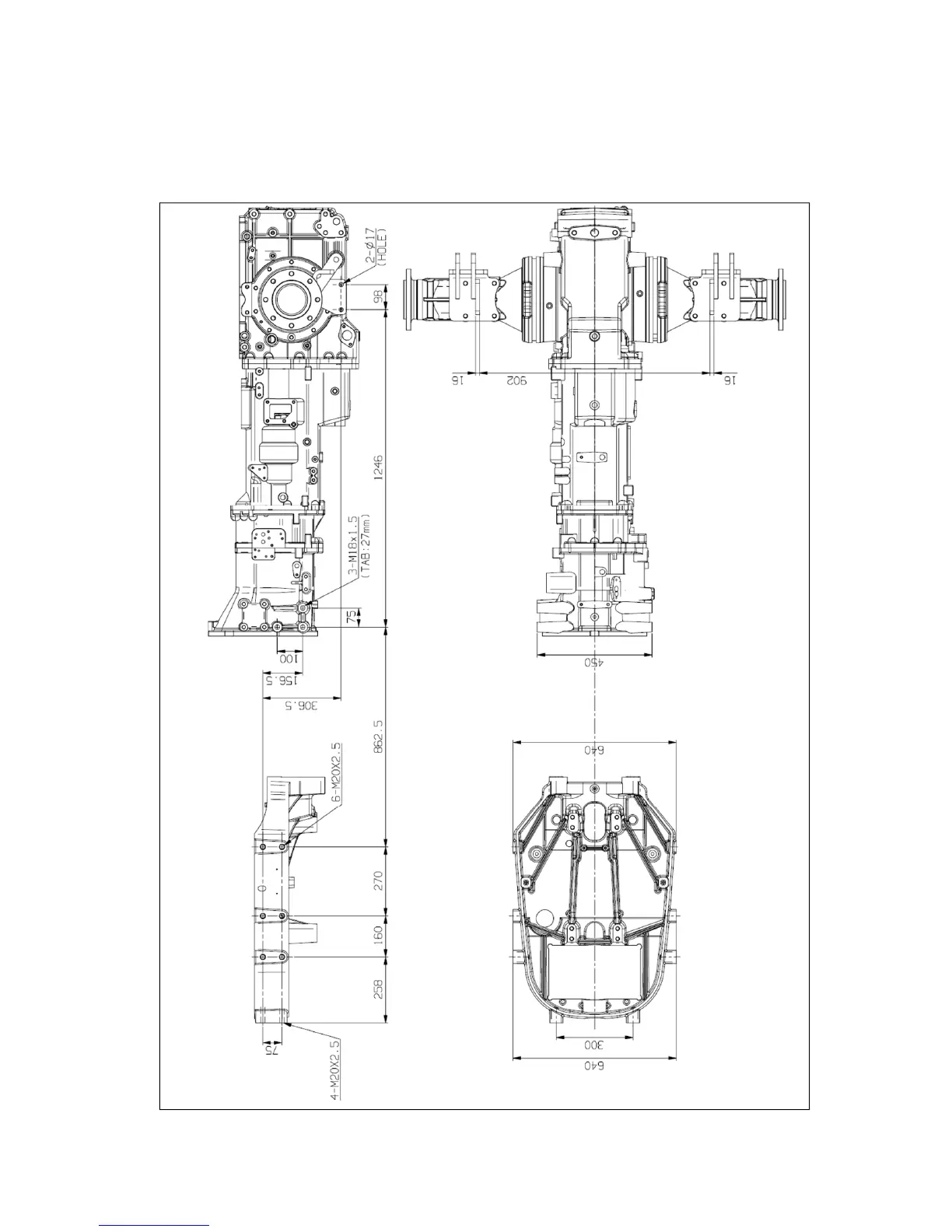

③ Attaching points for Front-end loader
z When attaching the front-end loader, refer to the drawings as below.
(Unit : mm)
