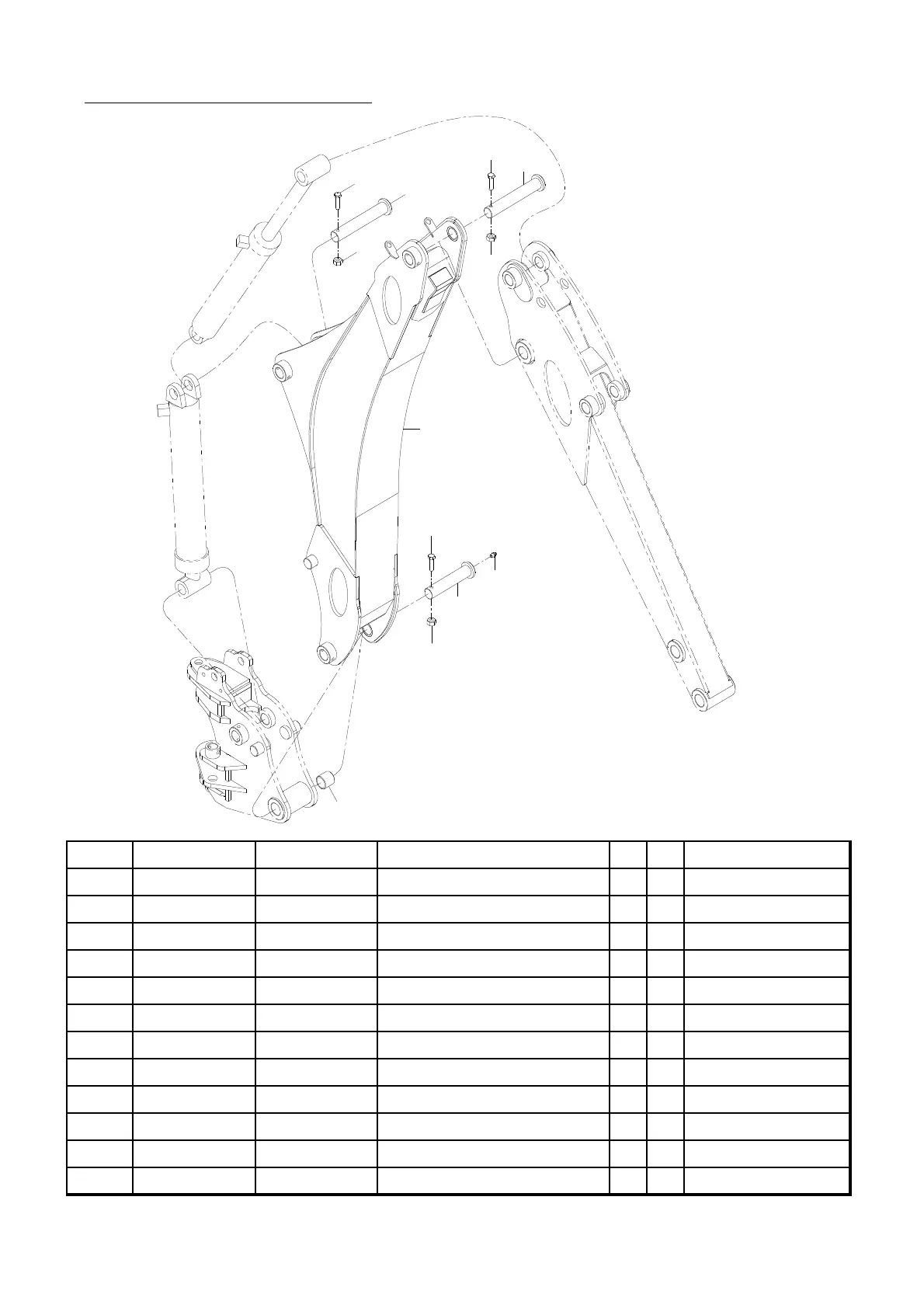

BOOM ASSEMBLY
REF.NO LS PART.NO PART.NO DESCRIPTION QTY I.C SERIAL OR DATE
1 40231057 BT300-21100 BOOM ASS'Y 1
2 40231095 BT664-71700 PIN,30-176.5L 1
3 40231096 BT664-71900-01 PIN,40-185.5L 1
4 40231093 BT664-71500-01 PIN,40-185.5L 1
5 40230880 10121-M0803-60 HEX.BOLT,M8-1.25P 60L 1
6 40230881 10121-M0803-70 HEX.BOLT,M8-1.25P 70L 2
7 40230896 1021N-M0803 NUT-SELFLOCK,M8-1.25P 3
8 40228707 802G0-T1900 NIPPLE,GREASE,1/8" 1
9 40230979 83040-4440D BUSHING,404440 2
9
2
7
6
1
5
7
7
4
8
6
3
- 39 -
