ASSEMBLY
OM 0472SB-A [13]

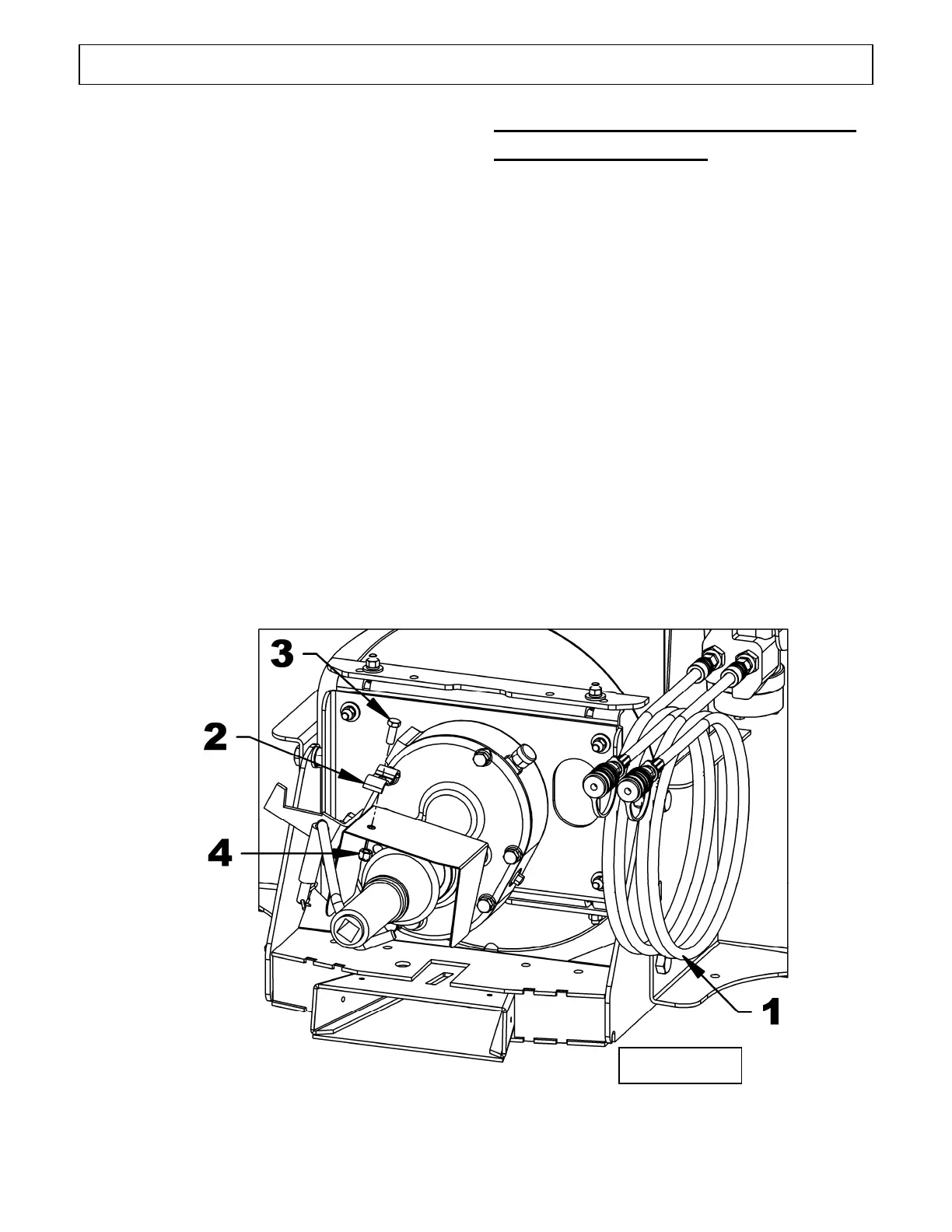

Figure 3
5. Release pressure from hydraulic system by
moving the control valve lever in all
directions.
6. Figure 3: Connect the two hydraulic hoses
(item 1) from the hydraulic motor to the
tractor quick couplers. Refer to the dust cap
color for the appropriate connection.
7. Figure 3: Fasten the hoses to the driveline
guard with a hose clamp (item 2) and secure
with a 3/8"NC x 1"lg hex. bolt and a 3/8/NC
nylon insert lock nut (items 3-4), making
sure to leave some free hose on the left side
of the tractor to prevent tension when the
snowblower is raised or lowered to its
maximum.
DETACHING SNOWBLOWER FROM
MALE QUICK HITCH
(Figures 2-3)
1. Set snowblower in float position, turn engine
off, set parking brake and remove ignition
key.
2. Remove linchpin (item 4) from male hitch
latch and place male hitch lever (item 3)
rearward to unlock position.
3. Disconnect driveline from tractor. Set
driveline on its support rod, remove the
support hairpin, turn the support rearward
and reinstall the hairpin.
4. Release hydraulic pressure by moving
control valve in all directions.
5. Disconnect the hydraulic hoses of the tractor
female couplers and place the dust caps on
the couplers.
6. Slowly back the tractor away from the
snowblower.
