OPERATION
OM 0472SB-A [15]
WARNING: To avoid serious
personal injury: Make sure tractor engine
and snowblower come to a complete stop
and tractor drive mechanism is
disengaged BEFORE making any
adjustments.
Deflector Adjustment
The deflector angle must be set according to
the distance the snow must be thrown. To
adjust the angle:
• Turn the chute to the left as far as
possible.
• Loosen the two deflector knobs on the
side and adjust the deflector at the
appropriate angle.
• Tighten the knobs.
Skid Shoe Adjustment

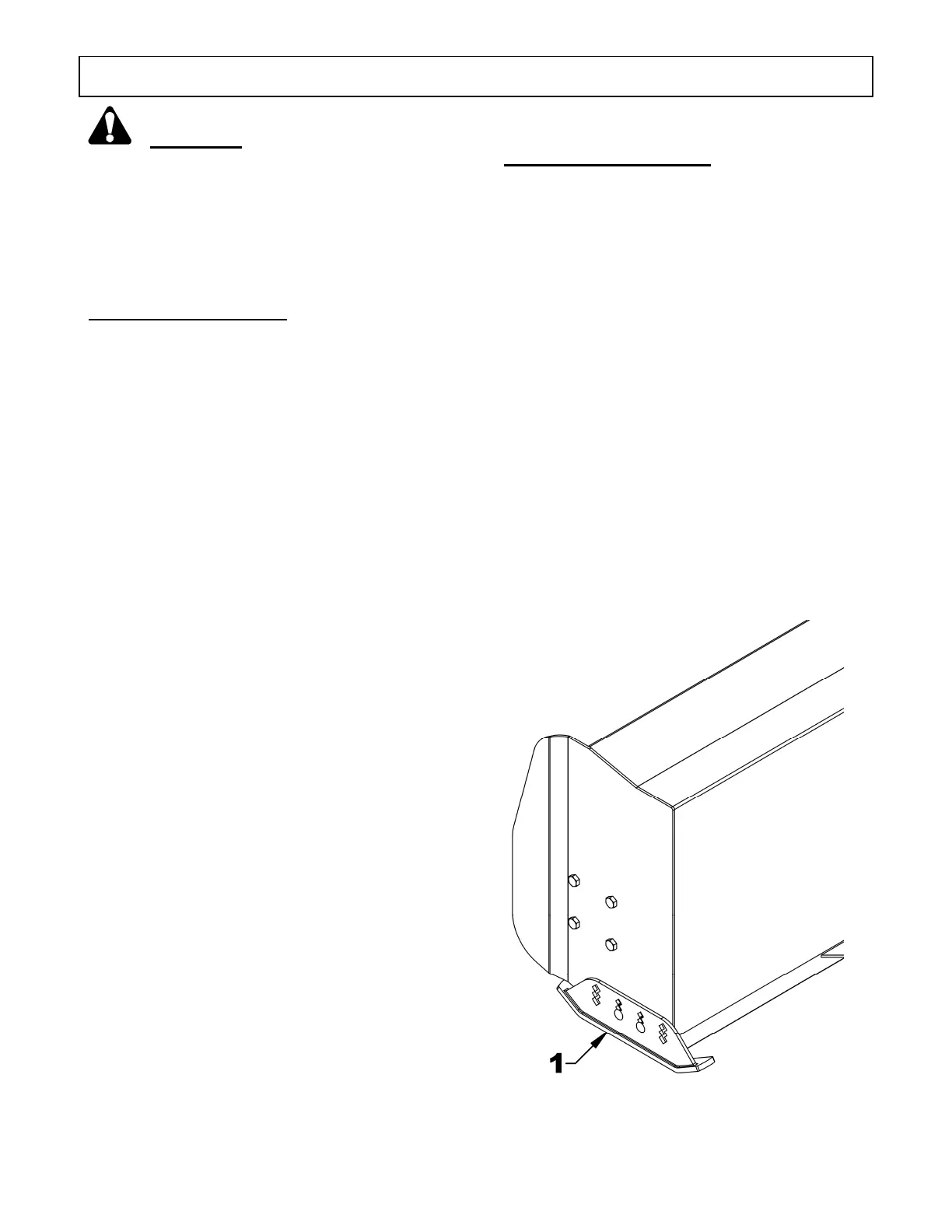

(Figure below)
Adjust the snowblower so that the skid shoes
run level and according to the surface
conditions so that stones are not thrown with
the snow. Adjust both skid shoes to the same
height to keep the cutting edge level and adjust
upwards for smooth surfaces.
Loosen skid shoe bolts and adjust according to
instructions below, and securely tighten bolts:
Clearance between cutting edge and surface:
• Level paved surface: Insert bolts in bottom holes
• Uneven or gravel surface: Insert bolts to the
required distance: 1/2" - center hole
1" - upper hole
