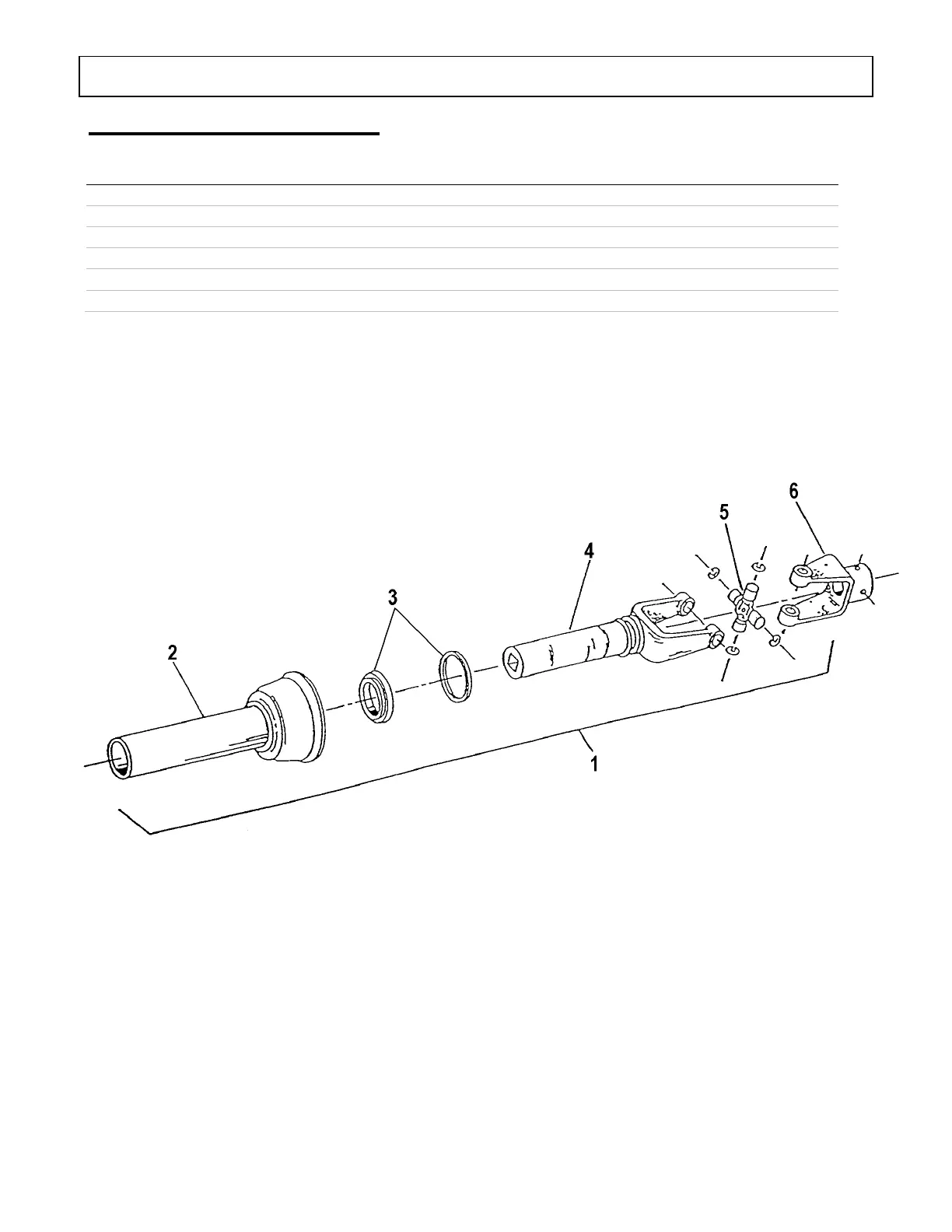

PARTS
OM 0472SB-A
[21]
D
RIVELINE
-
F
EMALE
H
ALF
R
EF
. D
ESCRIPTION
Q
TY
P
ART
#
1
Driveline ass'y – female half
1
BER659830
2
Inner shield
1
BER658511
3
Nylon repair kit
1
BER661555
4
Yoke and female shaft ass'y
1
BER658508
5
Universale joint kit
1
BER654478
6
Yoke 1 1/8" dia.
1
BER660149
22
24
Table of Contents
Introduction
3
Table of Contents
5
Table of Content
6
Safety Information
7
GENERAL SAFETY INFORMATION- Pictograms
9
Specification
11
Assembly
13
Snowblower Assembly
13
Installation of the Chute
13
Snowblower Installation
14
Detaching Snowblower from Male Quick Hitch
15
Operation
16
General Preparation
16
Engine Speed
16
Increasing Traction and Stability
16
Engaging the Drive Mechanism
16
Deflector Adjustment
17
Skid Shoe Adjustment
17
Snow Removal Methods
18
Maintenance
19
Shear Bolts
19
Auger Repositioning
19
Gearbox and Reduction Box
20
Oil Level - Oil Filling
20
Oil Change
20
Lubrication
21
Parts
22
Introduction
22
Chute with Hydraulic Rotation
24
Snowblower Assembly - Front
26
Snowblower Assembly - Back
28
Torque Specification Table
34
