5 -36

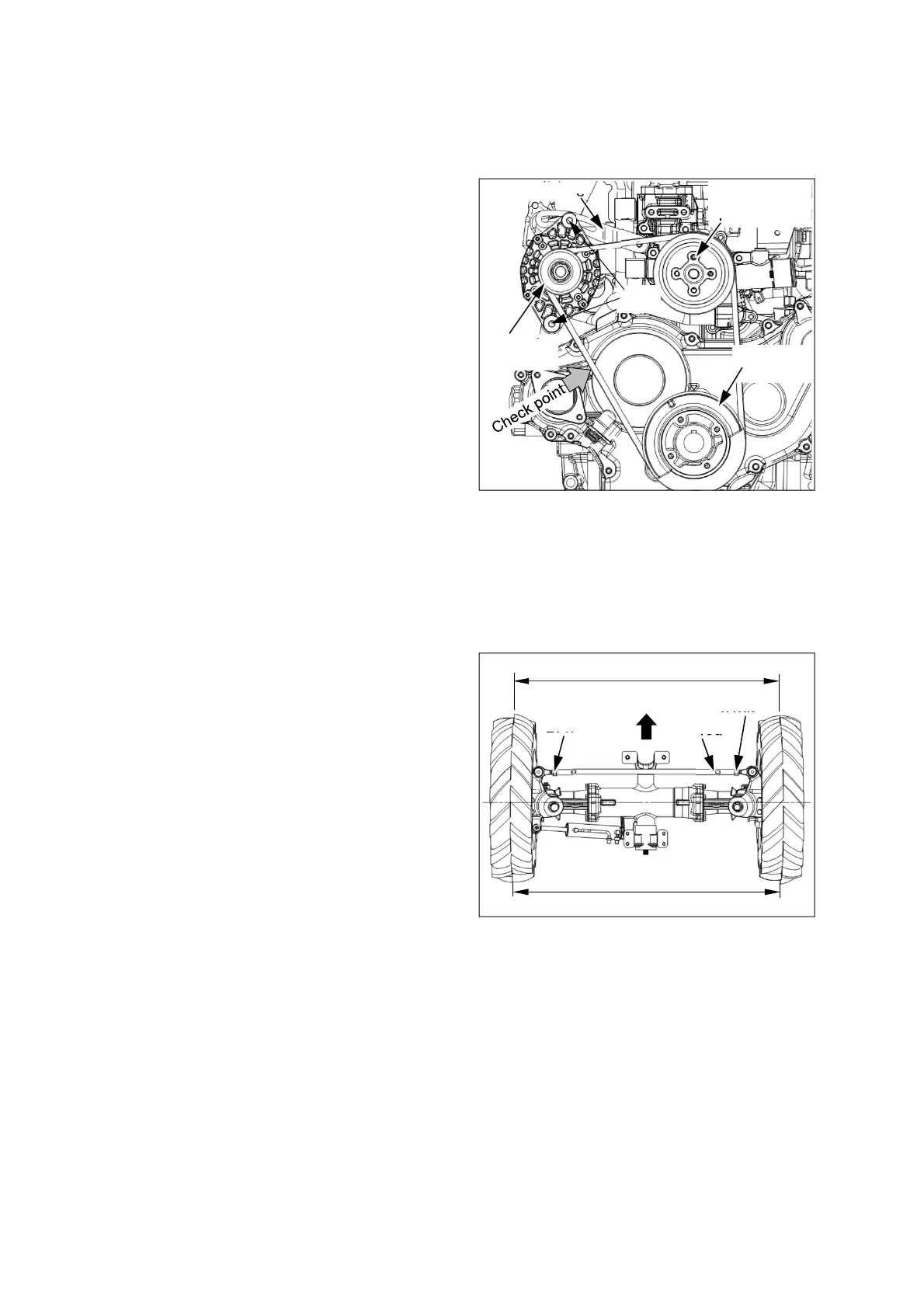

Adjusting plate
Bolts
Generator
pulley
Cooling water
pump pulley
Crank shaft
pulley
(3) Tension adjustment of Engine belt
If the fan belt tension exceeds the normal
value, adjust the tension as below.
- Belt tension: crank shaft pulley ~ alternator
pulley
- Normal: approx. 10~15mm (0.4~0.6 in)
(if pressed by 98N (22 lb.f))
When adjusting belt tension,
1. Loosen two bolts of alternator and a hinge bolt
of the adjusting plate. Insert a bar between crank
case and alternator, and pull the bar to apply
tension to the belt.
2. With proper tension, tighten the upper bolt of the
alternator.
3. If the fan belt tension is normal, tighten the other
bolts.
(4) Toe-in
Check the toe-in of the front wheels and if
necessary, adjust it as follows.
Normal value(B–A) = 0~5 mm (0~0.2 in.)
Unscrew the lock nuts of the tie-rod.
If you turn the tie-rod clockwise at the right hand
side, the toe-in will be increased.
After checking that the toe-in is correct, tighten
the lock nuts.
A
Lock nut
Lock nut
B
FRONT
Tie rod
