LS tractor MT230E 2020 User Manual

5 -49

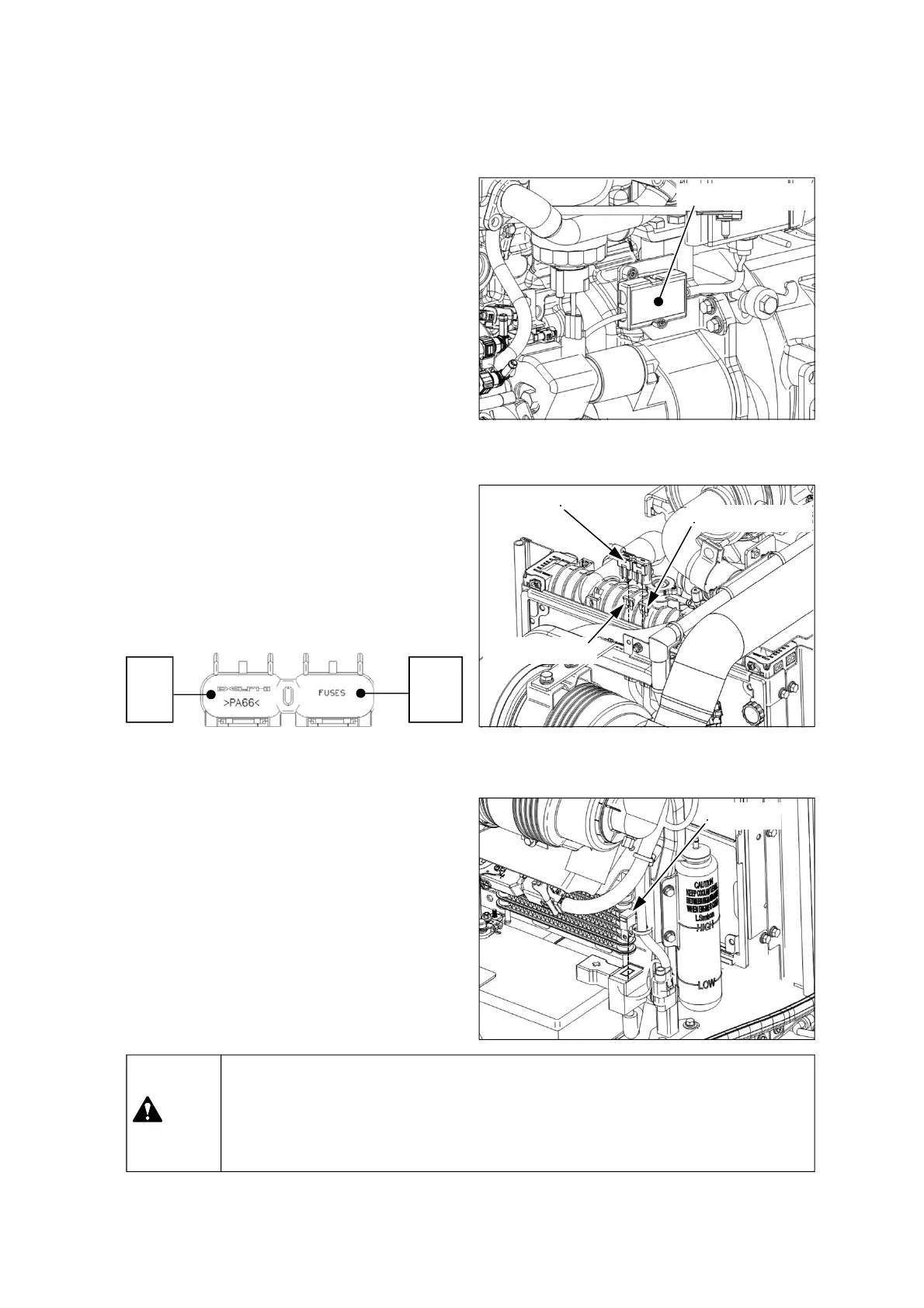

Chassis main fuse
②
Chassis main fuse

Chassis main fuse is attached to the left side of
the engine. If this main fuse is damaged, the
electric power to the fuse box described in
previous page will be cut off.

Remover the cover and pull out the chassis main
fuse. If necessary, replace it with a genuine part.
Rated capacity: 60 A
▶
The main fuse is an important part to protect the electric system and components.
If it is often burn out, contact your authorized local dealer to check the problem.
▶
Do not use a substitute instead of the rated genuine fuse. Do not connect electric
wires to the battery terminals directly. It may cause a fire and serious injury.
Fuel heater fuse
③
ECU main fuse & Fuel heater fuse

ECU main fuse and fuel heater fuse is installed to
the ECU harness to protect the ECU and fuel
heater circuit.

Remove the fuse cover, and pull out the fuse. If
necessary, replace it with a genuine part.
Rated capacity: ECU main fuse: 40 A,
Fuel heater fuse: 30 A
Main fuse
④
Main fuse

Main fuse is installed to the battery cable (+). If
this main fuse is damaged, the electric power
from battery to starter motor will be cut off.

Remove the cover, and unscrew the bolt.
Pull out the main fuse. If necessary, replace it
with a genuine part.
Rated capacity: 100 A
Caution
Fuse cover
ECU main fuse
ECU
main
fuse
Fuel
heater
fuse
