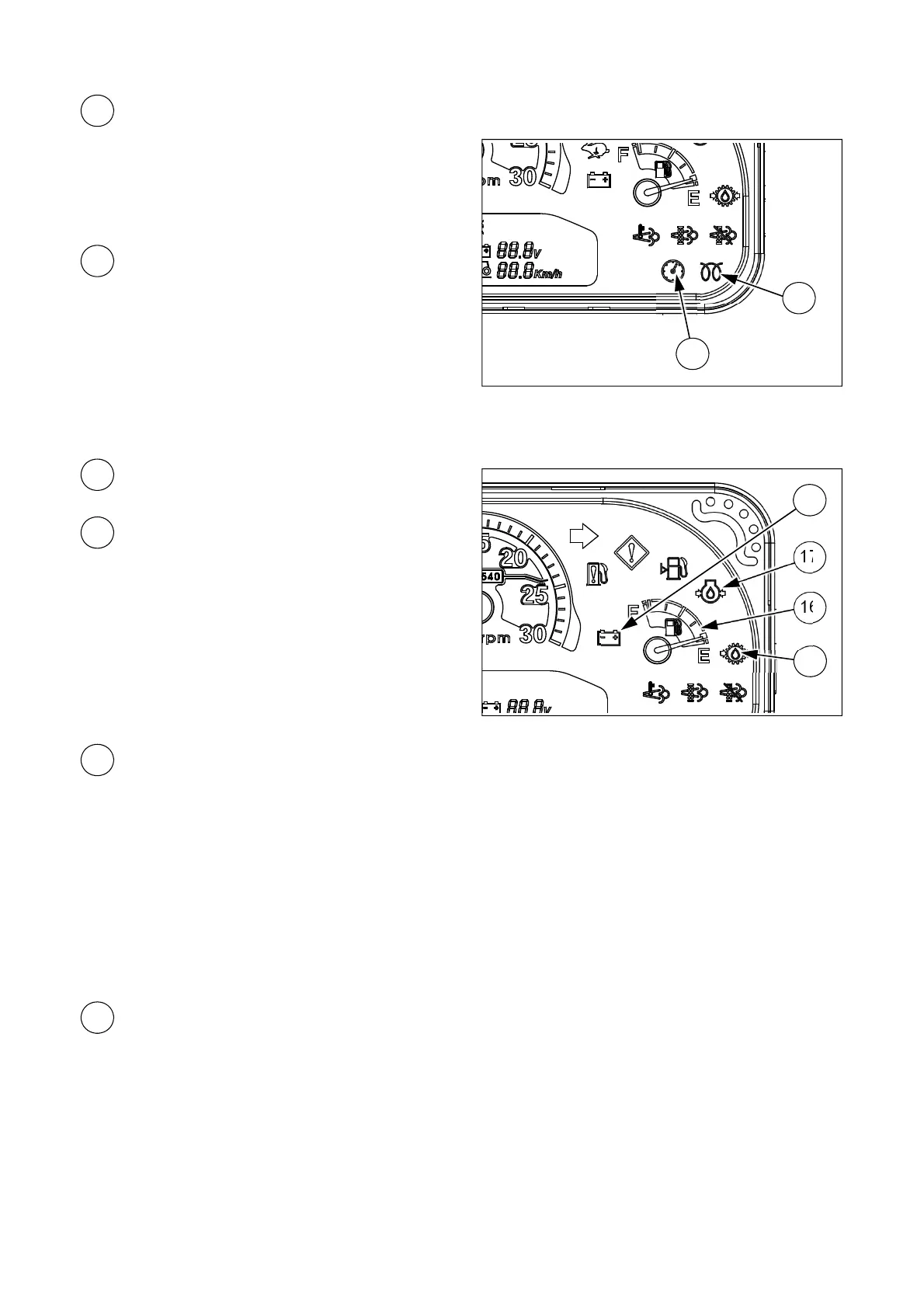

Fuel level gauge
13
ESC mode indicator
14
Cold start aid indicator
15
Hydraulic oil pressure indicator (Not used)
When the cold start aid device is working, this
indicator will be turned on, and it will be turned
off some seconds later. The duration of the
illumination may vary depending on the coolant
temperature. After this indicator is turned off,
start the engine.
This gauge shows the fuel level in the fuel tank.
If the needle indicates “E”, fill the fuel tank
immediately with fuel.
The gauge activates when the key switch is in
the ON position. It will register “empty” with the
key switch in the OFF position.
17
Engine oil pressure indicator
This indicator is turned on when operating the
ESC main switch to “ON” position and the ESC
mode is ready.
The light indicates oil pressure only and goes out when sufficient oil pressure is present at the oil
sender.
This indicator will be turned on when turning the key switch to “ON” position and it will be turned off
after starting engine.
If the indicator is turned on during operation, stop the engine immediately and check the engine oil
level. If the engine oil level is normal, contact your authorized local dealer for checking the engine
lubrication system.
18
Battery charging warning indicator
This indicator will be turned on when turning the key switch to “ON” position and it will be turned off
after the engine starts.
If this bulb becomes lit during operation, it indicates that the charging system is not operating
normally. As the battery can be fully discharged under these conditions, contact your authorized
local dealer for checking the electrical charging system.
