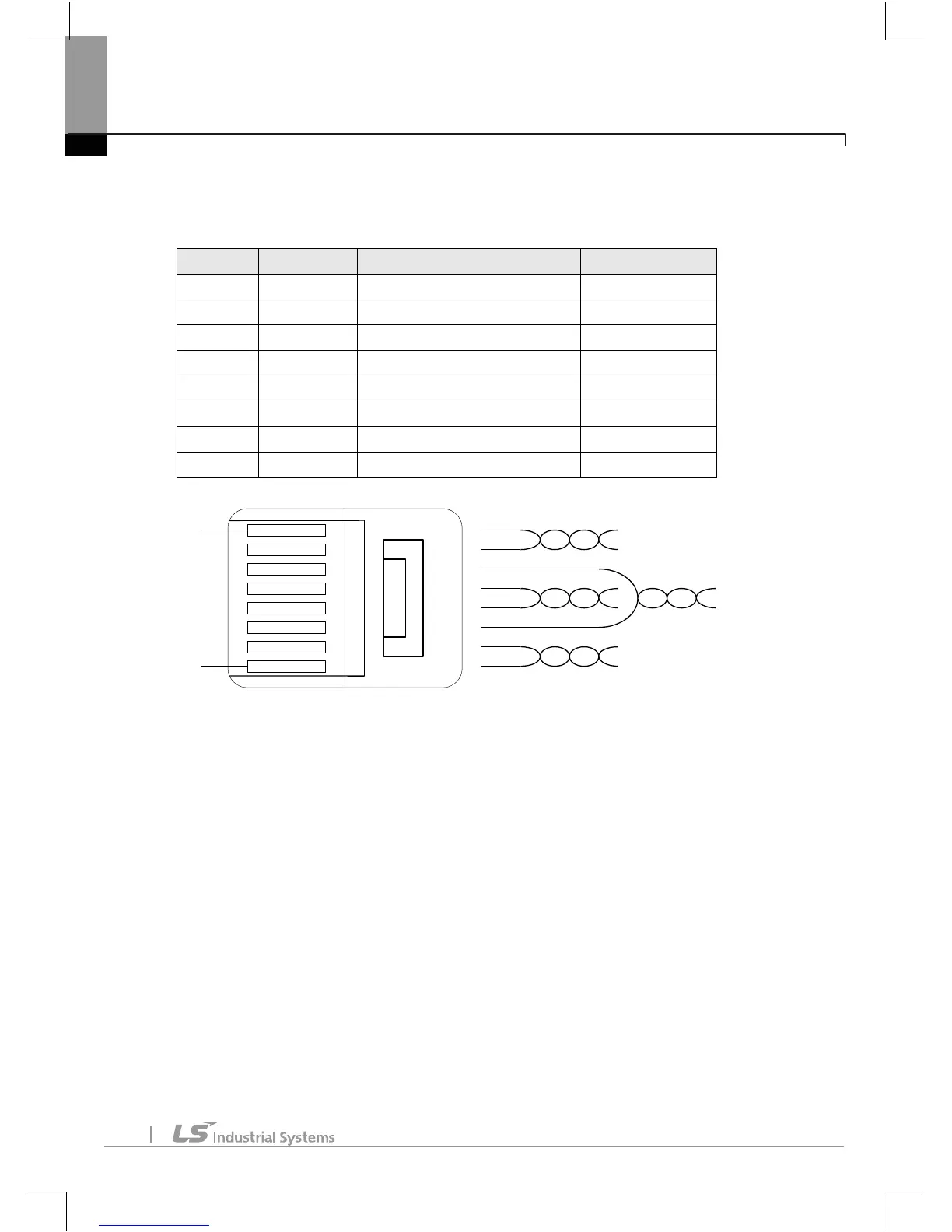

5. Network Connection
Communication cable connecting terminal
※ Make sure that cables connected to Pin1 and 2 are twisted together.
※ Make sure that cables connected to Pin3 and 6 are twisted together.
Pin No.
Signal
Description
Cable color
1
TX+
Transmitting data Plus
White / Yellow
2
TX-
Transmitting data Minus
Yellow
3
RX+
Receiving data Plus
White / Green
4
NONE
Not used
Blue
5
NONE
Not used
White / Blue
6
RX-
Receiving data Minus
Green
7
NONE
Not used
White / Brown
8
NONE
Not used
Brown
