LS iP5A - Wiring - Built-in DCL Type; 15~30 kW (20~40 HP) Built-in DCL Type Wiring; 37~90 kW (50~125 HP) Built-in DCL Type Wiring

iP5AiP5A

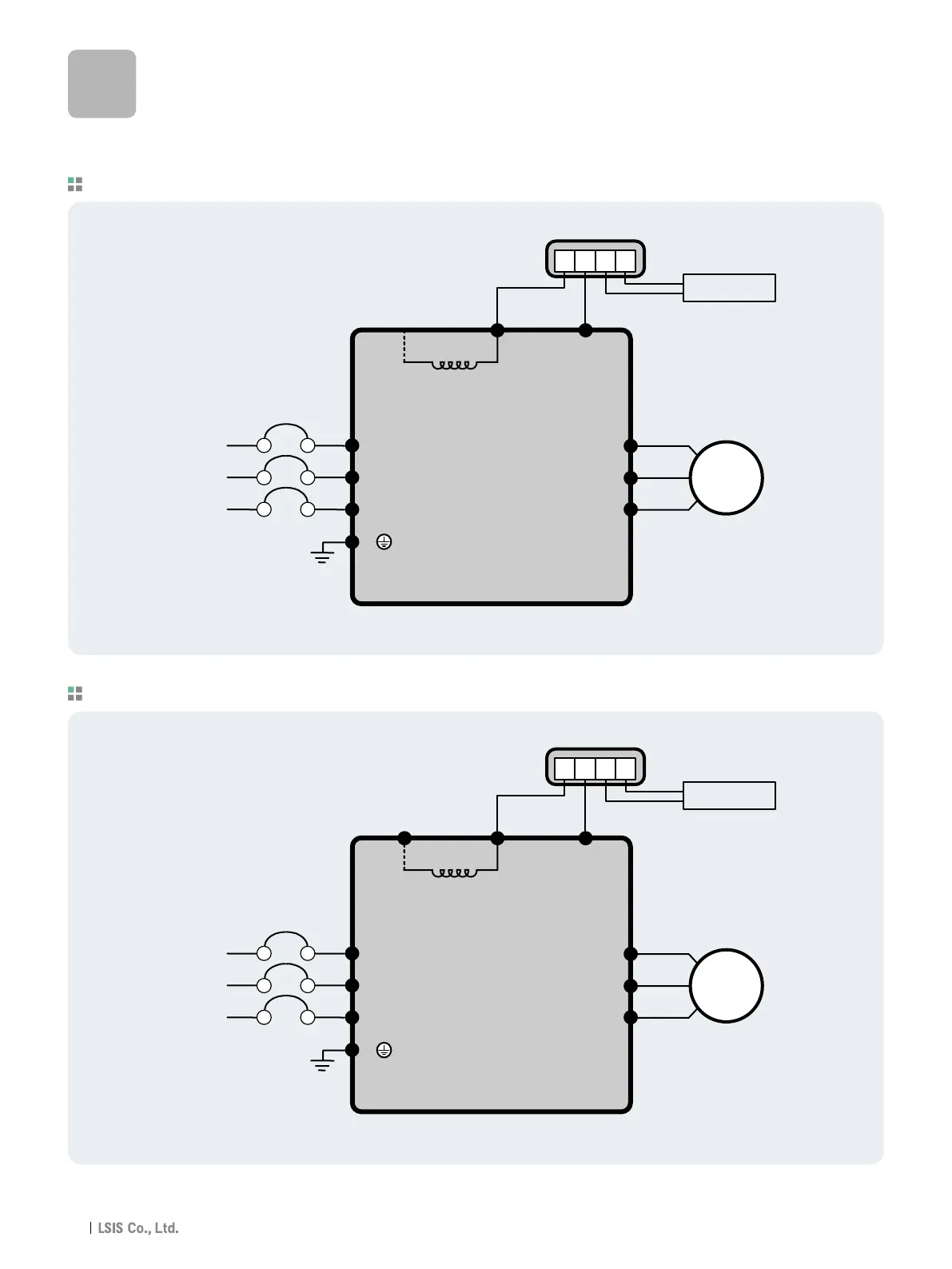

For 15~30kW (20~40HP) Built-in DCL Type
For 37~90kW (50~125HP) Built-in DCL Type
Wiring
Note) P1 (+) is not provided for wiring.
R (L1)
S (L2)
T (L3)
G
U
V
W
DC Reactor
DB Resistor
3
Ø
AC Input
50/60 Hz
Motor
P (+)
P N B1 B2
N (-)
R (L1)
S (L2)
T (L3)
G
U
V
W
DC Reactor
DB Resistor
3
Ø
AC Input
50/60 Hz
Motor
P1 (+)
P N B1 B2
P2 (+) N (-)
