5. ASSEMBLY INSTRUCTIONS
NOTE: Before assembly ensure there is enough space around the item. Some nuts and bolts may be already
attached to the machine

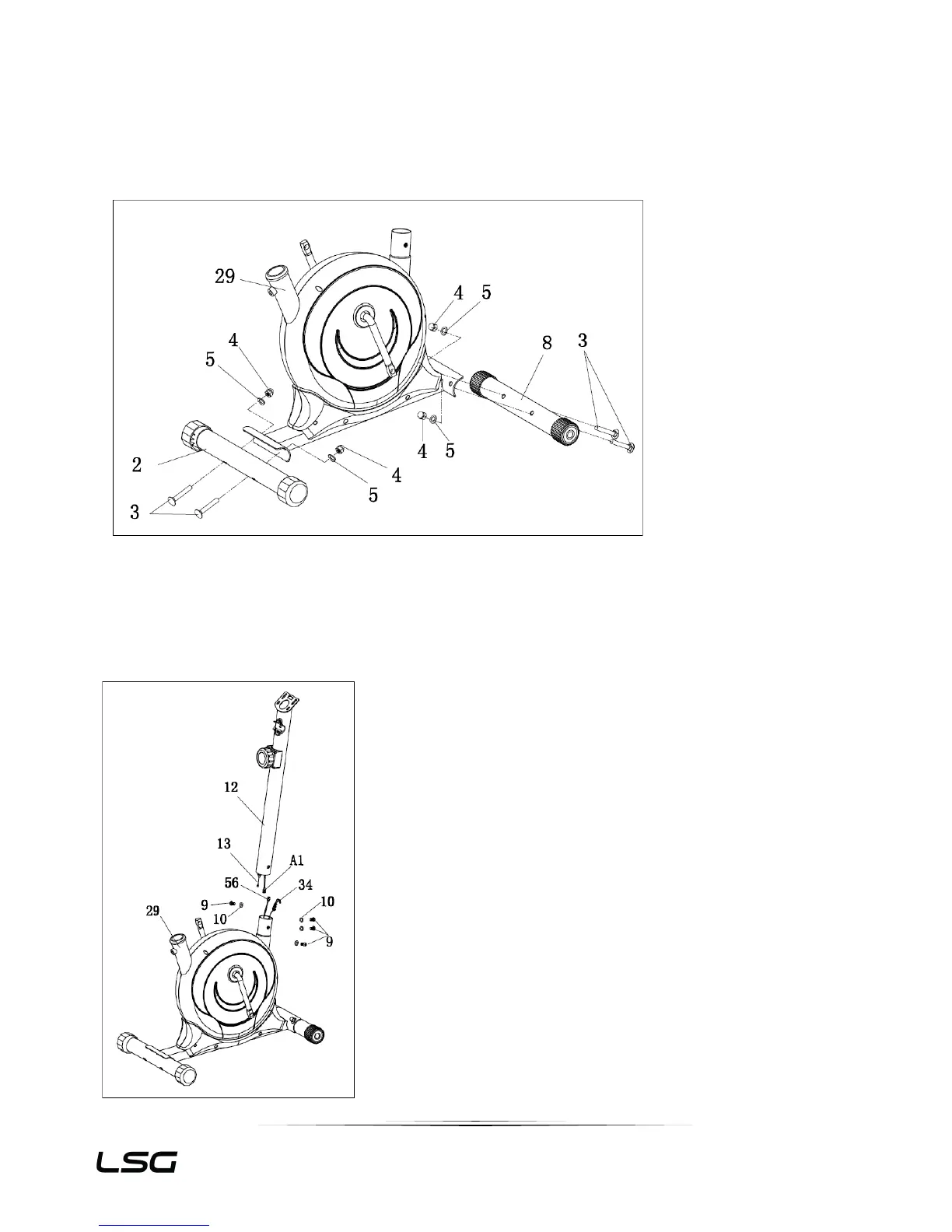

STEP 1
STEP 2
1. Attach front stabilizer (8) to main frame (29), tighten with carriage bolt (3), arc washer (5) and
domed nut (4).
2. Then attach rear stabilizer (2) to main frame (29), tighten with carriage bolt (3), arc washer (5)
and domed nut (4).
1. Insert the front post (12) through front cover (11) and join
middle computer wire (A1) to lower computer wire (56).
(See image on next page)
2. Release tension knob on front post then connect upper
tension wire (13) with lower tension wire (34). Insert upper
tension wire (13) nut onto the lower tension cable (34)
bracket slot, pull upper tension wire (13) and slide through
lower tension wire (34) bracket to vertical direction. Wire
nut will sit on top of the cable bracket.
3. Insert front post (12) into main frame (29) and secure using
four Allen bolts (9) and four arc washers (10). Put the front
cover (11) down.
