25

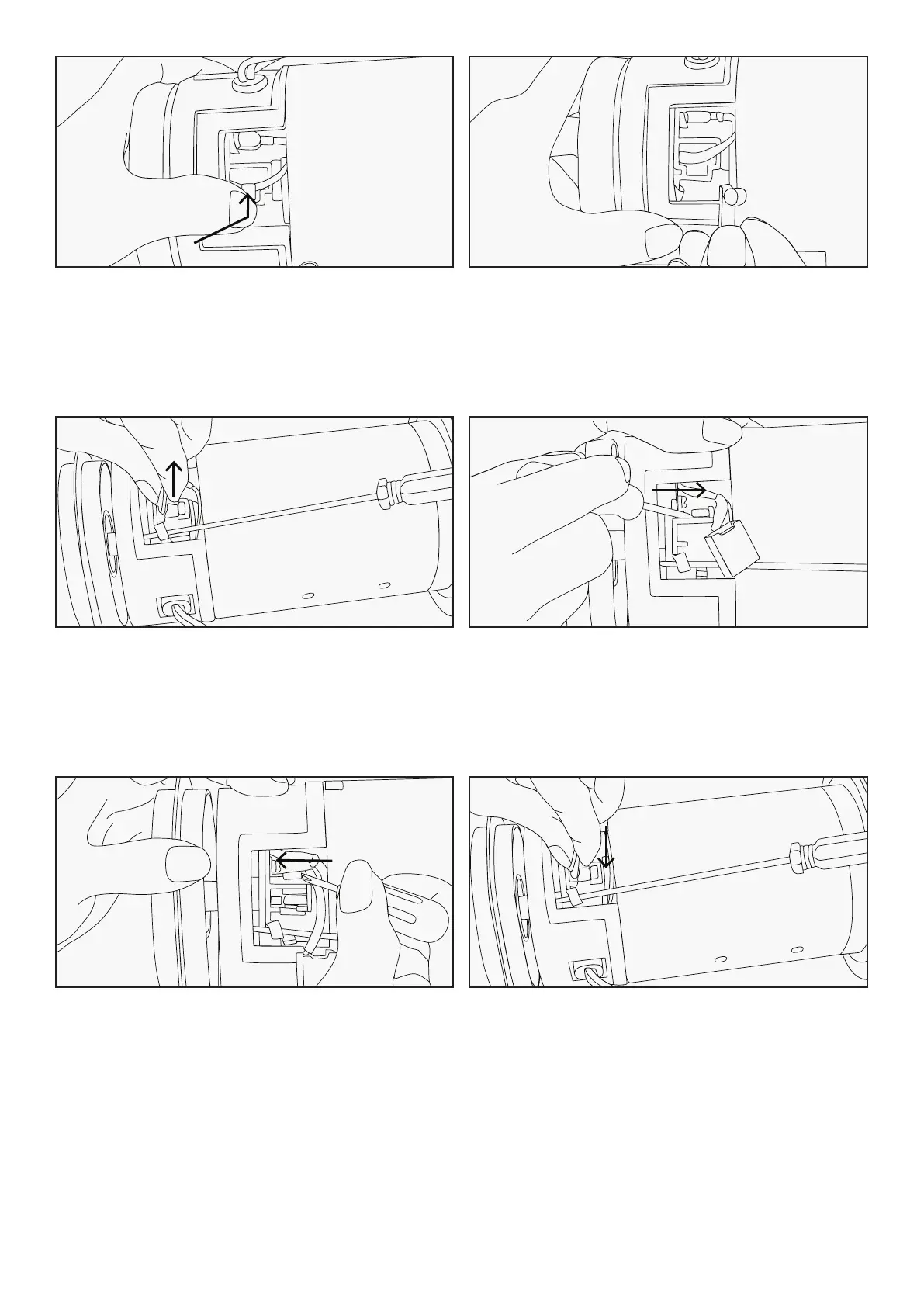

4b. Some treadmill motors may use a push
clip instead. In this case, gently push the
clip inwards and then up to release it from
its latch.
4c. Remove the clip, noting the direction in
which it was originally placed, and put it
safely aside.
5. Slide the motor brush out from its slot.
If the brush is shorter than 2cm on the
longest side, you will need to replace both
brushes.
6. Slide the motor brush lead off the terminal
using another small screwdriver or needle
nosed pliers.
7. Plug the new motor brush lead into the
terminal.
8. Slide the new motor brush into the slot.
REPLACING MOTOR BRUSHES |
