LSG Focus M3 - Page 9

9ASSEMBLY INSTRUCTIONS |

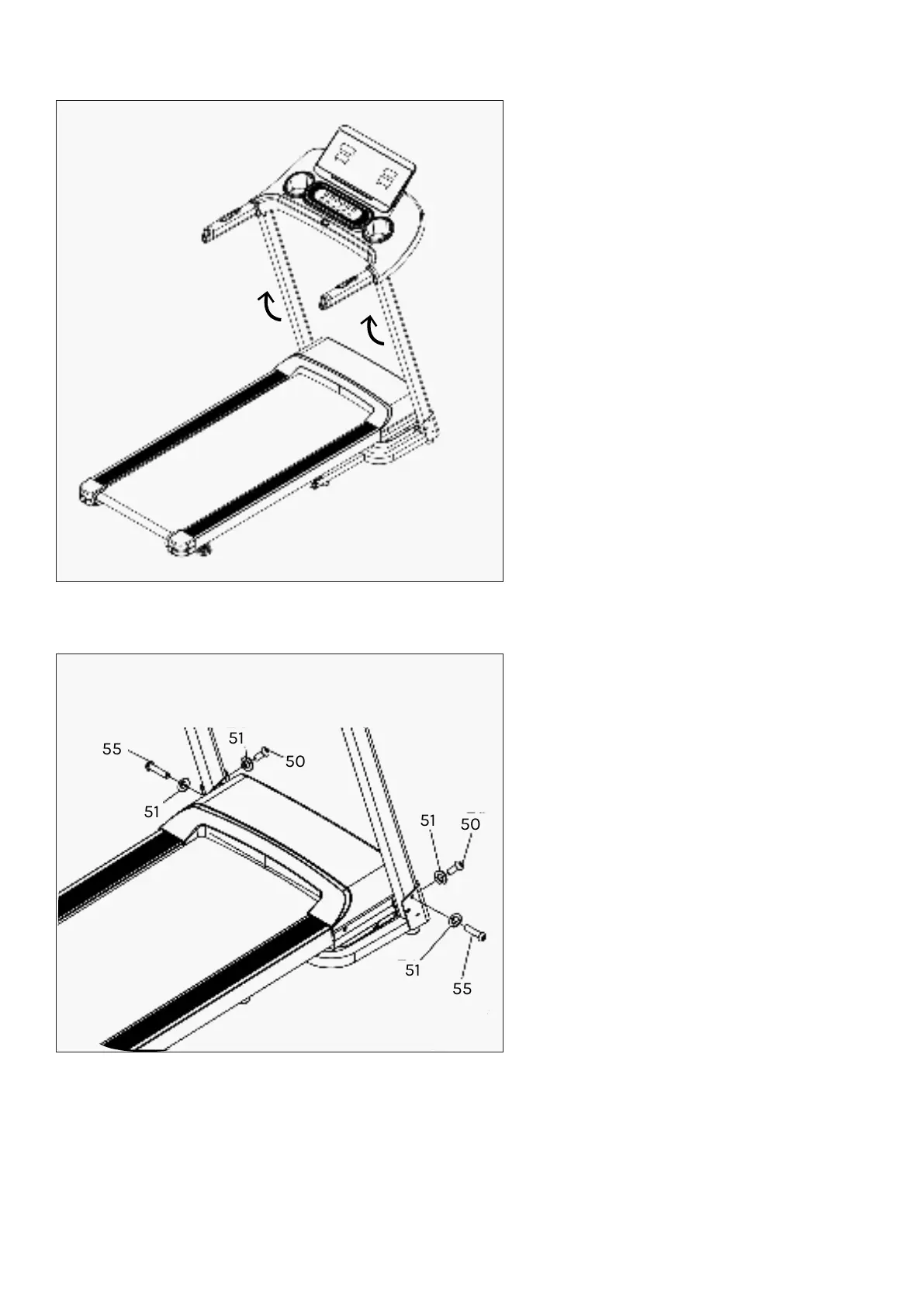

STEP 3
STEP 4
1. Push up the Computer and L&R uprights.
1. Use 5# Allen wrench, to secure the
upright onto base frame by using
bolt (55) and lock washer (51). Then lock
upright onto base frame by bolt (50) and
lock washer (51).
Repeat step on the other side, see picture
for reference.
NOTICE:
Support the upright with hand to prevent
it from falling and causing injury.
!
!
!
!
!
!
!
!
!
51
51
51
55
51
50
50
55
