3.1 Application overview
Access the menus from the treeview (in the upper
left) by clicking on it. The appropriated details will
be displayed in the right section of the application.
3.1a Datalogger Mode
In this mode, live information sent by the wireless
sensors is displayed. The data can be logged to
les; see the 3.1b Settings section to congure
this feature.
3.1b Settings
The data from the datalogger mode can be saved
on the computer disk.
1. Dene the time interval and location folder of
the logs.
2. Press Apply to save changes or Cancel to
reload existing setting.
3.1c Communication Port
This section displays the communication port in use,
the port type and status. The Open status indicates
that the communication port is in use and that the
LSI Gateway is communicating information.
3.1d Configuration
Sensor List:
Sensors in the LSI Wireless Gateway system are
dened in the Configuration menu and are also
displayed under Sensor Settings in the treeview
section. Refer to section 3.2 Sensor List to add,
remove or modify sensor information.
LSI Gateway Internal Ports:
The LSI Gateway internal communication ports
behavior can be congured in the LSI Gateway
Internal Ports section.
• Step 1: Select the LSI Gateway internal port
to be congured.
• Step 2: Set the data logging options of the
selected port.
The data logging options set are
compatible with the Datalogger Mode
from the left menu.
Data Filter: Denes the information sent to the
internal communication port;
All sensors: Surrounding sensors,
including the system sensors.
System Sensors Only: Sensors
congured in the LSI Gateway.
• Step 3: Set advanced port settings.
3. OPERATION

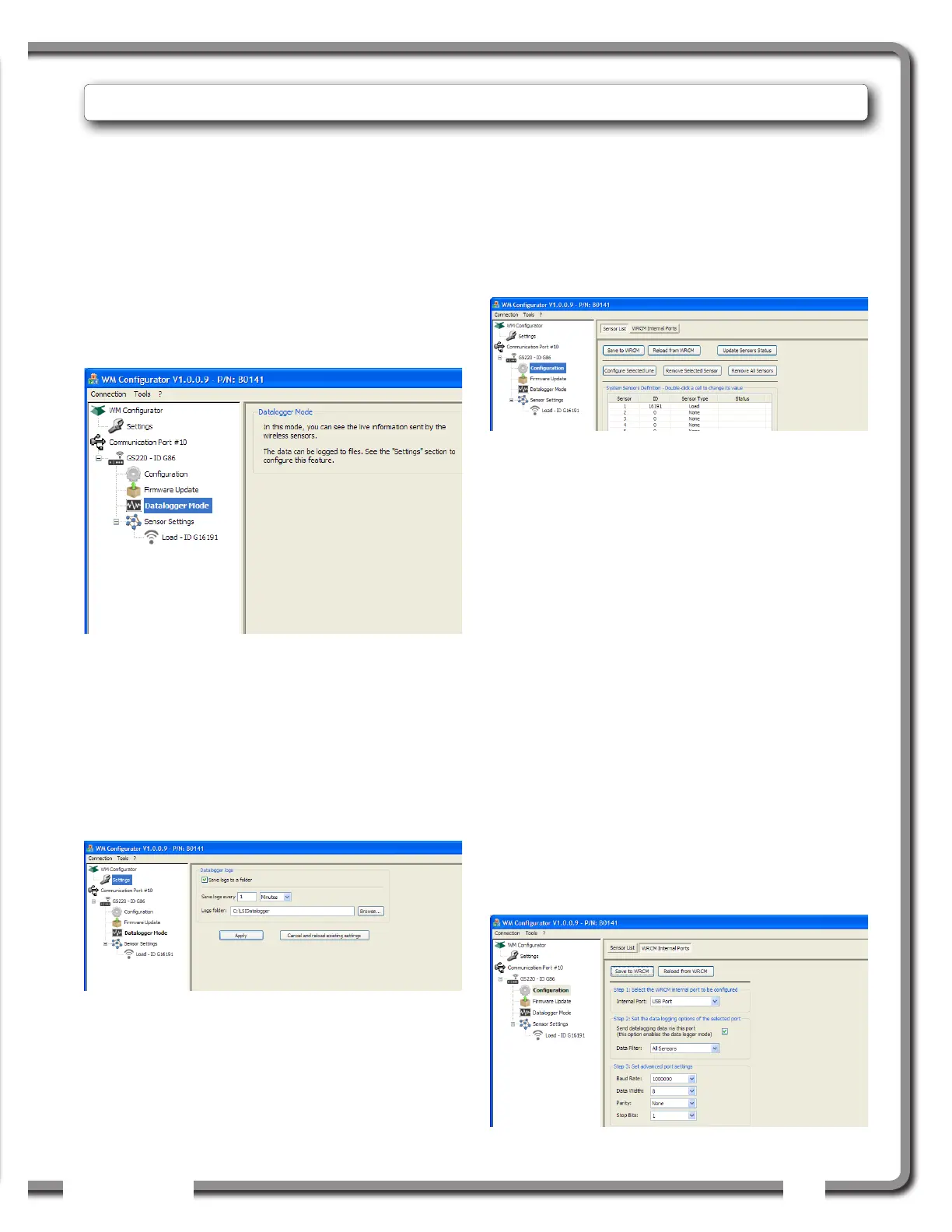

Figure: Application overview.
Figure: Settings
Figure: Sensor List.
Figure: LSI Gateway Internal Ports.
