LSI SAS 9201-16i PCI Express to 6Gb/s SAS HBA User Guide
August 2011
Electrical and Environmental Specifications
5.3 Physical Characteristics
The LSI SAS 9201-16i HBA is a 6.6-in. x 4.2-in. board. The component height on the top and bottom of the LSI SAS
9201-16i HBA is in accordance with the PCIe specification. The following figure shows the board connectors.

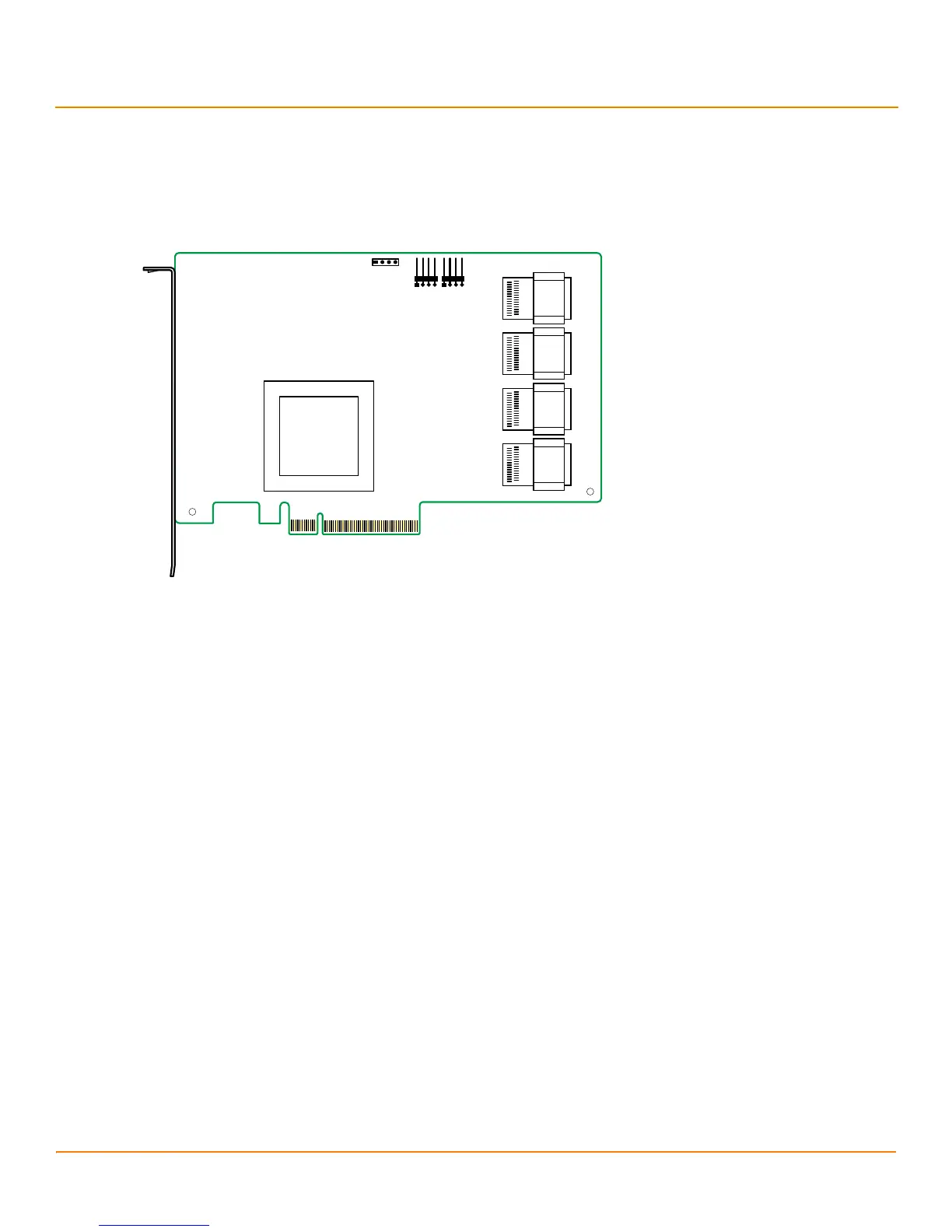

Figure 1 LSI SAS 9201-16i Board Layout
 EC1: PCIe x8-lane board edge connector
 J1: UART connection
 J4 and J5: 4-pin, right angle, 0.1-in. pitch, pin header for driving external activity LED
 J6, J7, J8, and J9: SFF-8087 mini-SAS, internal, right-angle connectors
6 Electrical and Environmental Specifications
The design and implementation of the LSI SAS 9201-16i HBA minimizes electromagnetic emissions, susceptibility to
radio frequency energy, and the effects of electrostatic discharge. The board carries the CE mark, C-Tick mark,
Canadian Compliance Statement, Korean KCC, Taiwan BSMI, Japan VCCI, and FCC Class B, and is marked with the FCC
Self-Certification logo. The board also meets the requirements of CISPR Class B.
6.1 Electrical Characteristics
The maximum power requirements for the LSI SAS 9201-16i HBA under normal operation are as follows:
 PCIe 12.0 V = 2.08 A
 Power
— Nominal = 12.92 W
— Worst case = 24.94 W
 Operation range = 0 °C to 55 °C (32 °F to 131 °F)
LSI SAS 2116
EC1
J5
3_00201-01
J9
Port D
Port C
Port B
Port A
J8
J7
J6
J1
J4
