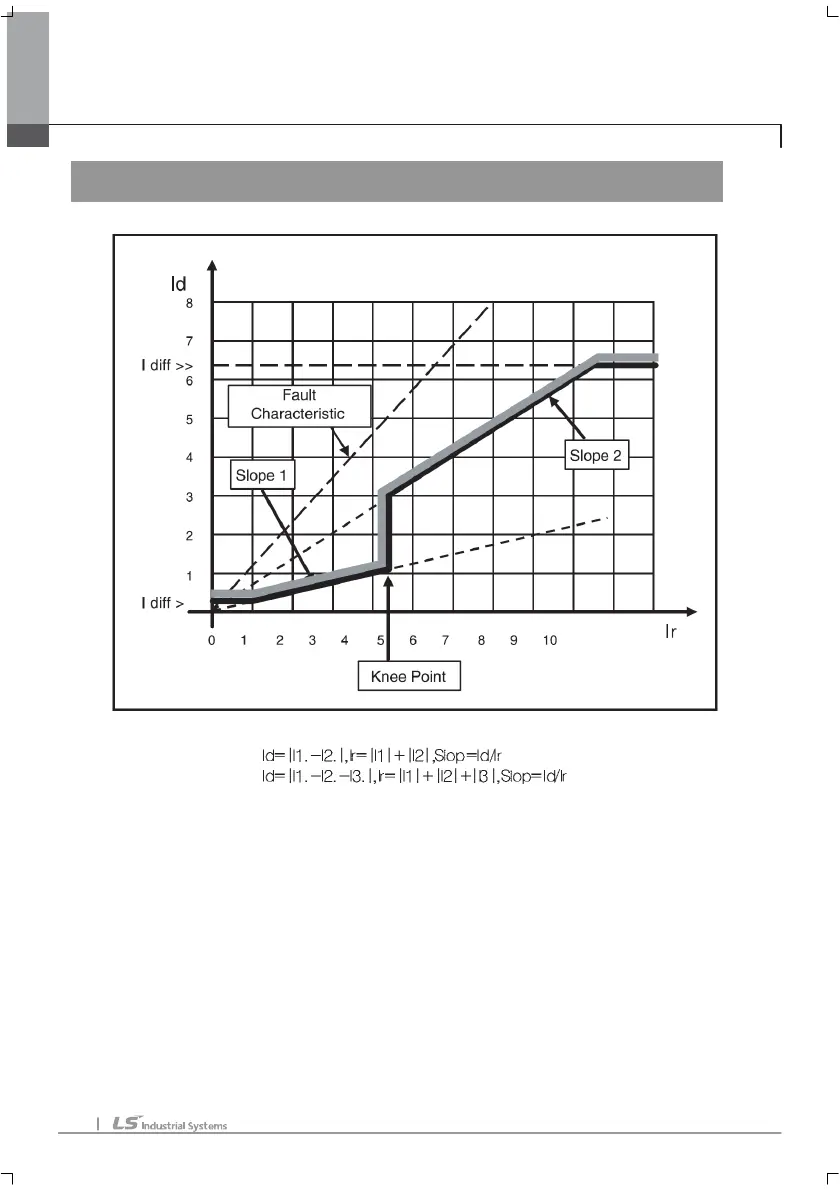

GIPAM2000
–
T
characteristic
curve
(2 wiring) :
(3 wiring) :
※ Time delay I diff range(0.02~1.0In /0.01In)
Time delay Operation time range (0.05~10.00s / 10ms)
Slop1 range (0.15~1.00 / 0.01)
Knee Point range (1.0~20.0In / 0.1In)
Slop2 range (0.15~1.00 / 0.01)
Instantaneous I diff range(2.0~32.0In / 1.0In)
2th harmonic distortion tolerance range (5~50% / 1%)
INRUSH LOCK TIME range (0.02~60S / 0.01S)
※
I1, I2, I3 displayed at
Vector
