LSIS GIPAM 2000 - Handling Method

12

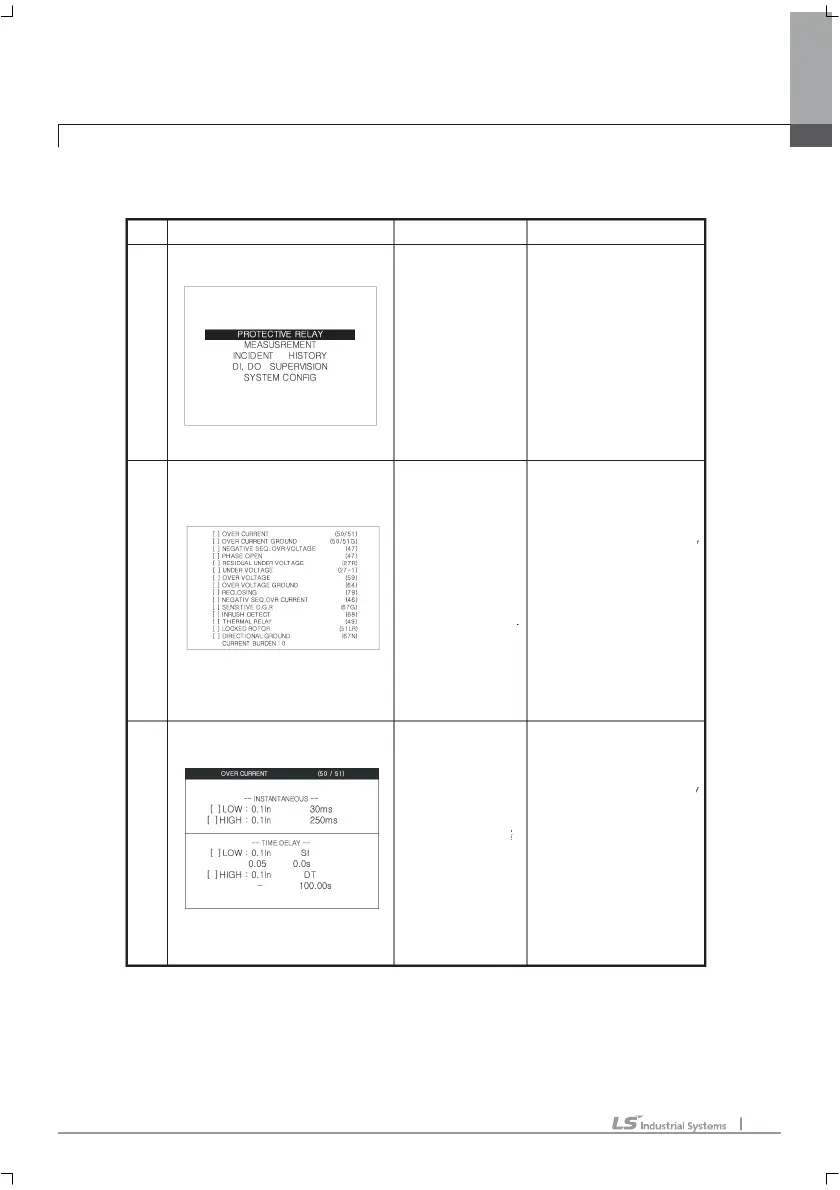

② Menu movement and operations of key.
1
11
1.
. .
. MMI
MMIMMI
MMI
M
E
N
U
L
O
W
E
R
M
E
N
U
D
E
T
A
I
L
The primary menu
of GIPAM.
This menu is the
top menu.
This menu displays
the available relay
elements. Y
ou can set
the on/off of the each
relay elements.
You can set up the
detail value setting
each relay on this
menu.
Moving up/down :
Up, down directional
Key.
Moving to lower menu:
Select the menu user
wants and put the enter
key.
Moving menu to menu:
Up, down directional key
Moving to top menu: cancel key
Moving to detail setting menu:
Select the menu user want and
put the enter key.
Select the on/off of relay elements:
Select the relay elements and put
the left/right key.
Moving menu to menu:
Left/right directional key
Moving to upper menu: cancel key
Change the setting values:
Select the menu user want and
put the up/down key.
Save the changed: F2
Set the trip assign LED:F4.
DISPLAY
EXPLAN
HANDLING METHOD
