S100/H100 Conduit Option Installation Manual
3.3 S100 30~75kW

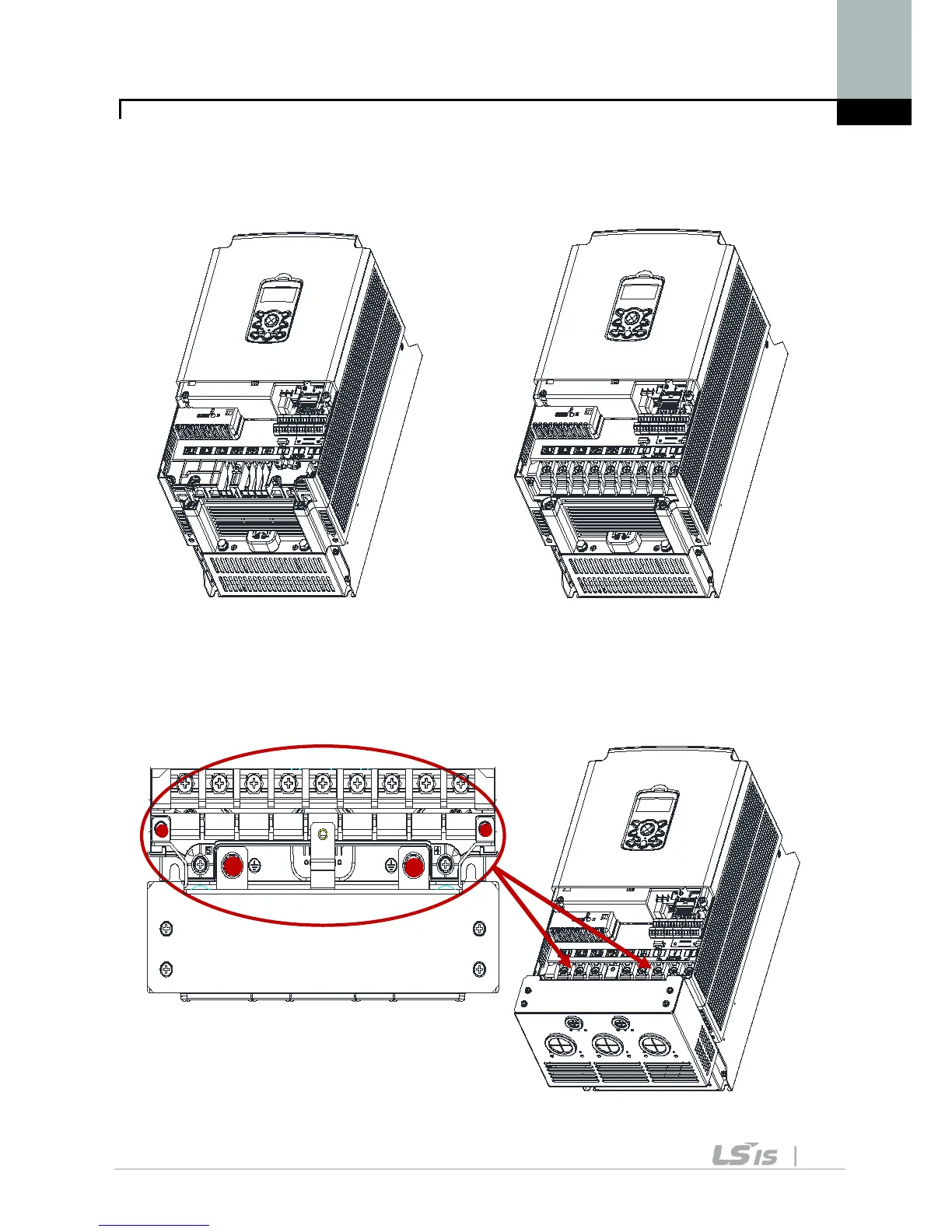

① Remove the Power cover and cable guide of the product as shown in the Figure 7.
Figure 7. Remove Power Cover and CABLE Guide
② Fasten the Conduit Option to fit on the ground terminals and both ends (4points) of the product using the
prescribed bolt as shown in the Figure 8.
Figure 8. Install
