LTS Scale DR2100A - MAIN PC BOARD LAYOUT

LTSscale.com Page 9 of 28 REV F – 2018.04.09
LTS DR2100A/AN Indicator
MAIN PC BOARD LAYOUT
Figure: 2

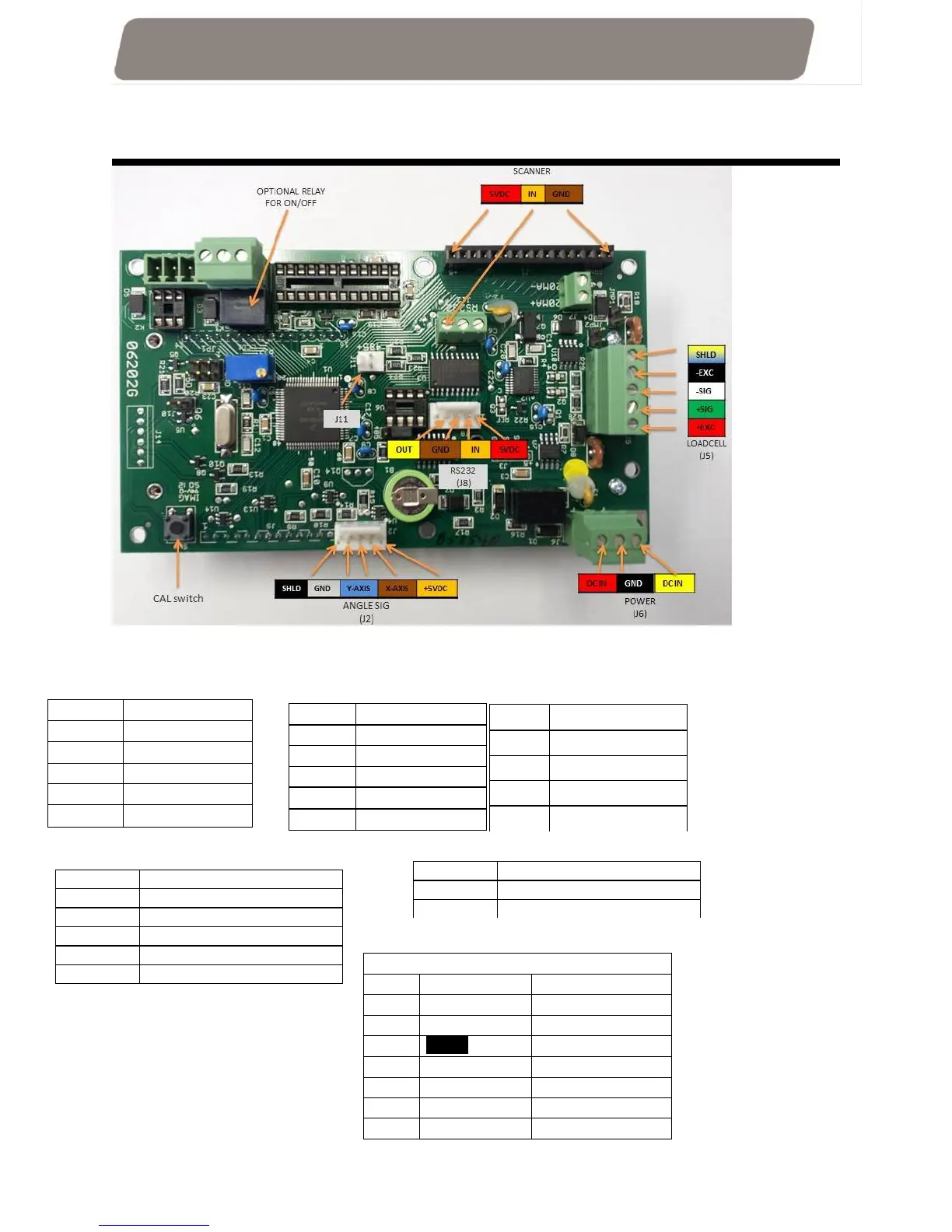

Main Board Layout (P# P10014)
Connector Pin Outs - Main Board
J11 Pin
RS485
1
485+
2
485-
J5 Pin
LOAD CELL
1
+EX
2
+SIG
3
-SIG
4
-EX
5
SHIELD
J6
Power Pin
1
+DC IN, 12 VDC
2
GND
3
GND
4
+DC IN, 12 VDC
J2 Pin
Clino Inputs
1
+5 VDC
2
X-axis
3
Y-axis
4
GND
5
SHIELD
J8 Pin
RS232
1
PA6 (TTL INPUT)
2
RS232 OUT
3
GND
4
RS232 IN
5
+5VDC
NTEP LC Cable– Black Coiled Cord
Pin
Color
Description
1
Red
+ Excitation
2
Green
+ Signal
3
White
- Signal
Shield
Shield
5
Brown
X Axis
6
Black
- Excitation
7
Blue
Y Axis
