User Manual of Network Video Recorder
160

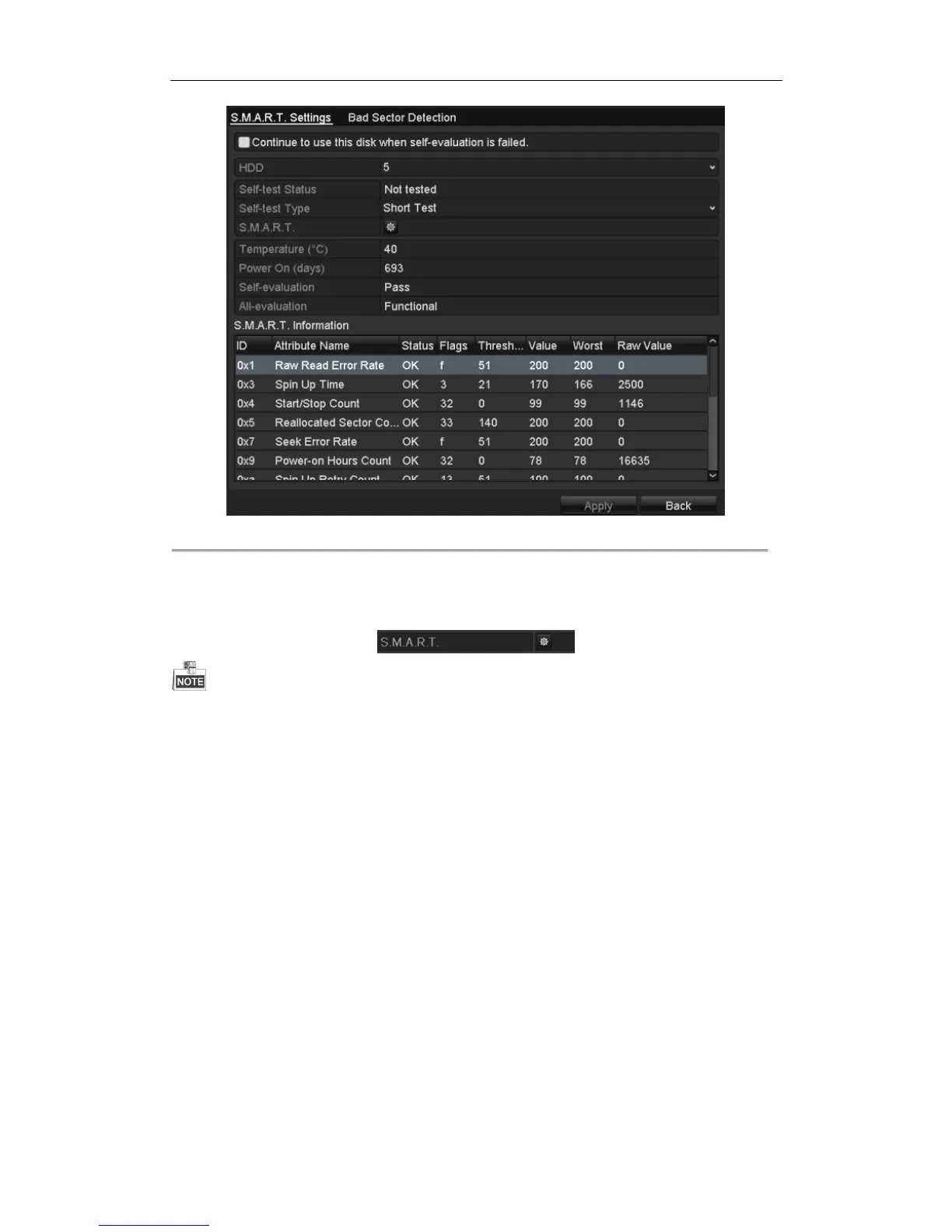

Figure 12. 27 S.M.A.R.T Settings Interface
The related information of the S.M.A.R.T. is shown on the interface.
You can choose the self-test types as Short Test, Expanded Test or the Conveyance Test.
Click the start button to start the S.M.A.R.T. HDD self-evaluation.
If you want to use the HDD even when the S.M.A.R.T. checking is failed, you can check the checkbox of the
Continue to use the disk when self-evaluation is failed item.
Bad Sector Detection
Steps:
1. Click the Bad Sector Detection tab.
2. Select the HDD No. in the dropdown list you want to configure, and choose All Detection or Key Area
Detection as the detection type.
3. Click the Detect button to start the detection.
