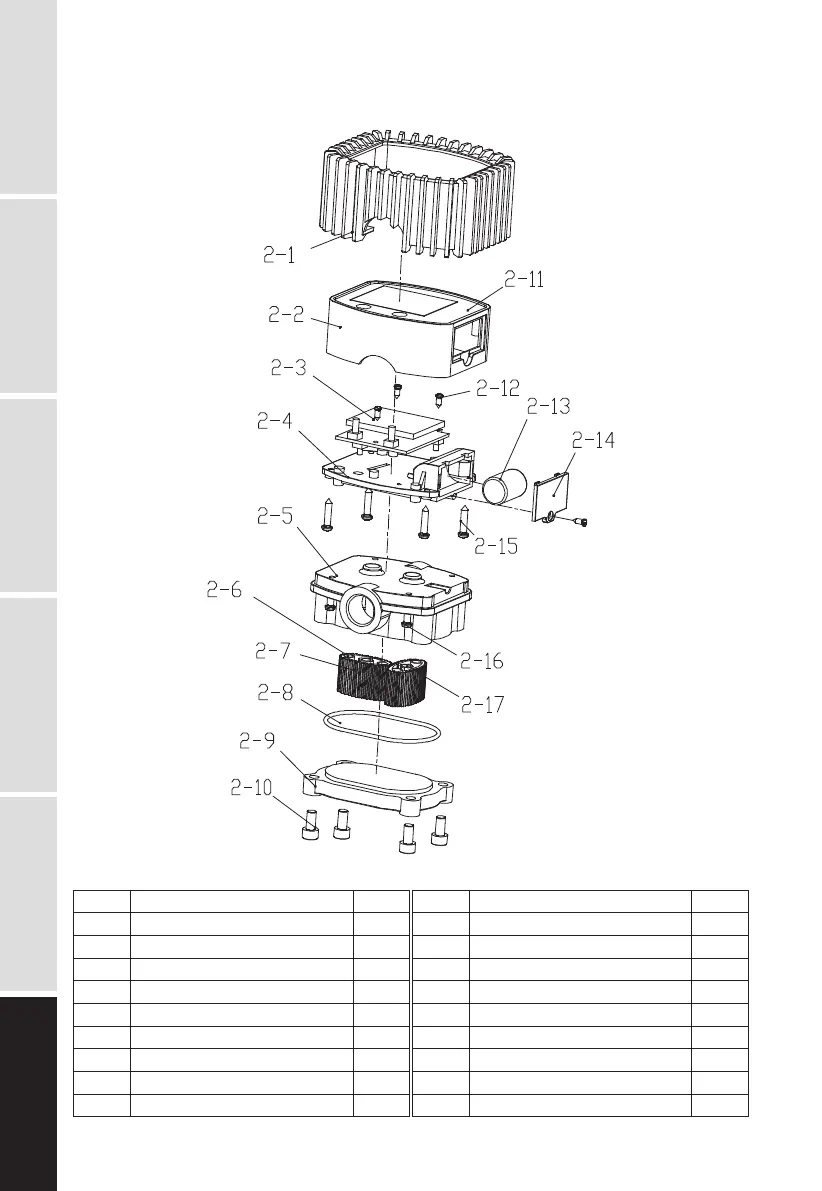

Lubeworks 18063521 - Meter Exploded View

EXPLODED AND PARTS LIST
#15210601
Part No.
2-1
2-2
2-3
2-4
2-5
2-6
2-7
2-8
2-9
Description
Rubber Protector
Meter Cover
Main Circuit Board
Fix Board
Seat
Magnetic Rod
Oval Gear
O-ring
Meter Holder
Q’ty
1
1
1
1
1
2
2
1
1
Part No.
2-10
2-11
2-12
2-13
2-14
2-15
2-16
2-17
Description
Screw
Label
Screw
Battery
Battery Cover
Screw
Screw
Shaft
Q’ty
4
1
4
1
1
4
4
2
