USAGE INSTRUCTION
(1) Start:
Turn on the trigger to make the oil transmission.
(2) Keep the status:
Push the lock ahead, then the transmission can be
kept when the trigger is released.
(3) Finish:
a. If the lock is not used, release your hand, the trigger
will turn off and finish the transmission.
b. If the lock is used, please turn on the trigger once
again, the lock will stop working.
Then turn off the trigger, release your hand,
the transmission will be finished.
Notes When Using:
Cautions:
1. For working condition, please refer to the specification parameter list. Temperature:
-10ºC~60ºC
2.Medium: Lubricant Oil,.

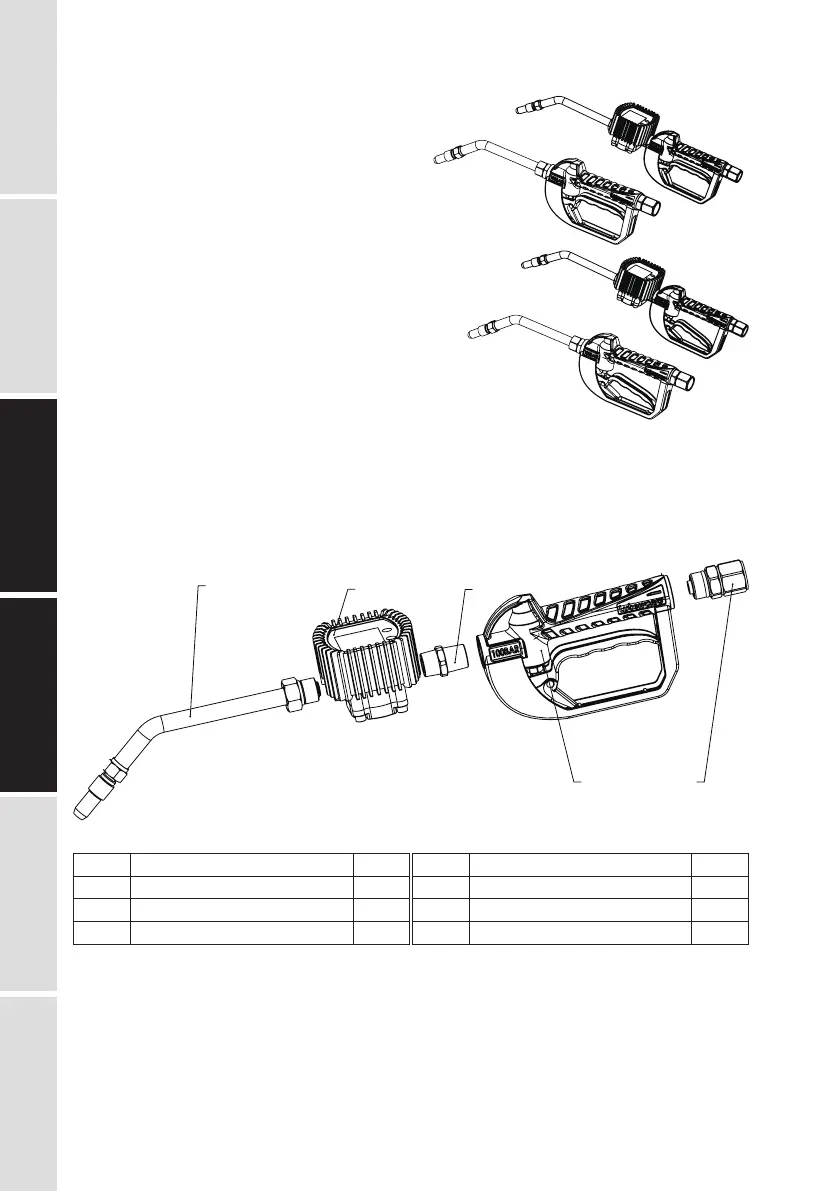

OIL CONTROL VALVE EXPLORED DRAWING
MAINTENANCE
If any problem, please contact your local service centre.
Part No.
1
2□
3□
Description
Spout
Meter
Adapter
Q’ty
1
1
1
Part No.
4
5
Description
Handle Body
Swivel Fitting
Q’ty
1
1
Note：□digital oil control valve part
E6
TECHNICAL
DETAILS
EXPLODED AND
PARTS LIST
INSTALLATIONMAINTENANCE
DETAILS OF
OPERATION
TROUBLE
SHOOTING GUIDE
1
2
3
4 5
To Next Page
