Lubeworks 18063521 - Valve Body Exploded View

EXPLODED AND PARTS LIST

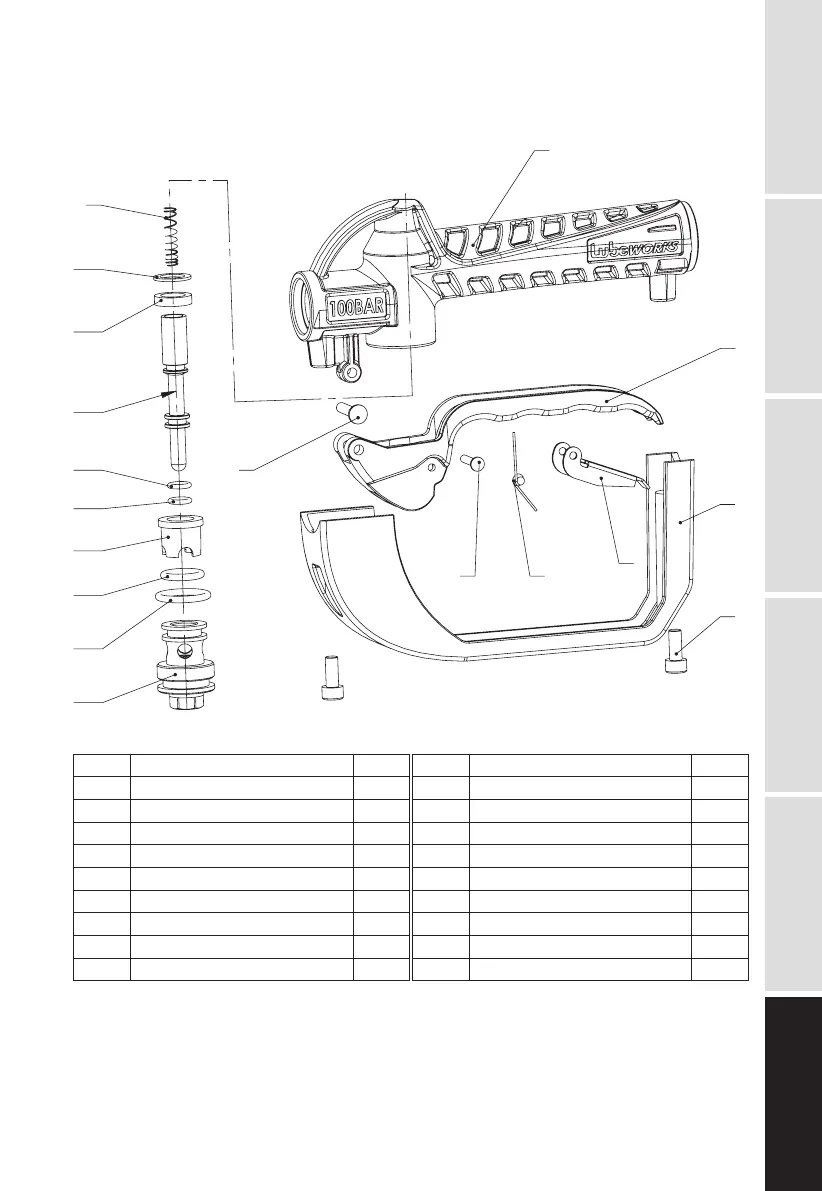

VALVE BODY EXPLORED DRAWING
Part No.
4-1
4-2
4-3
4-4
4-5
4-6
4-7
4-8
4-9
Description
Handle Body
Trigger
Grip
Screw
Trigger Lock
Clip
Pin
Pin
Spring
Q’ty
1
1
1
2
1
1
1
1
1
Part No.
4-10
4-11
4-12
4-13
4-14
4-15
4-16
4-17
4-18
Description
Washer
Seal
Slip Pole
O Ring
O Ring
Bushing
O Ring
O Ring
Piston Sleeve
Q’ty
1
1
1
1
1
1
1
1
1
E9
TECHNICAL
DETAILS
EXPLODED AND
PARTS LIST
INSTALLATIONMAINTENANCE
DETAILS OF OPERATION
TROUBLE
SHOOTING GUIDE
4-1
4-2
4-3
4-4
4-5
4-64-7
4-8
4-9
4-10
4-11
4-12
4-13
4-15
4-16
4-17
4-18
4-14
