Lubing Top Climate System - Plunger Pump Diagram and Parts List

Anhang: Kolbenpumpe Apendix: Plungerpump
LUBING Top Klima System - 45 - LUBING Top Climate System

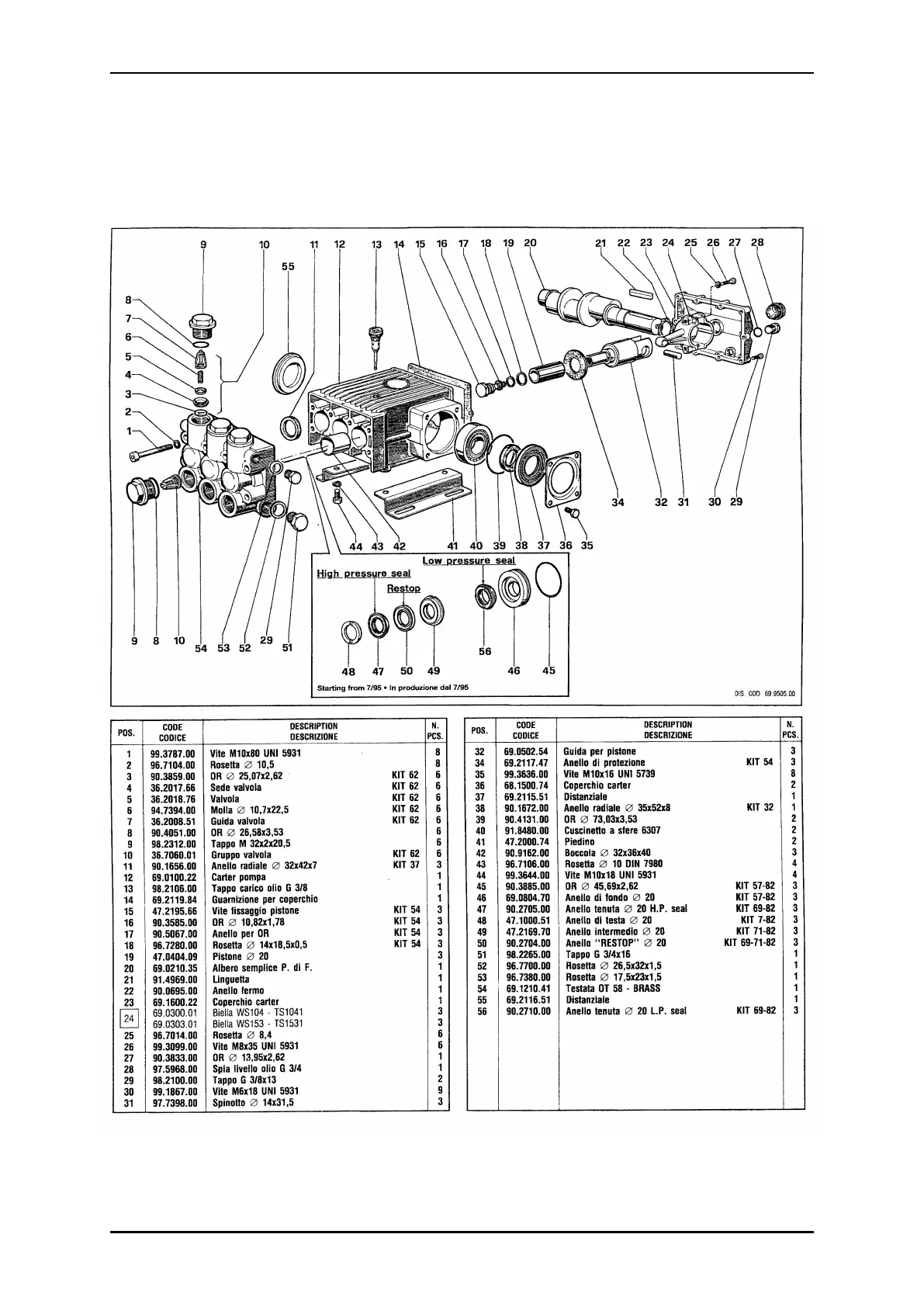

Bildtafel u. Ersatzteilliste Kolbenpumpe R-1041/21
Picture and spare part list Plungerpump 2R-1041/21
R-1041/30
2R-1041/30
Screw
Washer
O-Ring
Valve seat
Valve
Pin
Valve support
O-ring
Srew
Valve
Sealing
Pump housing
Oil Screw
Cover
Pistom screw
O-ring
Tension ring
Washer
Piston
Cranc shaft
Parallel key
Sealing
Housing
Pleuel
Pleuel
Washer
Screw
O-ring
Oil Screw
Screw
Screw
Pin
Piston support
Piston sealing
Screw
Cover
Distance ring
Sealing ring
O-ring
Bearing
Mounting support
Piston shaft
Washer
Screw
O-ring
Sealing
HP Sealing
Sealing
Sealing
Restop
Screw
Washer
Washer
Head
Distance ring
LP Sealing
