Installation Instructions
2 | Page
Before carrying out the installation the following must be considered:
- 2 x AAA 1.5V (size) batteries are required to operate the remote control. Remove the battery cover from the
back of the remote and insert 2 x AAA. Ensure the polarities are correct as shown in the battery compartment.
(Batteries not included)
- The remote (transmitter) and receiver must be configured so that communication between each other is paired
up. This is achieved by setting the DIP Switch on the receiver and remote on the same setting.
Note: The DIP switch assembly has 4 switches which can be setup to 16 different transmitting code
combinations. This is practical when there is more than 1 remote/receiver pair operating locally or in the same
room.
Note: To access the receiver DIP switches, remove the DIP Switch cover.

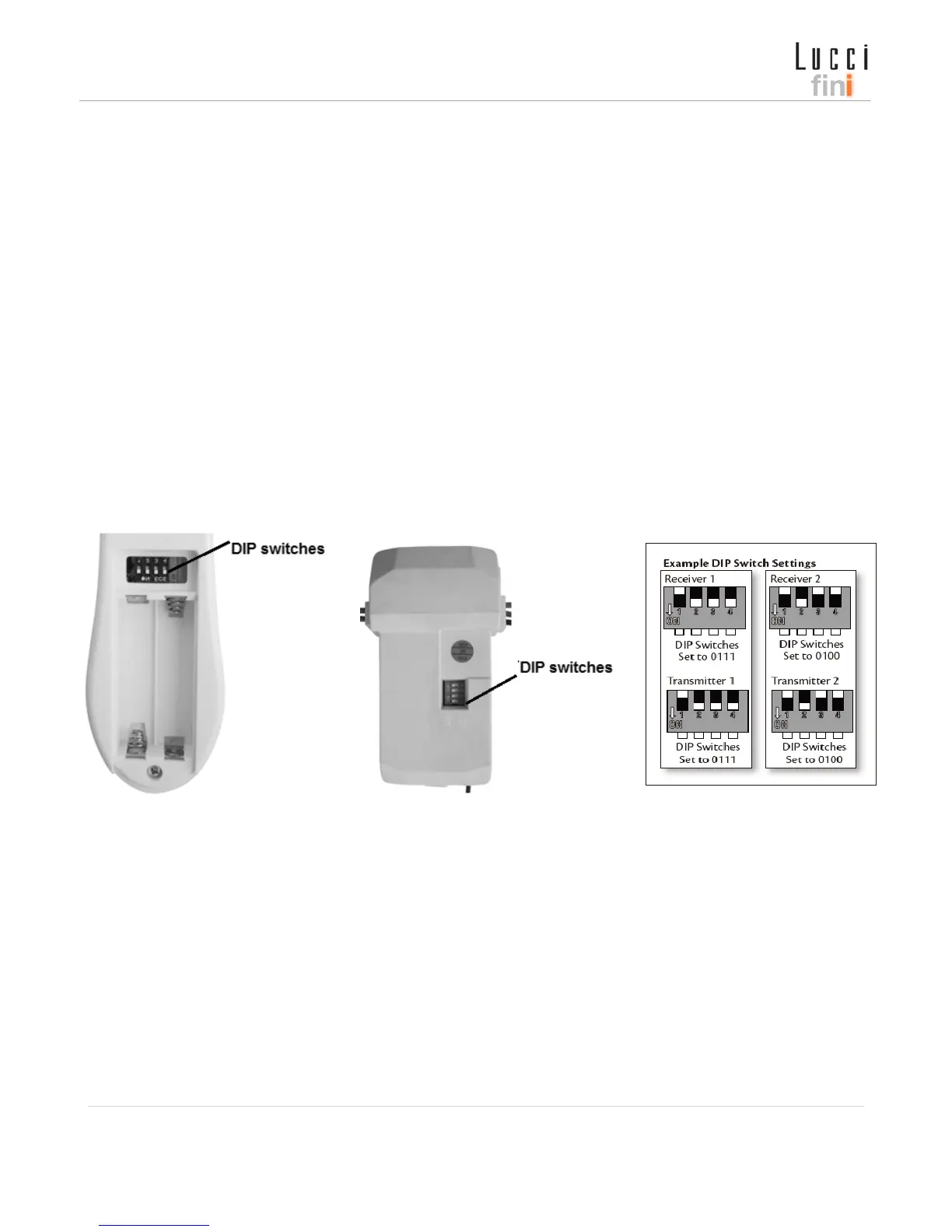

Fig. 1 Remote battery compartment Fig. 2 Receiver DIP switch
