LUCCI WHITEHAVEN - Installation Steps; Parts List

Whitehaven Fan Installation Instructions
3 | P a g e
PARTS LIST
• Unpack your ceiling fan carefully. Remove all parts and hardware.
• Lay out all the components on a smooth surface and make sure there are no components missing before
assembling. If parts are missing, return the complete product to the place of purchase for inspection or
replacement.
• Check whether the ceiling fan has been damaged during transport. Do not operate/install any product
which appears damaged in any way. Return the complete product to the place of purchase for inspection,
repair or replacement.
• Examine all parts, you should have the following:
FAN WITH LIGHT
FAN WITHOUT LIGHT
1.
Mounting bracket x 1
1.
Mounting bracket x 1
2.
Fan assembly with motor housing, down
rod, canopy cover, light kit and canopy x 1
2.
Fan assembly with motor housing, down rod,
canopy cover and canopy x 1
3.
Globe x 1
3.
Blade x 3
4.
Blade x 3
4.
DC motor driver receiver x 1
5.
Light extension wire for long down rod x 1
5.
Remote transmitter with holder x 1 set
6.
Remote transmitter with holder x 1 set
6.
Balancing kits x 1 set
7.
DC motor driver receiver x 1
7.
Screw for mounting bracket x 2
8.
Balancing kit x 1 set
8.
Blade screw x 9 (and 1 spare)
9.
Screw for mounting bracket x 2
10.
Blade screw x 9 (and 1 spare)

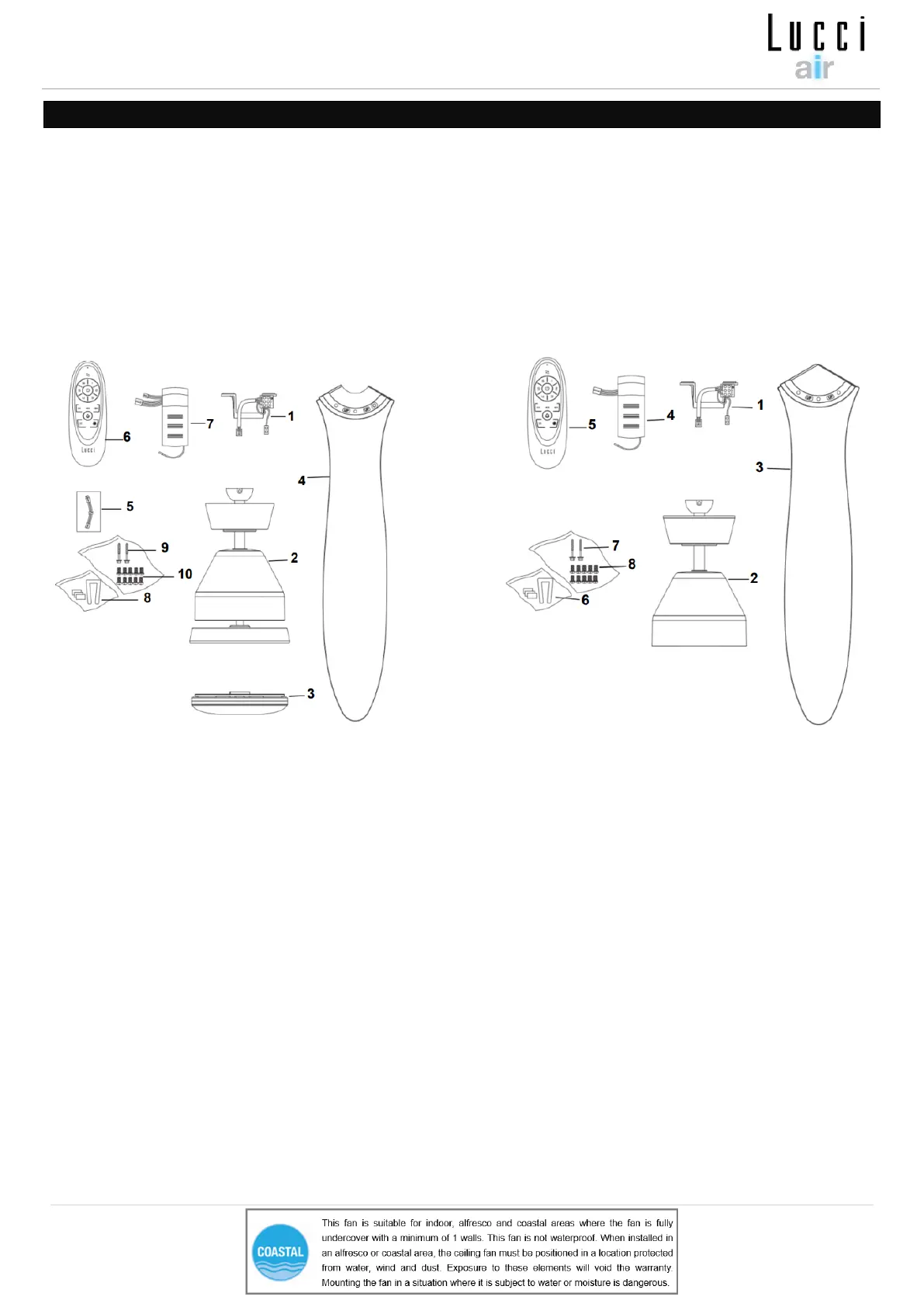

Fig. 1
