Lumantek ez-HSV+ User Manual

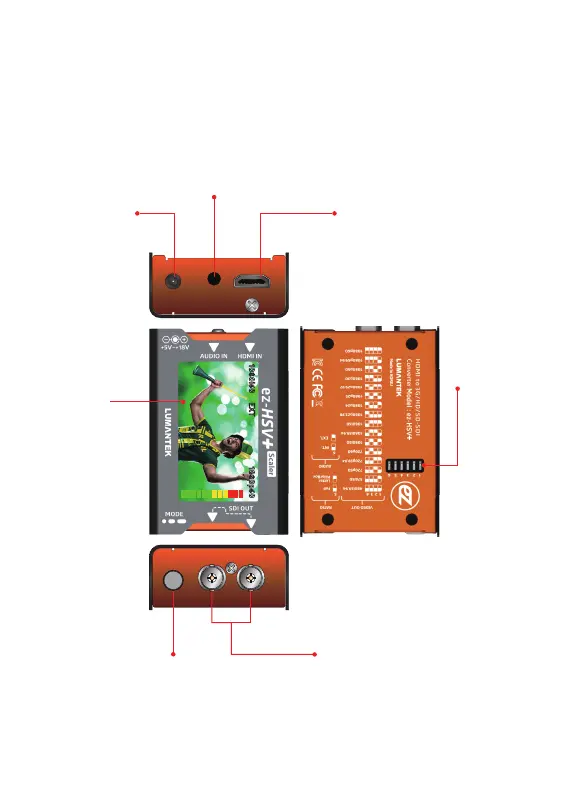

02. Product Interface
HDMI IN
HDMI Video Input Port
DC Input
DC Power Input
+5V to +18V
DIP Switch
DIP Switch
6 Position for
Mode Setting
MODE
LCD Menu Setting Switch
SDI OUT
SDI Video Output Port
AUDIO In
Analog Audio Input Port
System Information
LCD
2.7inch
TFT LCD
1080p601080i60 EXT

Lumantek ez-HSV+ Specifications

Video Input

analog audio input	Stereo Jack x1
hdmi video input	SD/ HD/ 3G (HDMI Type A) x 1
video formats	720x480i@59.94/60, 720x576i@50, 1280x720p@50/59.94/60, 1920x1080i@50/59.94/60, 1920x1080p@23.94/24/25/29.97/30, 1920x1080p@50/59.94/60

Video Output

sdi video output	SD/HD/3G-SDI (BNC 75Ω) x1
video formats	720x480i@59.94, 720x576i@50, 1280x720p@50, 1280x720p@59.94, 1280x720p@60, 1920x1080i@50, 1920x1080i@59.94, 1920x1080i@60, 1920x1080p@23.98, 1920x1080p@24, 1920x1080p@25, 1920x1080p@29.97, 1920x1080p@30, 1920x1080p@50, 1920x1080p@59.94, 1920x1080p@60

Connections

power connection	DC Power Input (DC Jack) x1
dip switch	(6 Pole) x1 Video In/Out Resolution, Video Output Ratio, Audio(INT. or EXT.)
mode switch	(Push Switch) x1 LCD ON/OFF, Menu Selection

Display

display type	2.7 inch TFT LCD
display features	Input Video Display, In/Output Video Resolution Display, Input Audio Level Meter Display

Electrical

power input	DC +5V to +18V
power consumption	4W(max.)
operation temperature	0~45℃

Physical Characteristics

dimensions	86.3x57.2x26.6 (include connector)
weight	0.66lbs (0.3 kg)(typ.)
