Lumantek ez-HSV+ User Manual

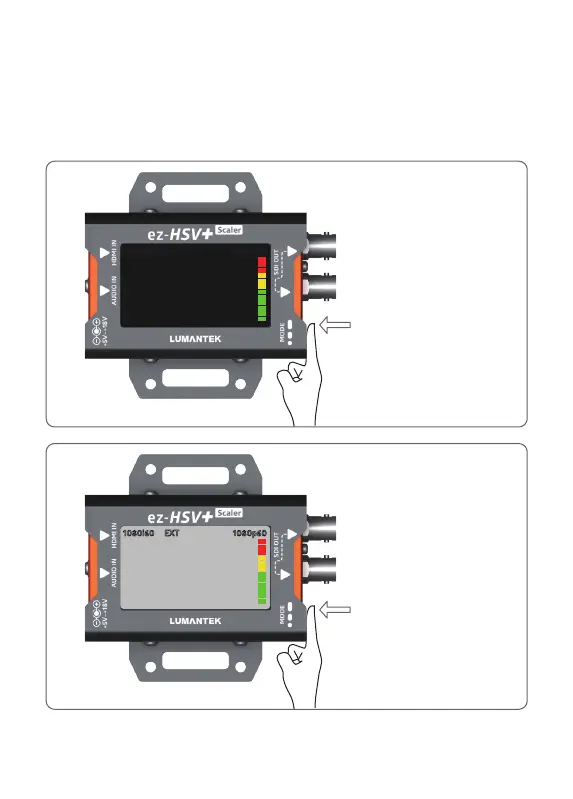

① LCD Backlight brightness control (Dark or Bright)
Turns dark when pressing
for less than 1 second
Turns bright when pressing
for less than 1 second
02. Product Interface
MODE Switch Settings
1080p601080i60 EXT
1080p601080i60 EXT

Lumantek ez-HSV+ Specifications

Video Input

analog audio input	Stereo Jack x1
hdmi video input	SD/ HD/ 3G (HDMI Type A) x 1
video formats	720x480i@59.94/60, 720x576i@50, 1280x720p@50/59.94/60, 1920x1080i@50/59.94/60, 1920x1080p@23.94/24/25/29.97/30, 1920x1080p@50/59.94/60

Video Output

sdi video output	SD/HD/3G-SDI (BNC 75Ω) x1
video formats	720x480i@59.94, 720x576i@50, 1280x720p@50, 1280x720p@59.94, 1280x720p@60, 1920x1080i@50, 1920x1080i@59.94, 1920x1080i@60, 1920x1080p@23.98, 1920x1080p@24, 1920x1080p@25, 1920x1080p@29.97, 1920x1080p@30, 1920x1080p@50, 1920x1080p@59.94, 1920x1080p@60

Connections

power connection	DC Power Input (DC Jack) x1
dip switch	(6 Pole) x1 Video In/Out Resolution, Video Output Ratio, Audio(INT. or EXT.)
mode switch	(Push Switch) x1 LCD ON/OFF, Menu Selection

Display

display type	2.7 inch TFT LCD
display features	Input Video Display, In/Output Video Resolution Display, Input Audio Level Meter Display

Electrical

power input	DC +5V to +18V
power consumption	4W(max.)
operation temperature	0~45℃

Physical Characteristics

dimensions	86.3x57.2x26.6 (include connector)
weight	0.66lbs (0.3 kg)(typ.)
